WAGO connection kit compatible with 3x cord for 11-hole ceiling canopy

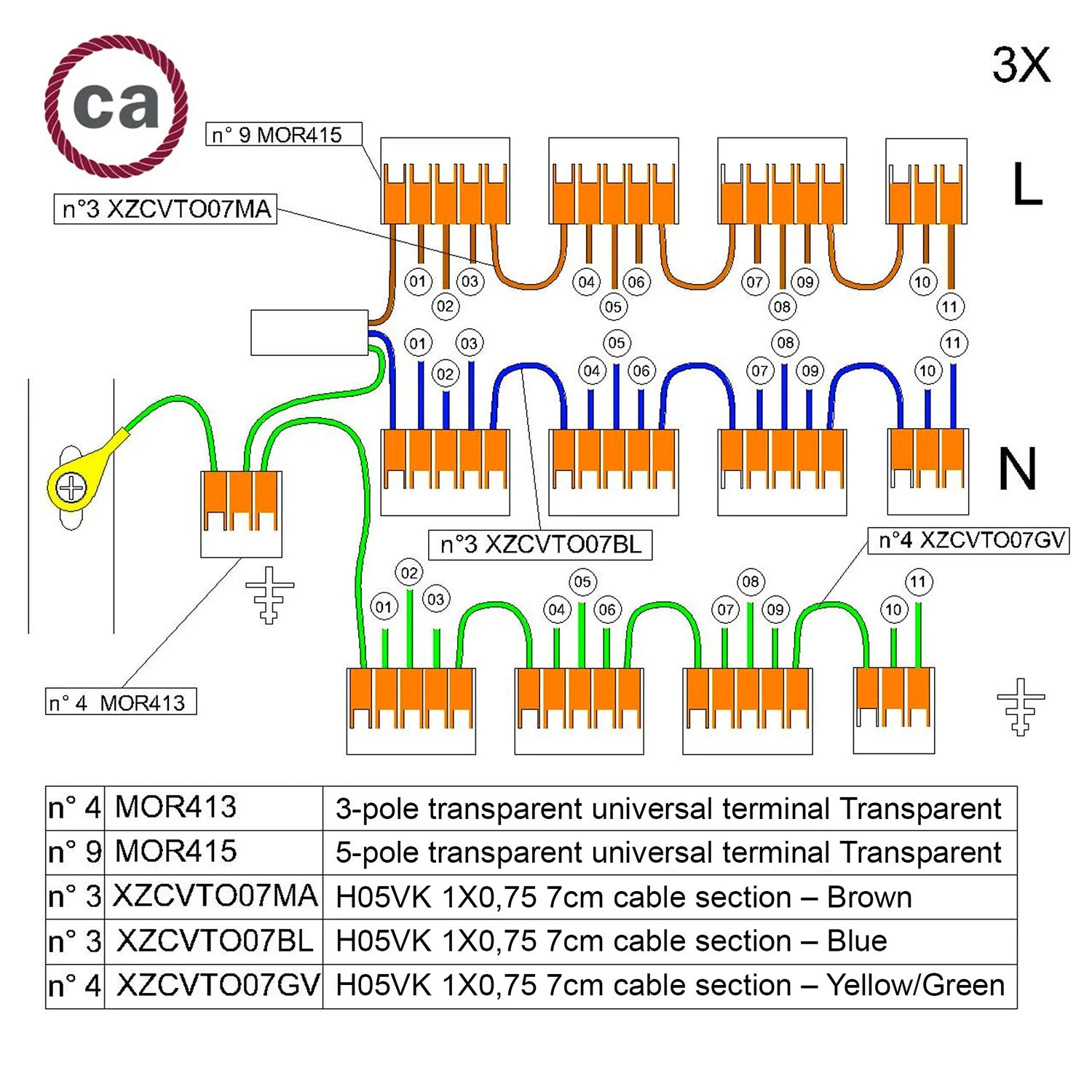

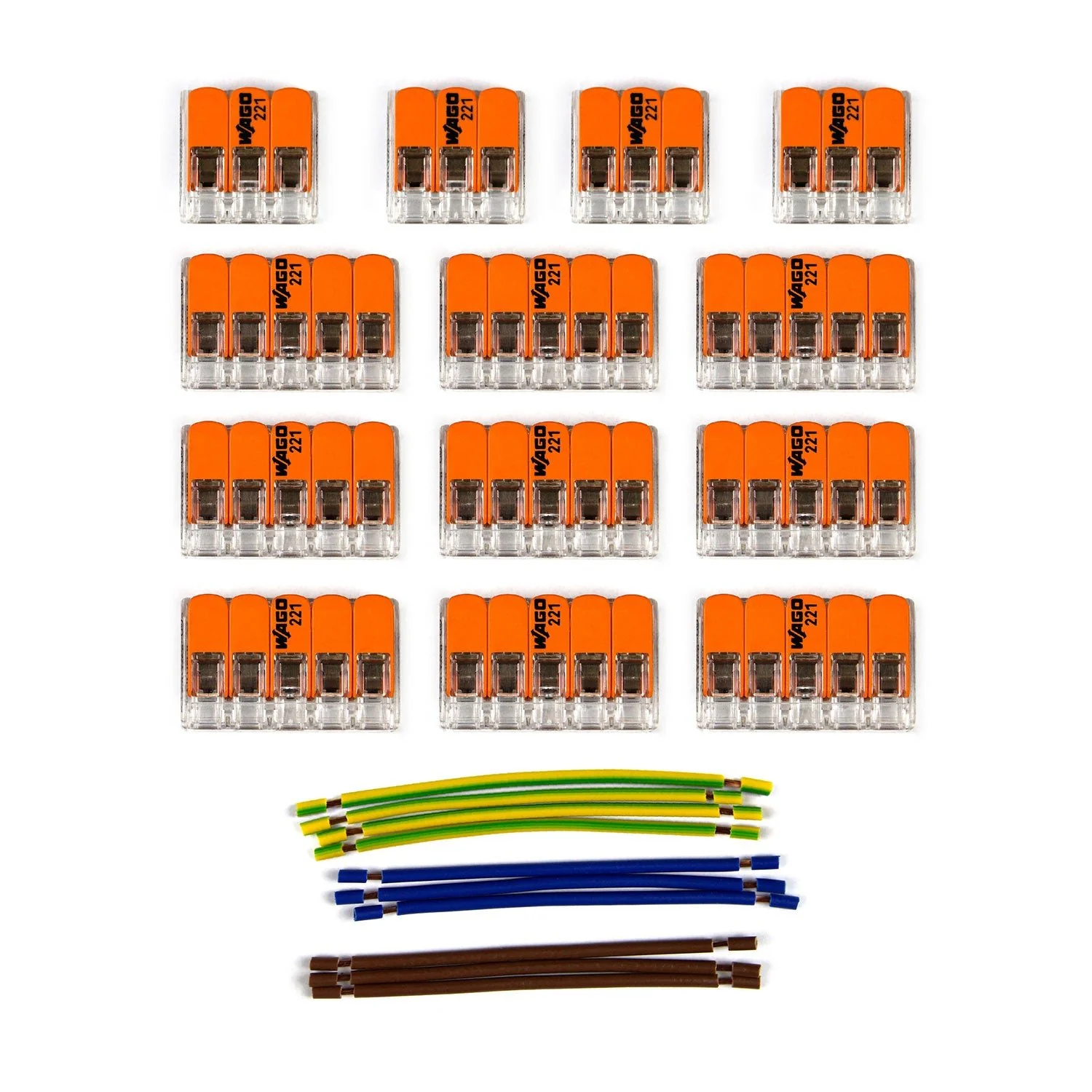

Accessory kit for 11-hole ceiling canopy cordset. The kit includes:
- 9 universal transparent 5-way connectors
- 4 universal transparent 3-way connectors
- 10 single-core cord pieces useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded wires
9 connectors - Number of entries: 5
4 connectors - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
3 brown single-core cord pieces: 7 cm
3 blue single-core cord pieces: 7 cm
4 green single-core cord pieces: 7 cm
Accessory kit for 11-hole ceiling canopy cordset. The kit includes:
- 9 universal transparent 5-way connectors
- 4 universal transparent 3-way connectors
- 10 single-core cord pieces useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded wires
9 connectors - Number of entries: 5
4 connectors - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
3 brown single-core cord pieces: 7 cm
3 blue single-core cord pieces: 7 cm
4 green single-core cord pieces: 7 cm
