WAGO connection kit compatible with 2x cord for 4-hole ceiling canopy

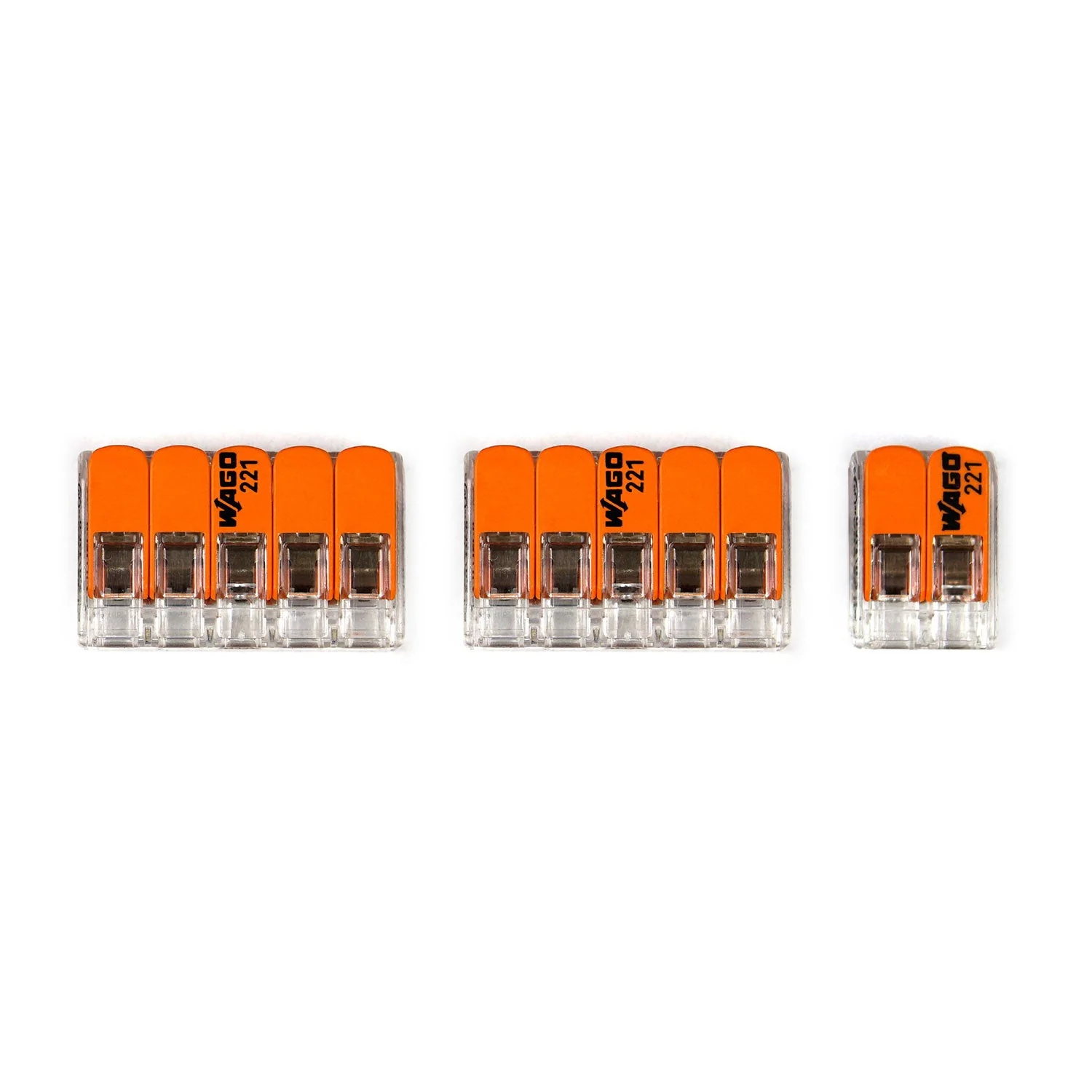

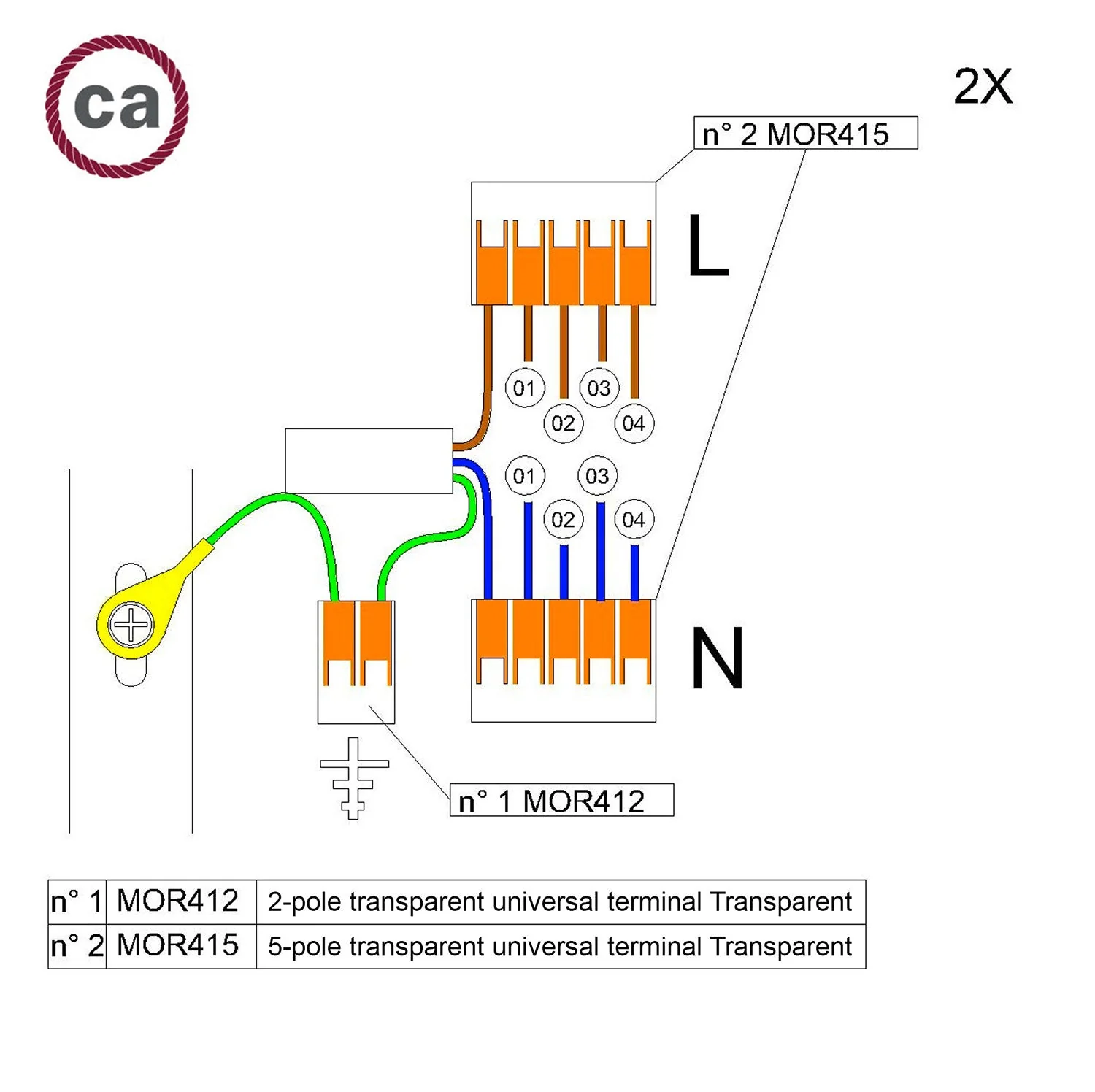

Accessory kit for ceiling canopy cordset wiring with 4 holes. The kit includes two universal transparent 5-entry terminal blocks and one universal transparent 2-entry terminal block.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
Accessory kit for ceiling canopy cordset wiring with 4 holes. The kit includes two universal transparent 5-entry terminal blocks and one universal transparent 2-entry terminal block.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
Description
Accessory kit for ceiling canopy cordset wiring with 4 holes. The kit includes two universal transparent 5-entry terminal blocks and one universal transparent 2-entry terminal block.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
