WAGO connection kit compatible with 3x cord for 4-hole ceiling canopy

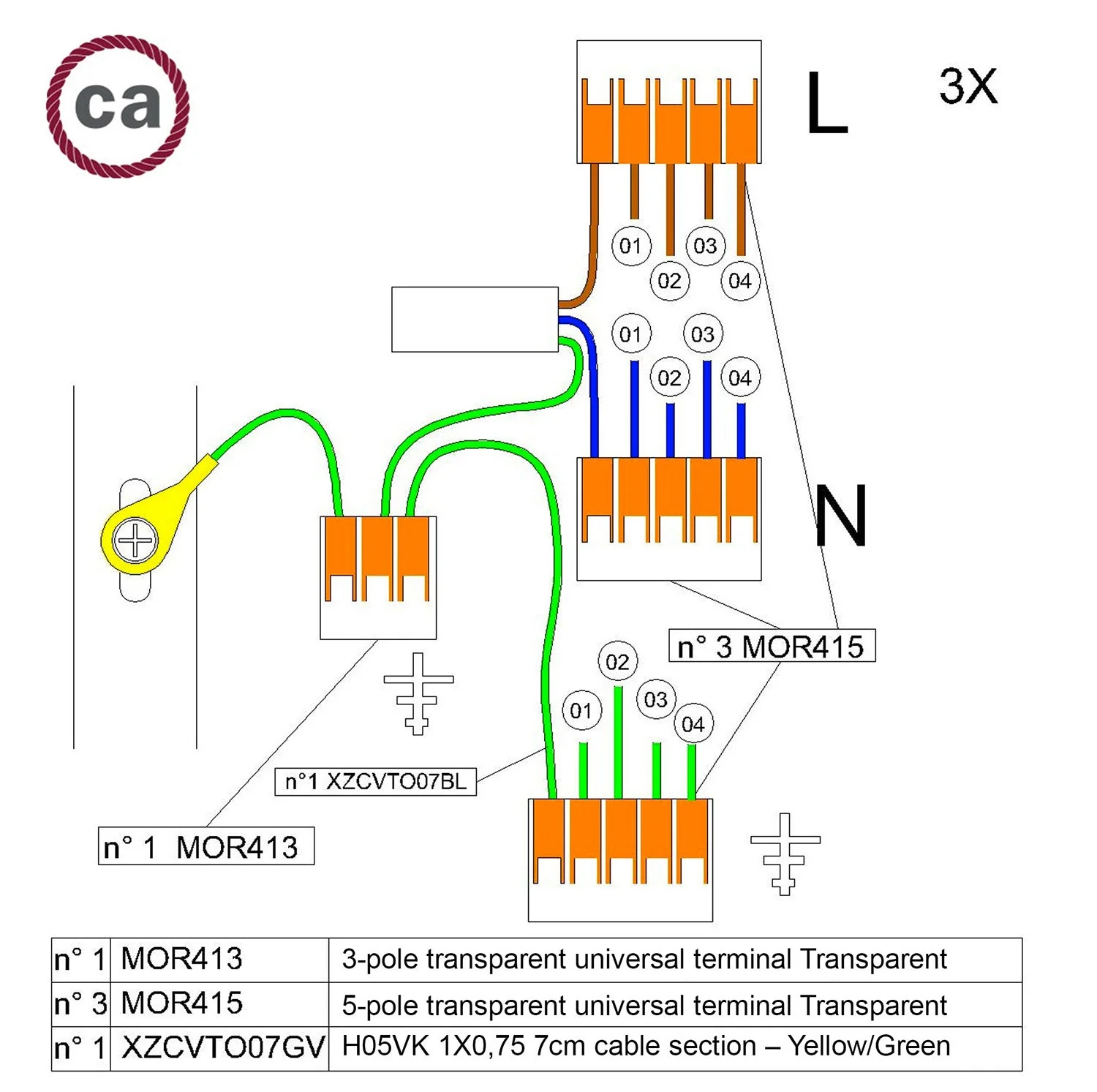

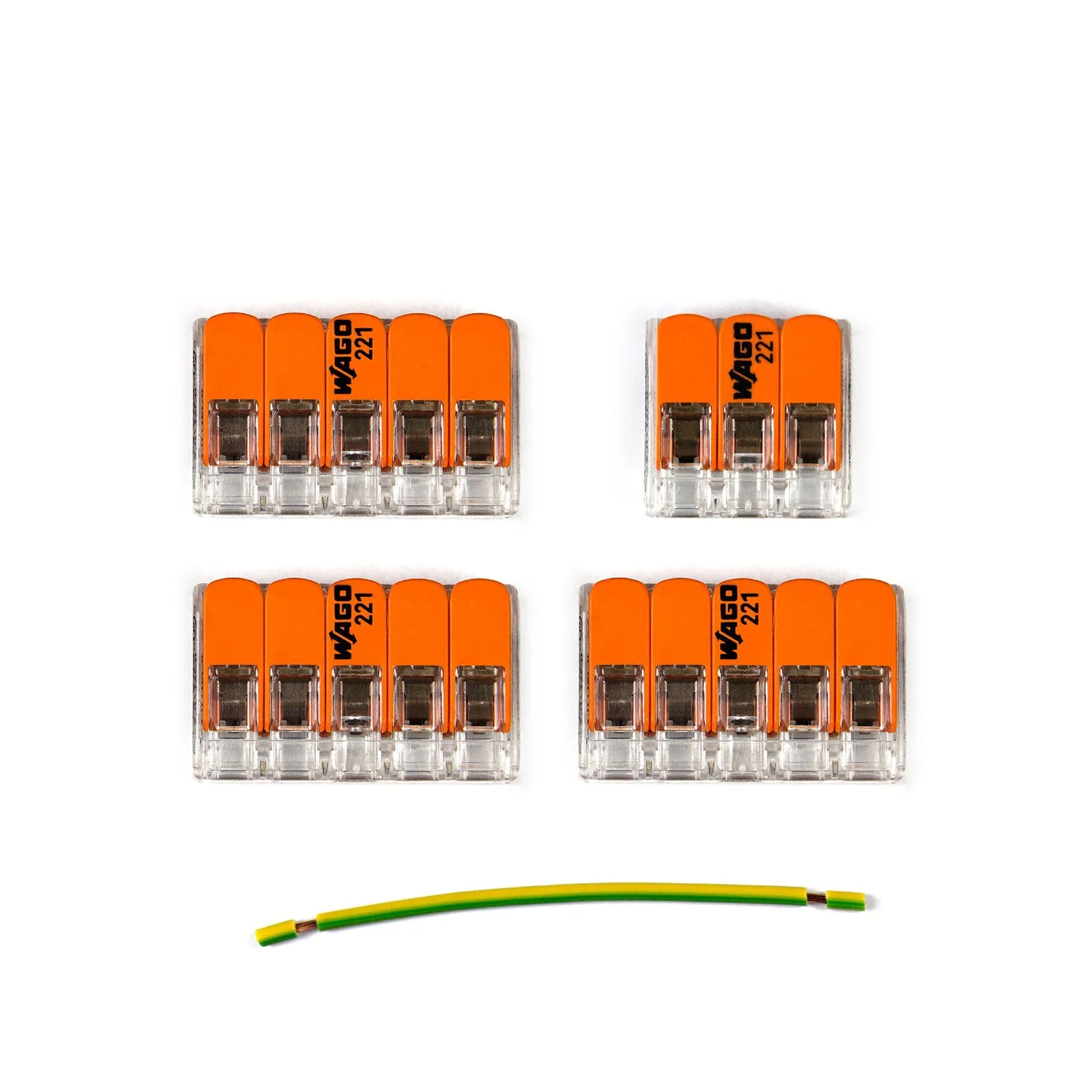

Accessory kit for 4-hole ceiling canopy cordset wiring. The kit includes:
- 3 universal 5-entry transparent terminal blocks
- 1 universal 3-entry transparent terminal block
- 1 piece of cord to use as an interconnection bridge
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cords
3 connectors - Number of entries: 5
1 connector - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
1 piece of single-core green cord: 7 cm
Accessory kit for 4-hole ceiling canopy cordset wiring. The kit includes:
- 3 universal 5-entry transparent terminal blocks
- 1 universal 3-entry transparent terminal block
- 1 piece of cord to use as an interconnection bridge
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cords
3 connectors - Number of entries: 5
1 connector - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
1 piece of single-core green cord: 7 cm
Description
Accessory kit for 4-hole ceiling canopy cordset wiring. The kit includes:
- 3 universal 5-entry transparent terminal blocks
- 1 universal 3-entry transparent terminal block
- 1 piece of cord to use as an interconnection bridge
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cords
3 connectors - Number of entries: 5
1 connector - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
1 piece of single-core green cord: 7 cm
