WAGO connection kit compatible with 2x cord for 9-hole ceiling canopy

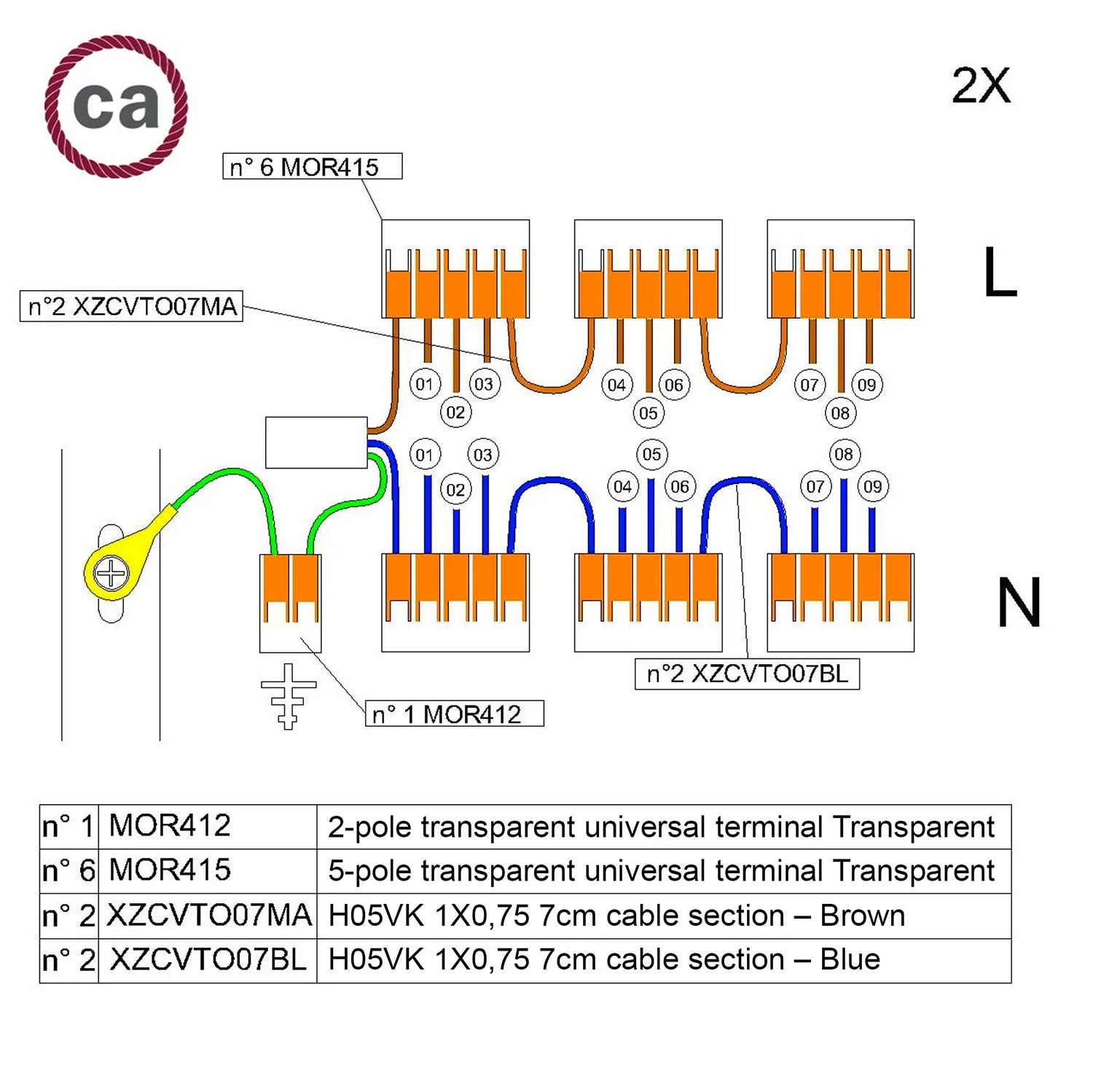

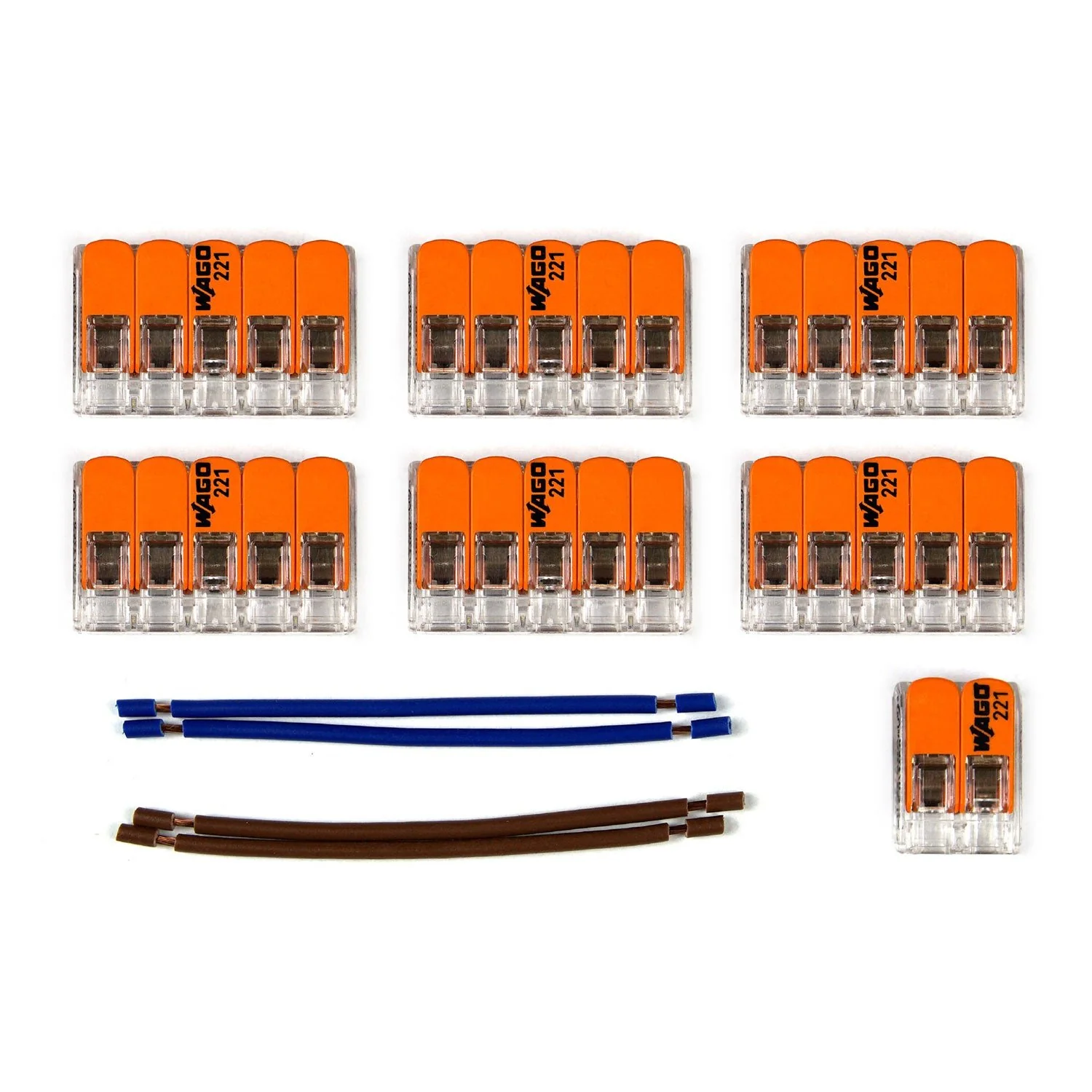

Accessory kit for 9-hole ceiling canopy cordset. The kit includes:
- 6 universal transparent 5-way connectors
- 1 universal transparent 2-way connector
- 4 single-core cord segments for use as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
Accessory kit for 9-hole ceiling canopy cordset. The kit includes:
- 6 universal transparent 5-way connectors
- 1 universal transparent 2-way connector
- 4 single-core cord segments for use as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
Description
Accessory kit for 9-hole ceiling canopy cordset. The kit includes:
- 6 universal transparent 5-way connectors
- 1 universal transparent 2-way connector
- 4 single-core cord segments for use as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
