WAGO connection kit compatible with 2x cord for 10-hole ceiling canopy

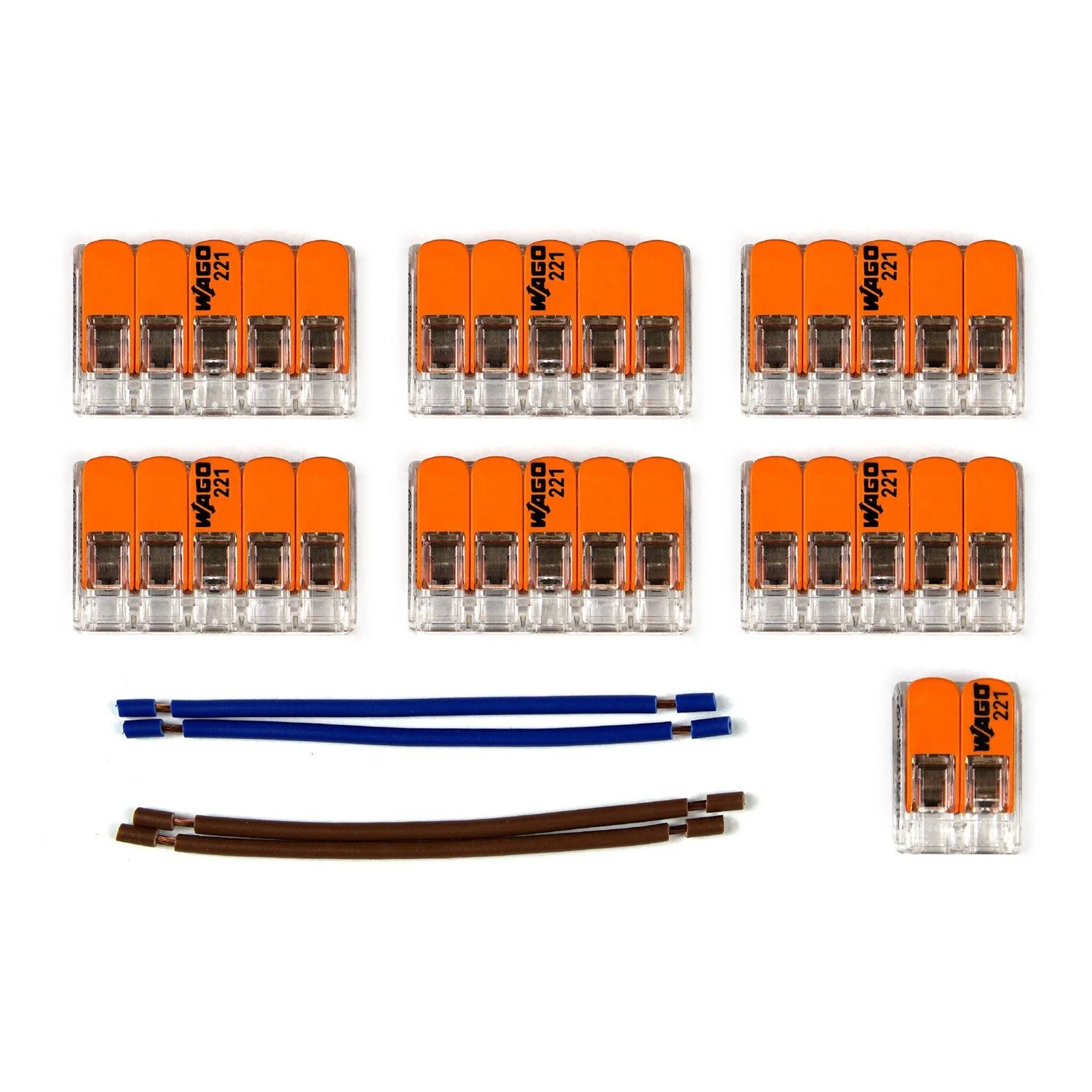

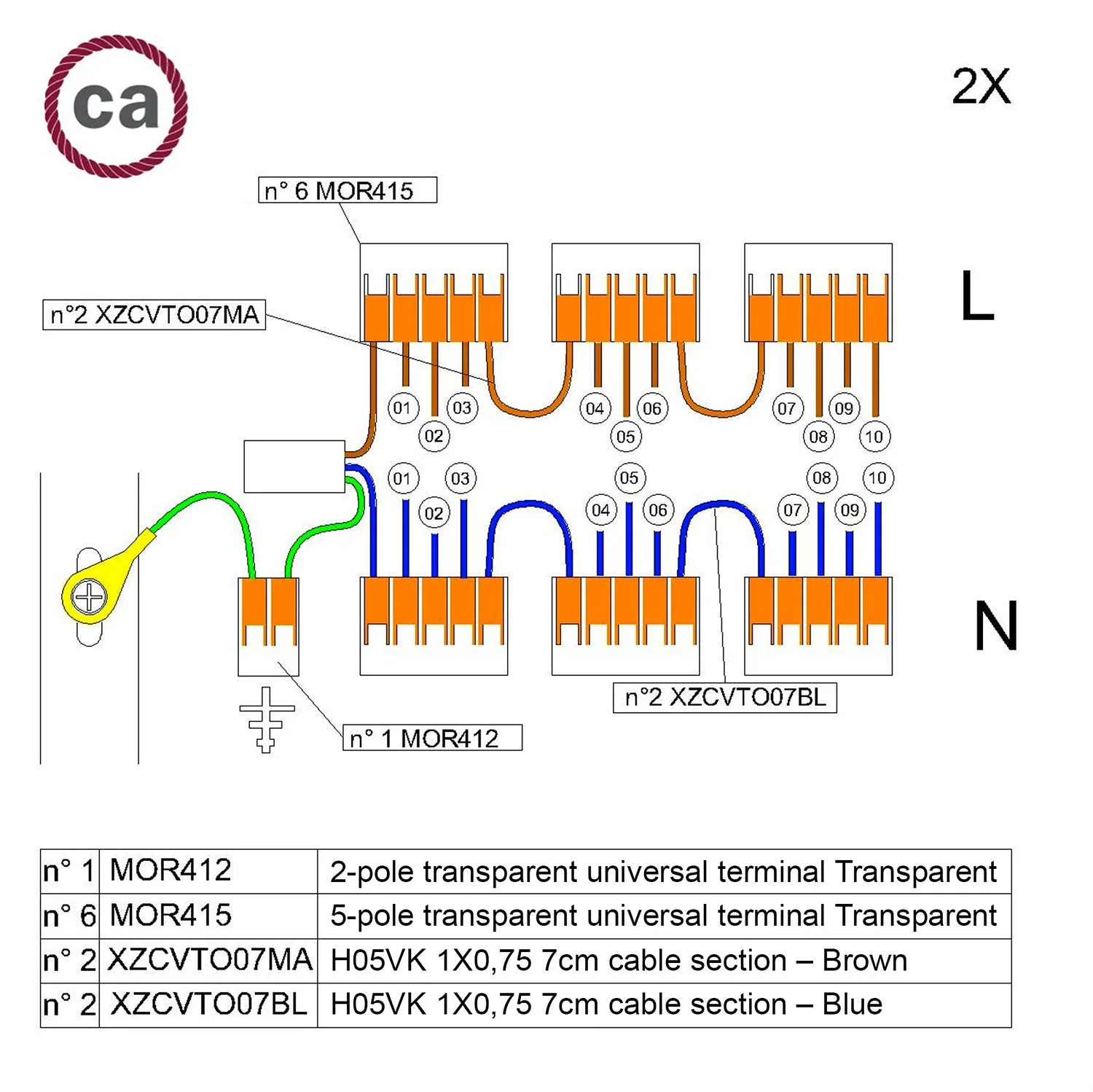

Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 6 universal transparent 5-entry terminal blocks
- 1 universal transparent 2-entry terminal block
- 4 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 6 universal transparent 5-entry terminal blocks
- 1 universal transparent 2-entry terminal block
- 4 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
Description
Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 6 universal transparent 5-entry terminal blocks
- 1 universal transparent 2-entry terminal block
- 4 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed temperature in the environment according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
