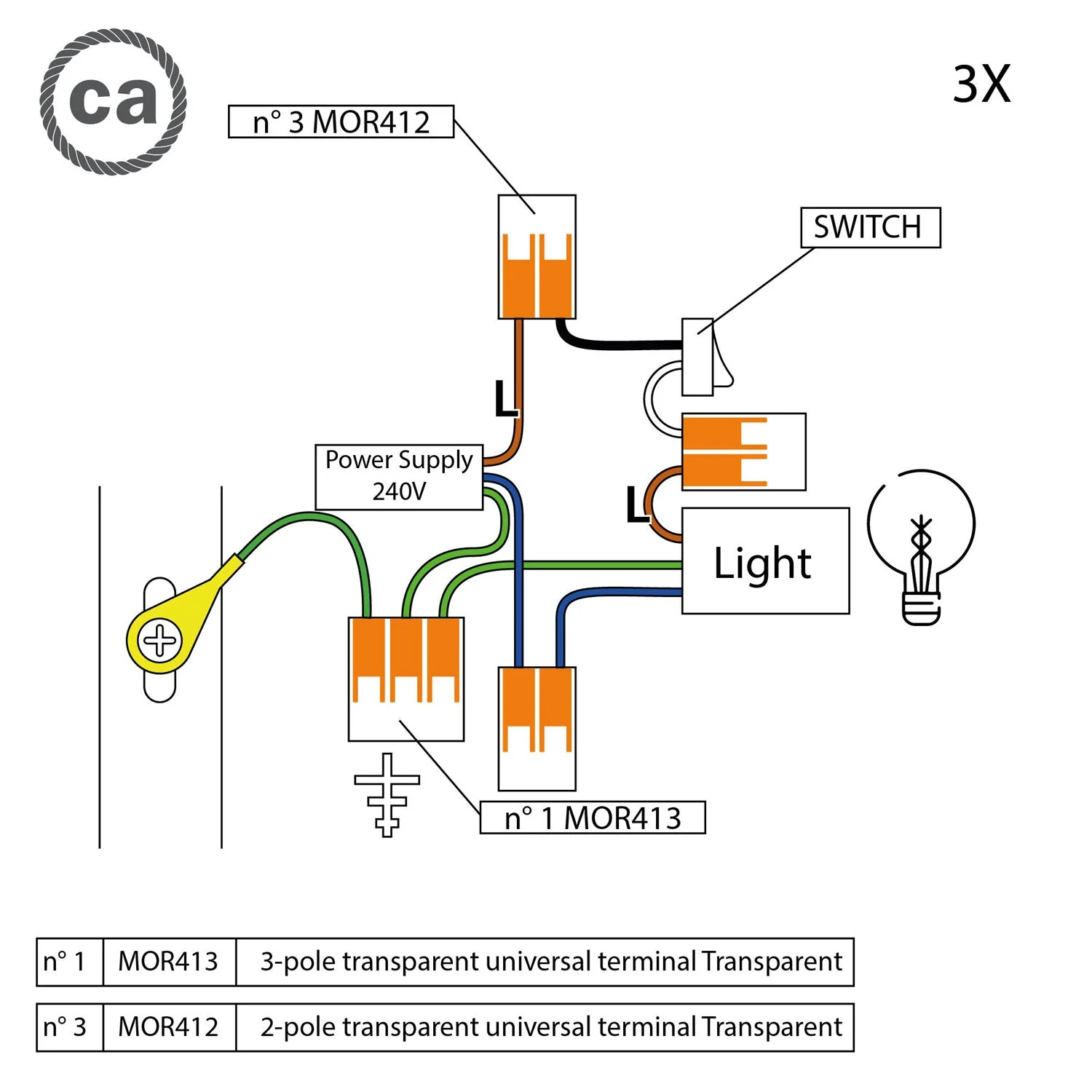

WAGO connection kit compatible with 3x cord for single-hole mini ceiling canopy with switch

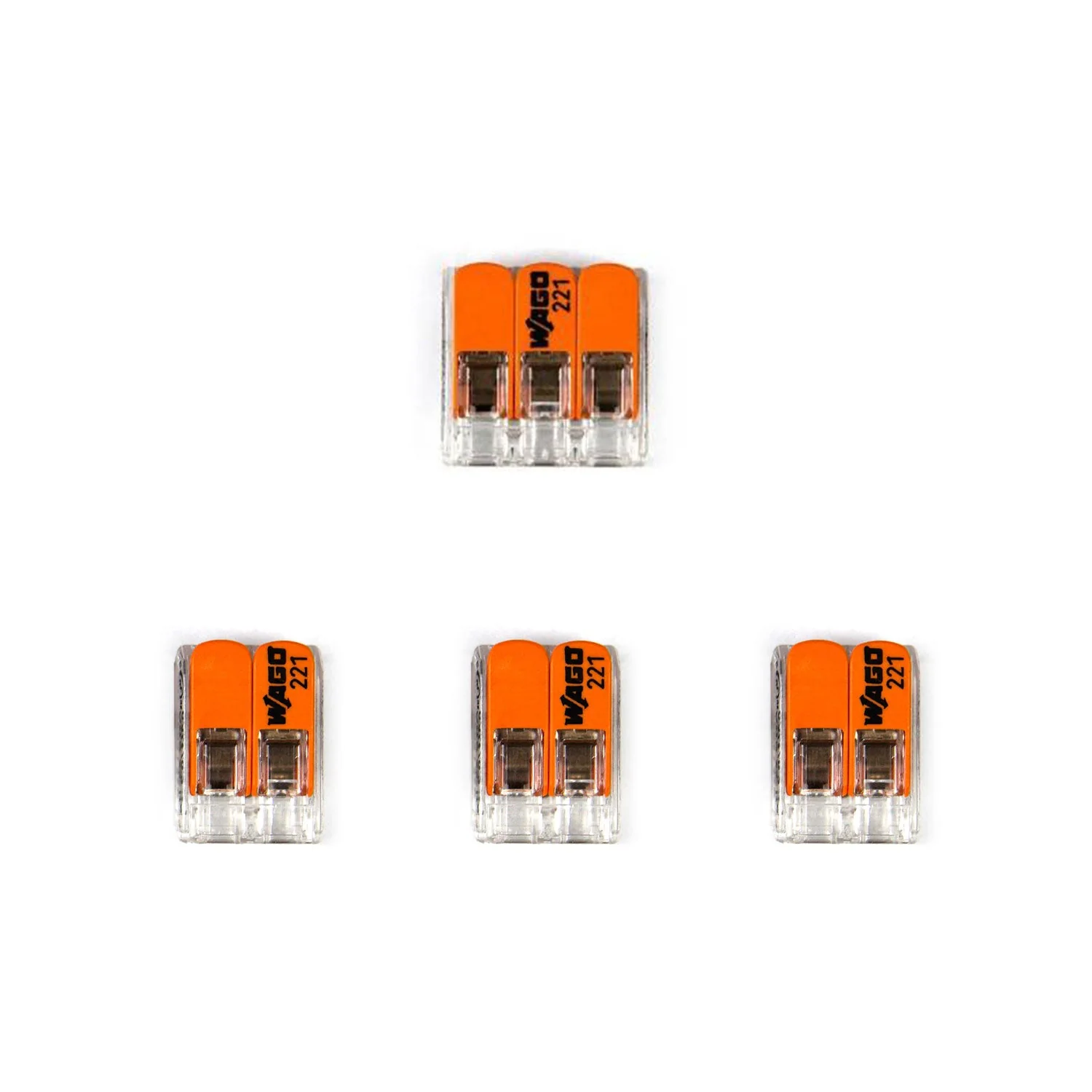

Accessory kit for wiring the mini ceiling canopy with switch. The kit includes three universal transparent 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85°C
Accessory kit for wiring the mini ceiling canopy with switch. The kit includes three universal transparent 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85°C
Description
Accessory kit for wiring the mini ceiling canopy with switch. The kit includes three universal transparent 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85°C
