WAGO connection kit compatible with 3x cord for two-hole ceiling canopy

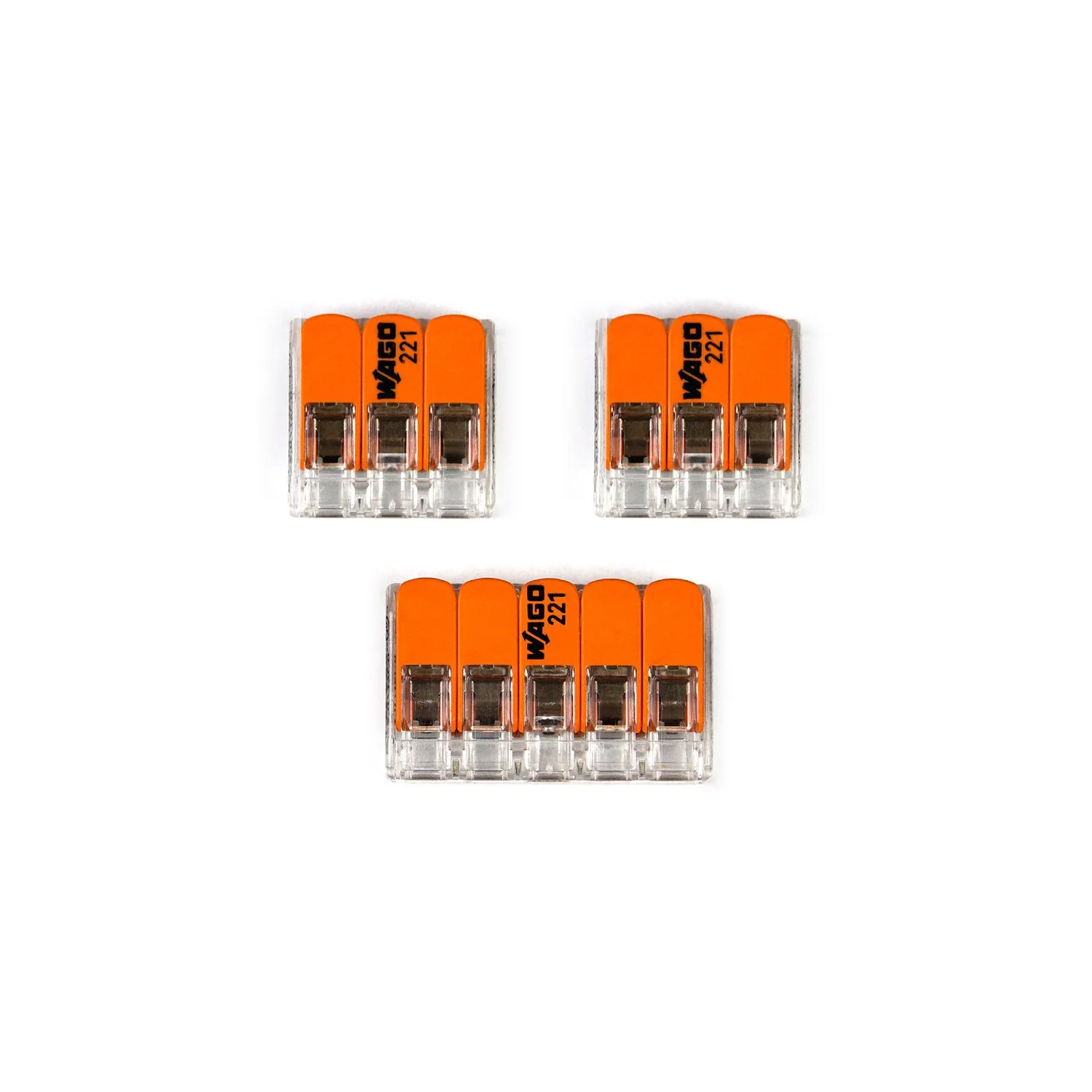

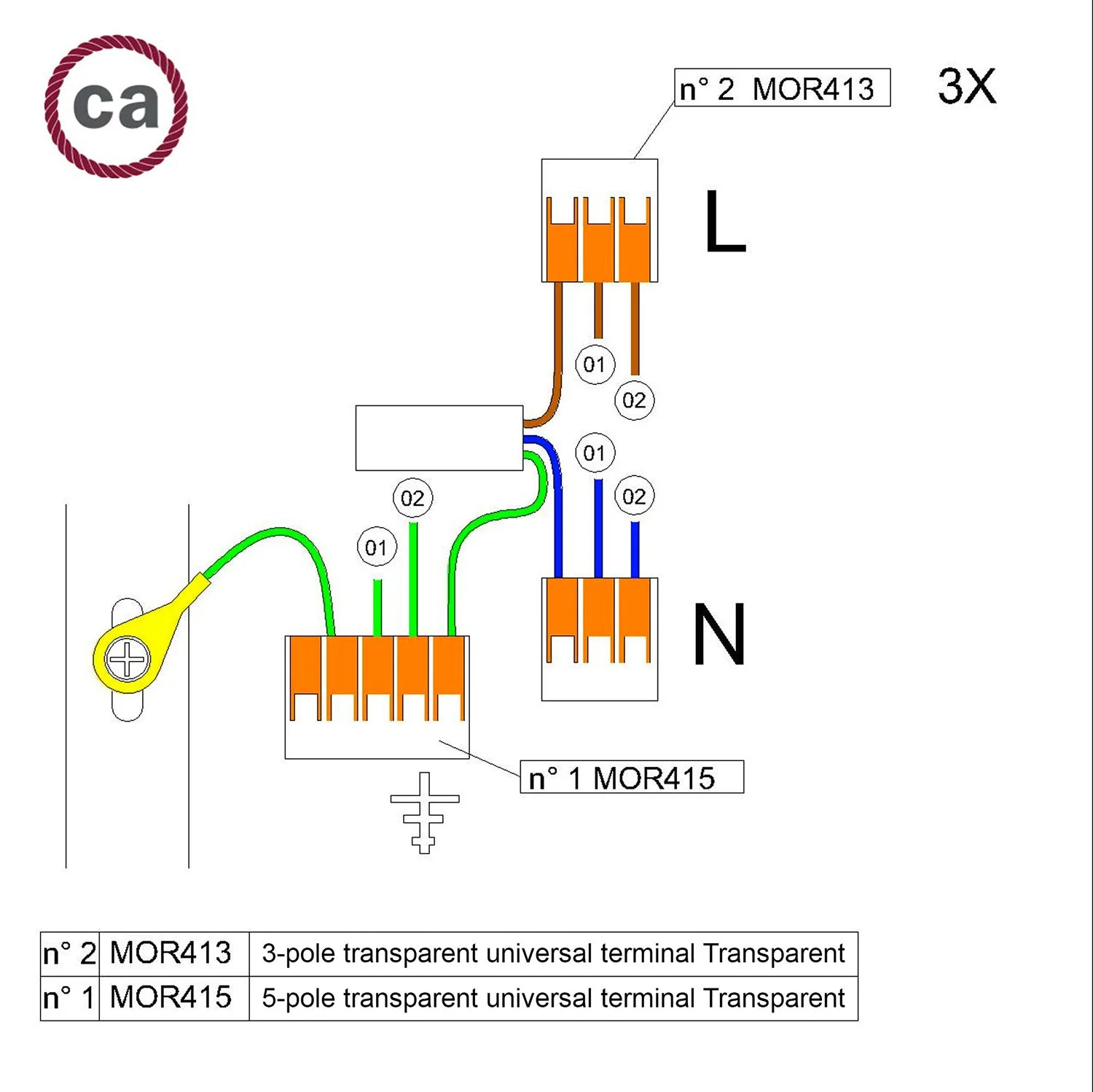

Accessory kit for 2-hole ceiling canopy wiring. The kit includes two 3-port transparent universal connectors and one 5-port transparent universal connector.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
2 connectors - Number of entries: 3
1 connector - Number of entries: 5
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
