WAGO connection kit compatible with 3x cord for 13-hole ceiling canopy

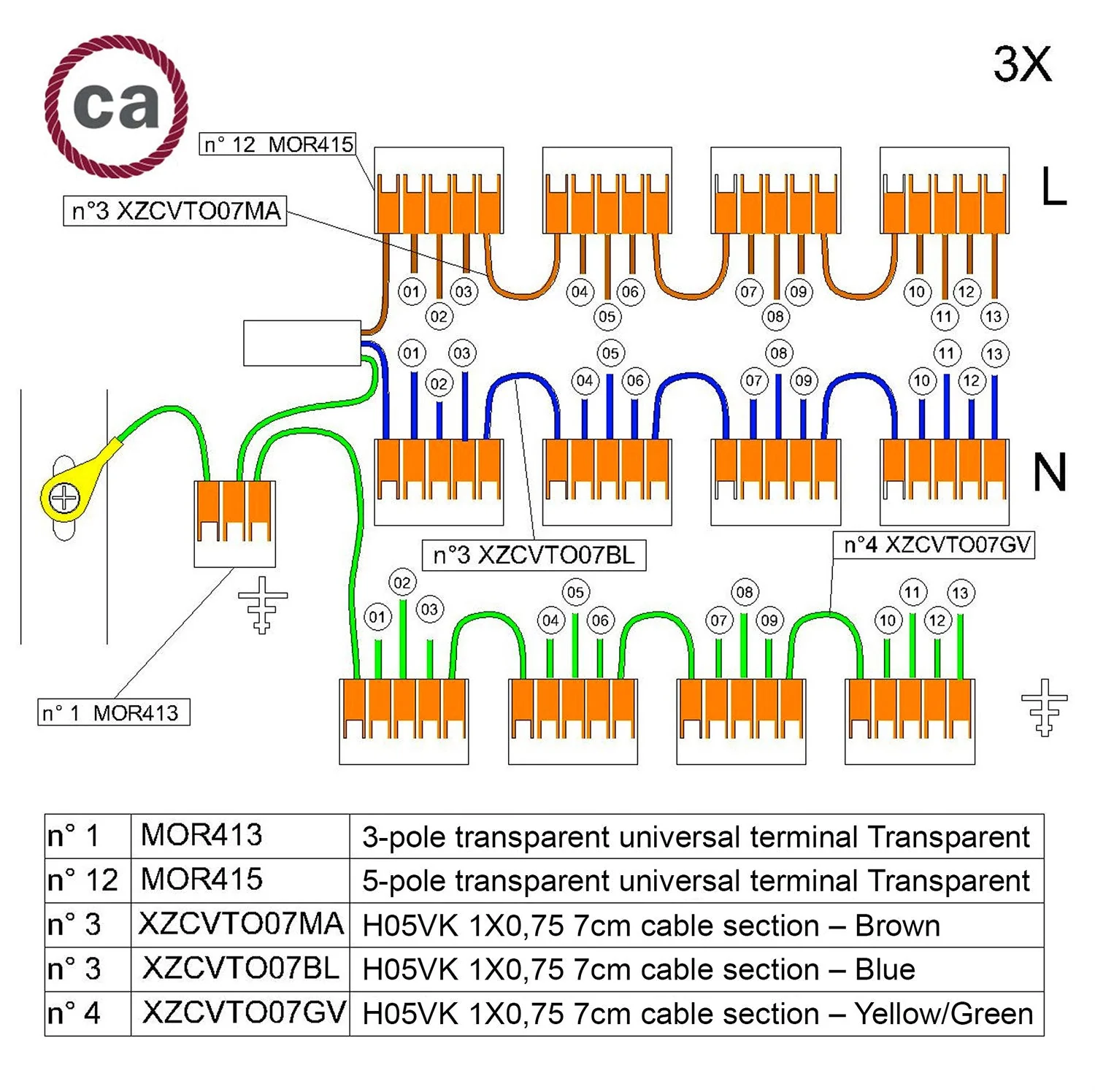

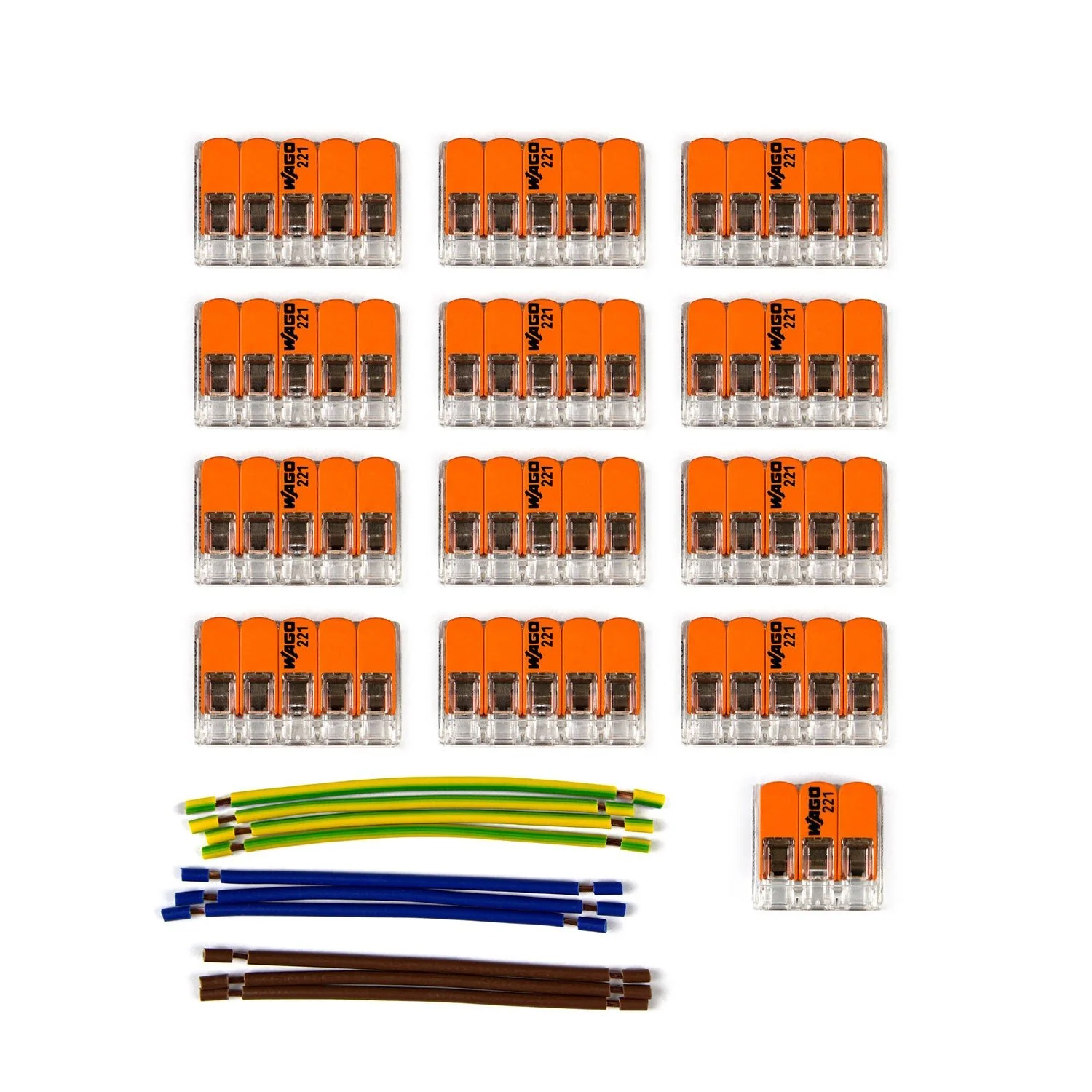

Accessory kit for 13-hole ceiling canopy cordset wiring. The kit includes:
- 12 transparent universal 5-port connectors
- 1 transparent universal 3-port connector
- 10 single-core cord pieces useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cords
12 connectors - Number of inputs: 5
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed ambient temperature according to EN 60998: 85°C
3 pieces of single-core brown cord: 7 cm
3 pieces of single-core blue cord: 7 cm
4 pieces of single-core green cord: 7 cm
