WAGO connection kit compatible with 3x cord for 6-hole ceiling canopy

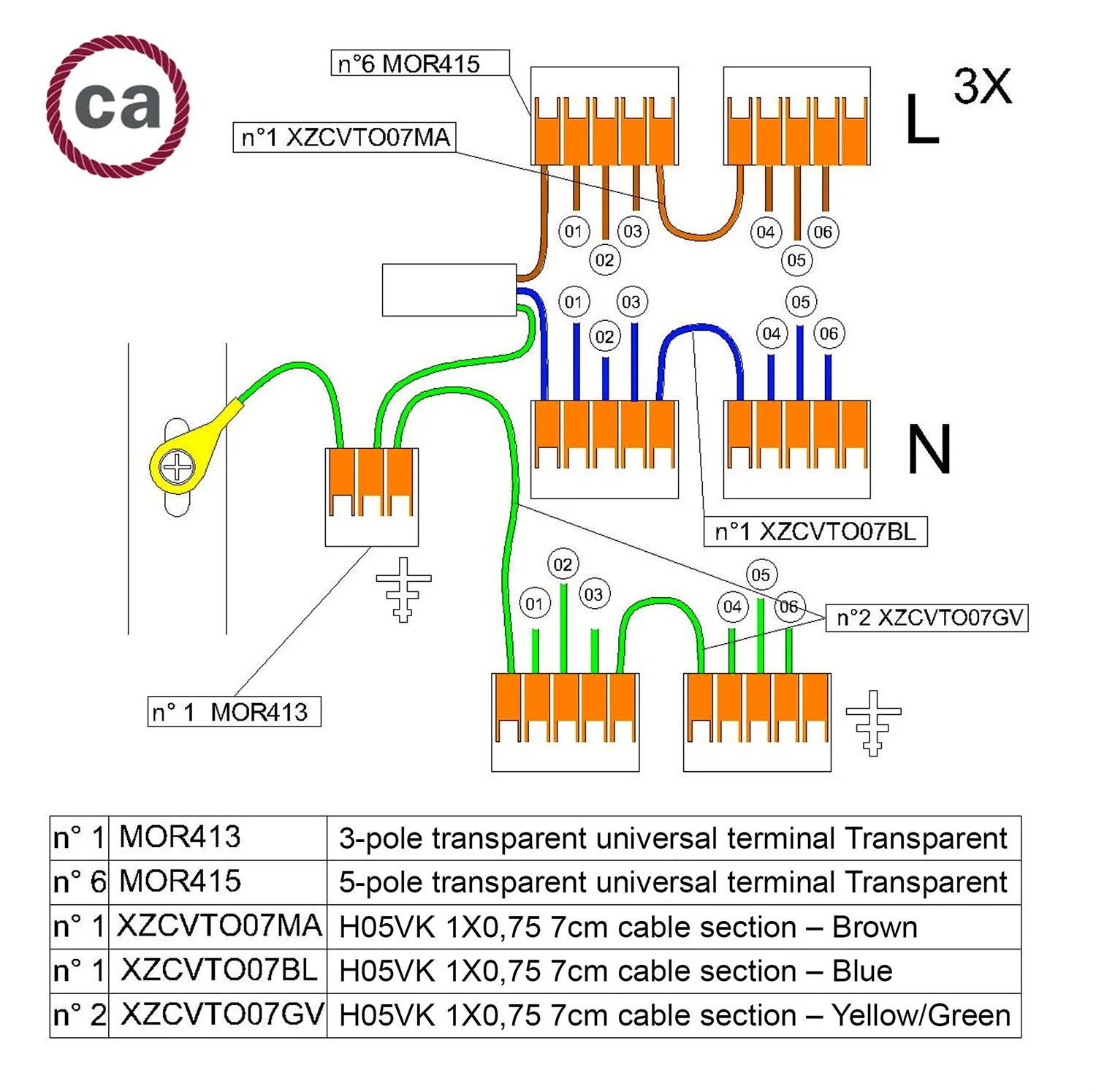

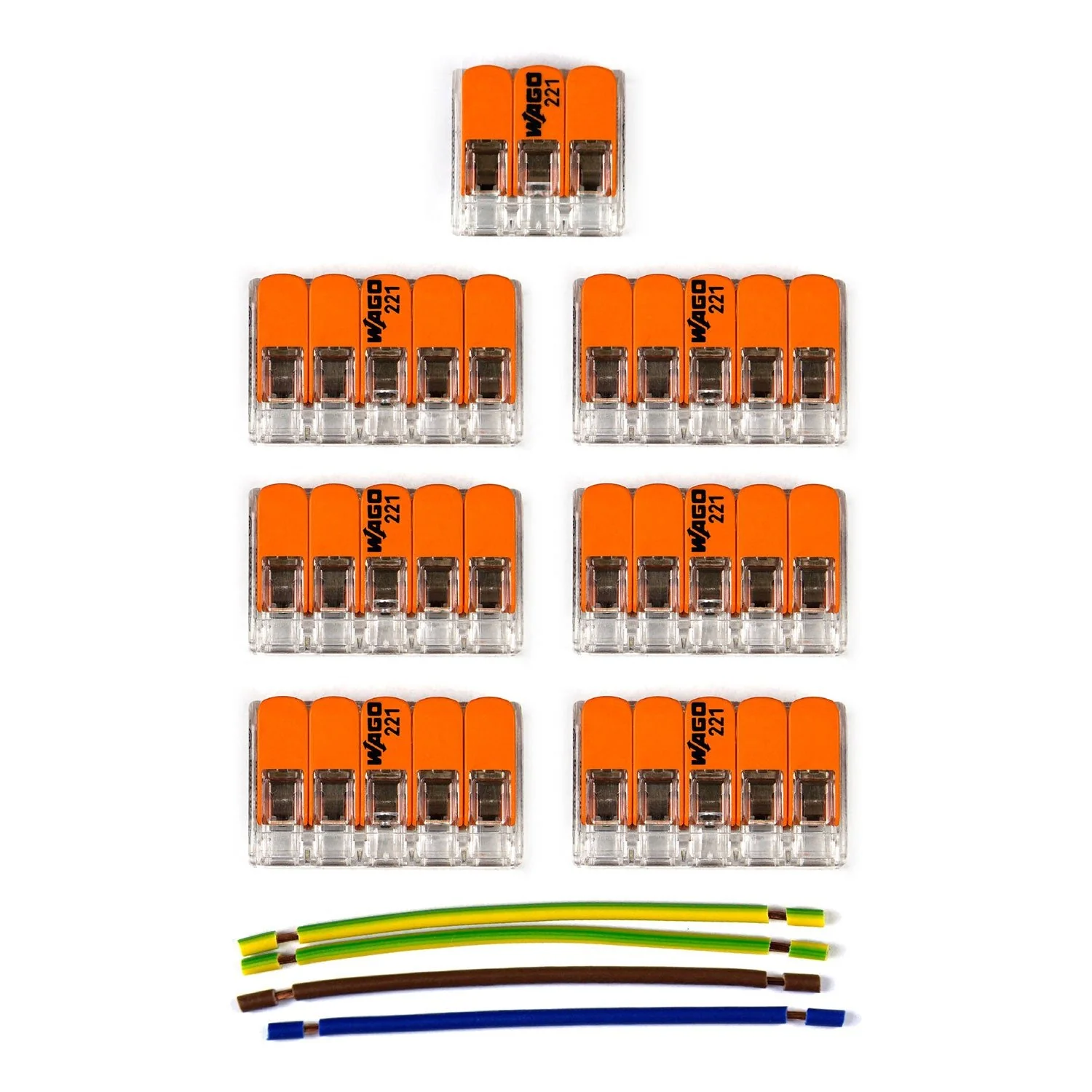

Accessory kit for wiring 6-hole ceiling canopy. The kit includes: - 6 universal 5-port transparent connectors - 1 universal 3-port transparent connector - 4 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85°C
1 piece of single-core brown cord: 7 cm
1 piece of single-core blue cord: 7 cm
2 pieces of single-core green cord: 7 cm
Accessory kit for wiring 6-hole ceiling canopy. The kit includes: - 6 universal 5-port transparent connectors - 1 universal 3-port transparent connector - 4 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
6 connectors - Number of inputs: 5
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85°C
1 piece of single-core brown cord: 7 cm
1 piece of single-core blue cord: 7 cm
2 pieces of single-core green cord: 7 cm
