WAGO connection kit compatible with 3x cord for 10-hole ceiling canopy

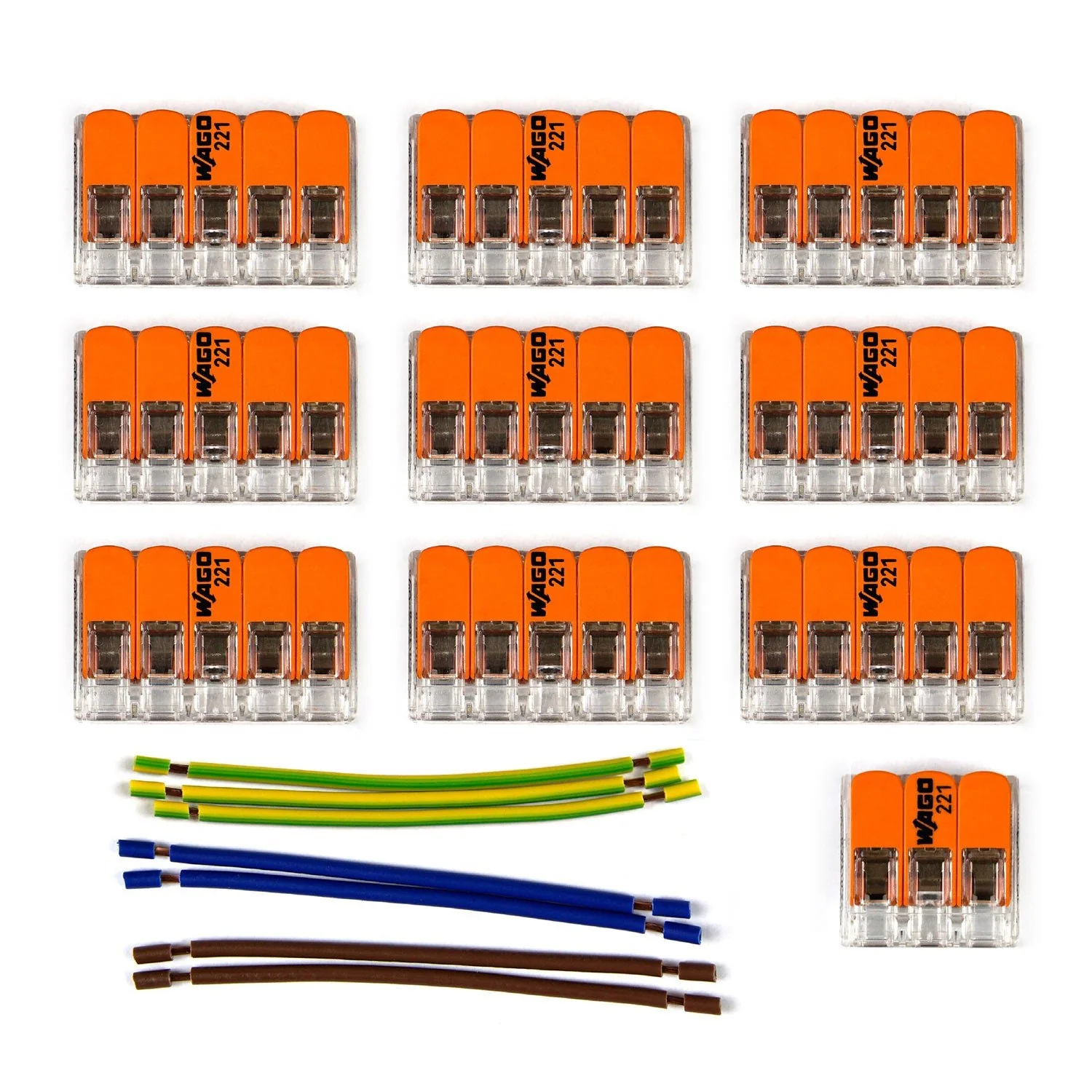

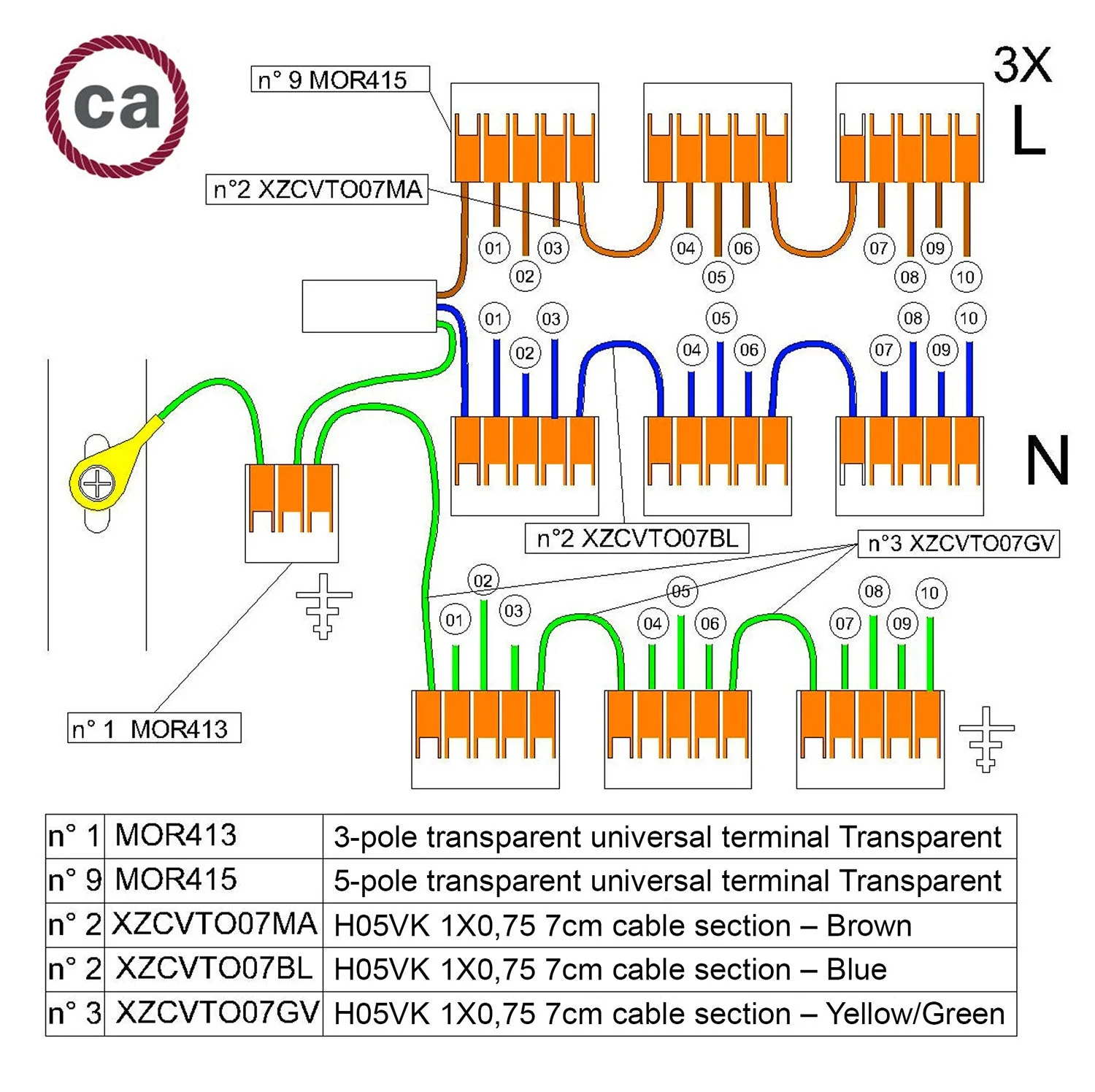

Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 9 universal transparent 5-way connectors
- 1 universal transparent 3-way connector
- 7 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
9 connectors - Number of entries: 5
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
3 pieces of single-core green cord: 7 cm
Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 9 universal transparent 5-way connectors
- 1 universal transparent 3-way connector
- 7 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
9 connectors - Number of entries: 5
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
3 pieces of single-core green cord: 7 cm
Original: $24.13
-70%$24.13
$7.24Description
Accessory kit for wiring 10-hole ceiling canopy. The kit includes:
- 9 universal transparent 5-way connectors
- 1 universal transparent 3-way connector
- 7 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or stranded cords
9 connectors - Number of entries: 5
1 connector - Number of entries: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
2 pieces of single-core brown cord: 7 cm
2 pieces of single-core blue cord: 7 cm
3 pieces of single-core green cord: 7 cm
