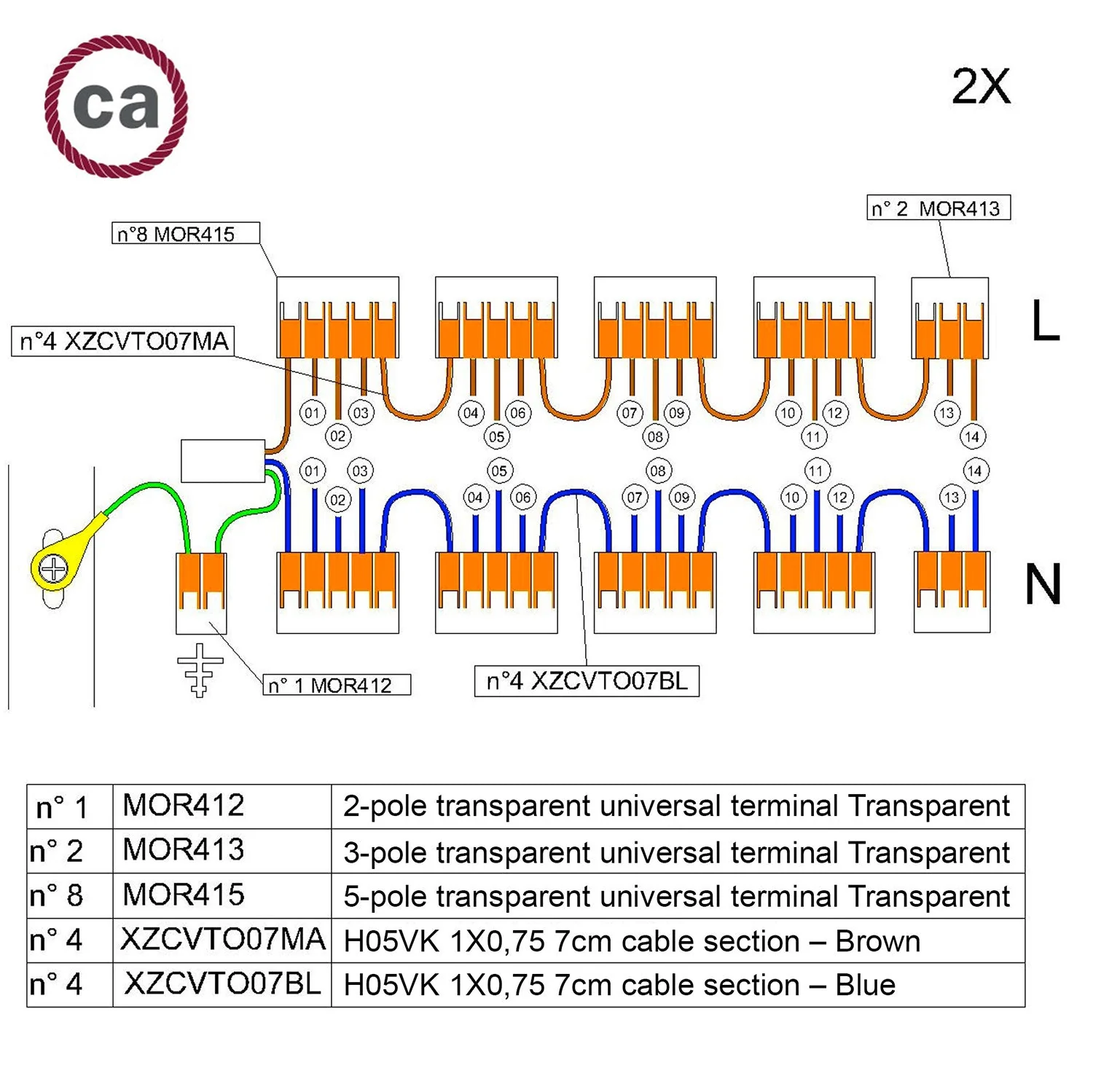

WAGO connection kit compatible with 2x cord for 14-hole ceiling canopy

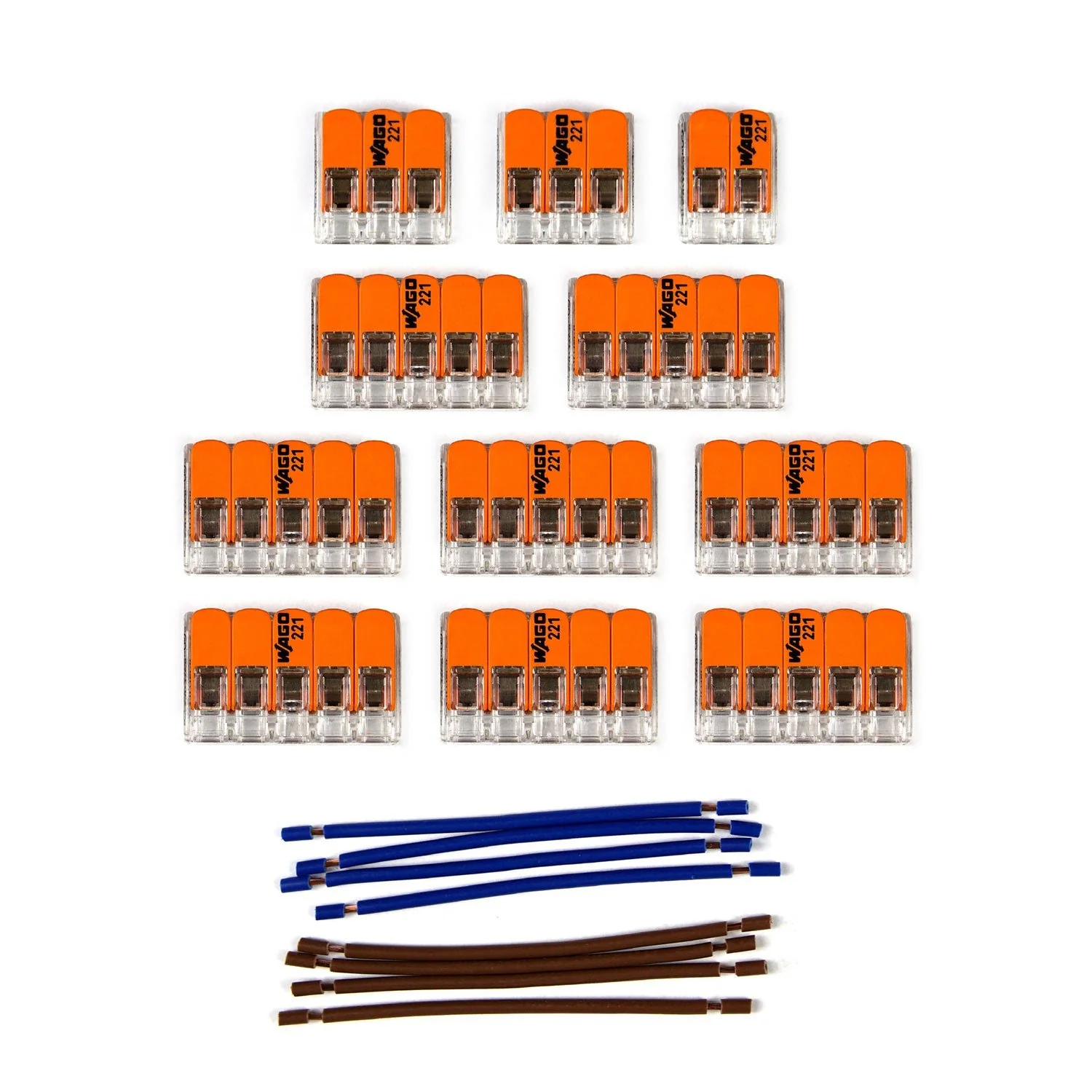

Accessory kit for wiring a 14-hole ceiling canopy. The kit includes:
- 8 universal 5-entry transparent clamps
- 2 universal 3-entry transparent clamps
- 1 universal 2-entry transparent clamp
- 8 pieces of single-core cord useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
8 connectors - Number of entries: 5
2 connectors - Number of entries: 3
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
4 pieces of single-core brown cord: 7 cm
4 pieces of single-core blue cord: 7 cm
