WAGO connection kit compatible with 2x cord for 13-hole ceiling canopy

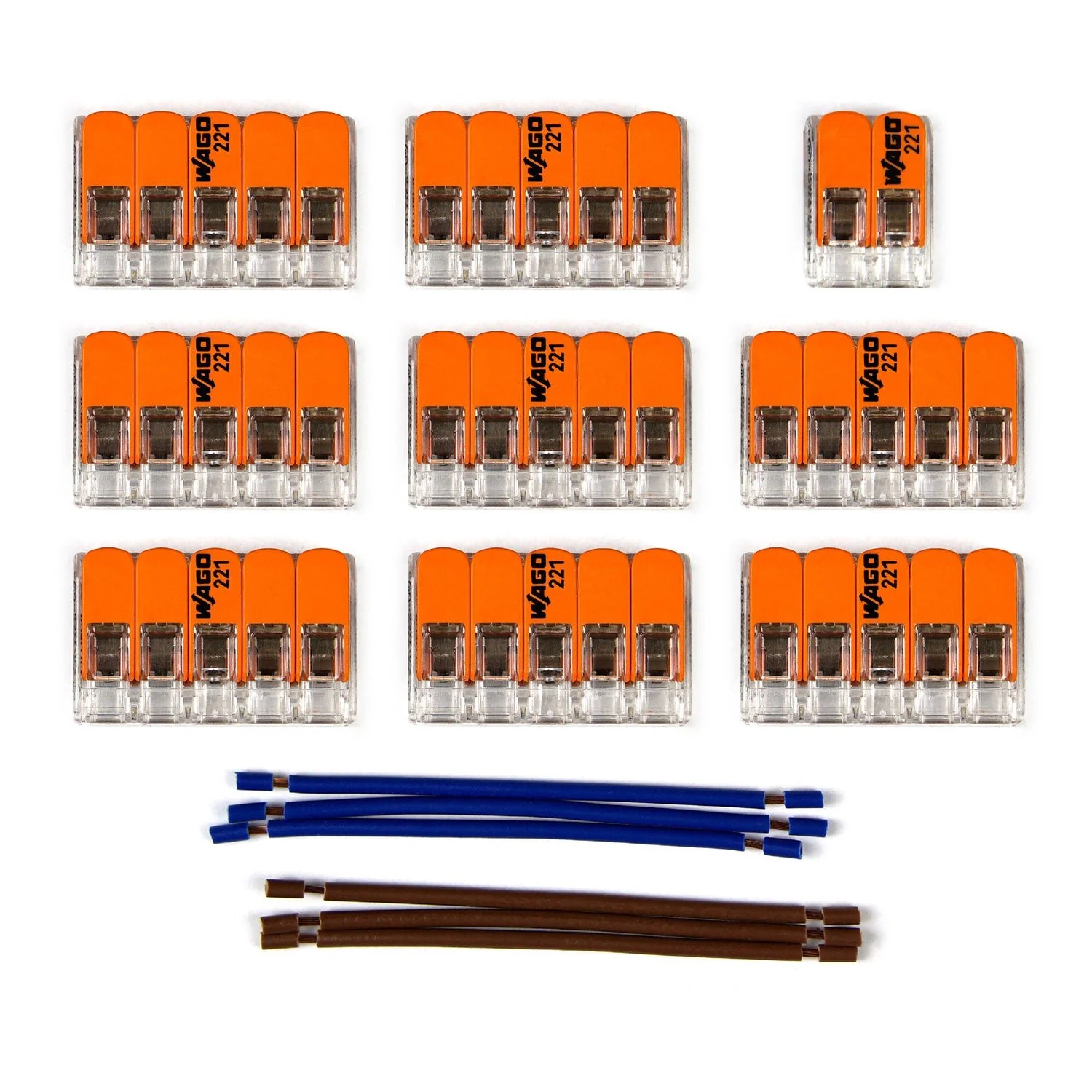

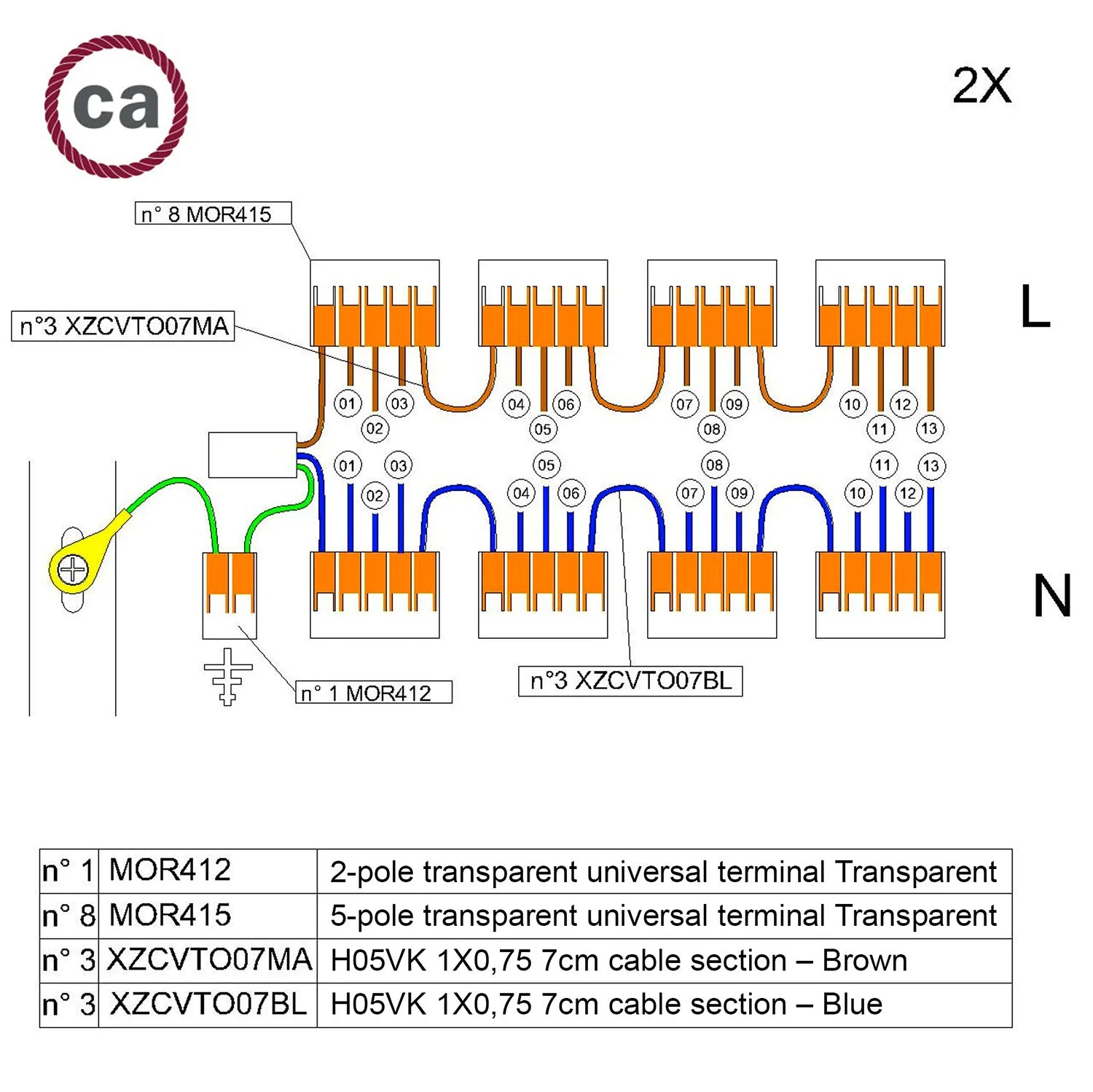

Accessory kit for wiring ceiling canopy with 13 holes. The kit includes:
- 8 universal 5-port transparent connectors
- 1 universal 2-port transparent connector
- 6 sections of single-core cord, useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
8 connectors - Number of entries: 5
1 connector - Number of entries: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowed ambient temperature according to EN 60998: 85° C
3 pieces of single-core brown cord: 7 cm
3 pieces of single-core blue cord: 7 cm
