WAGO connection kit compatible with 2x cord for 3-hole ceiling canopy

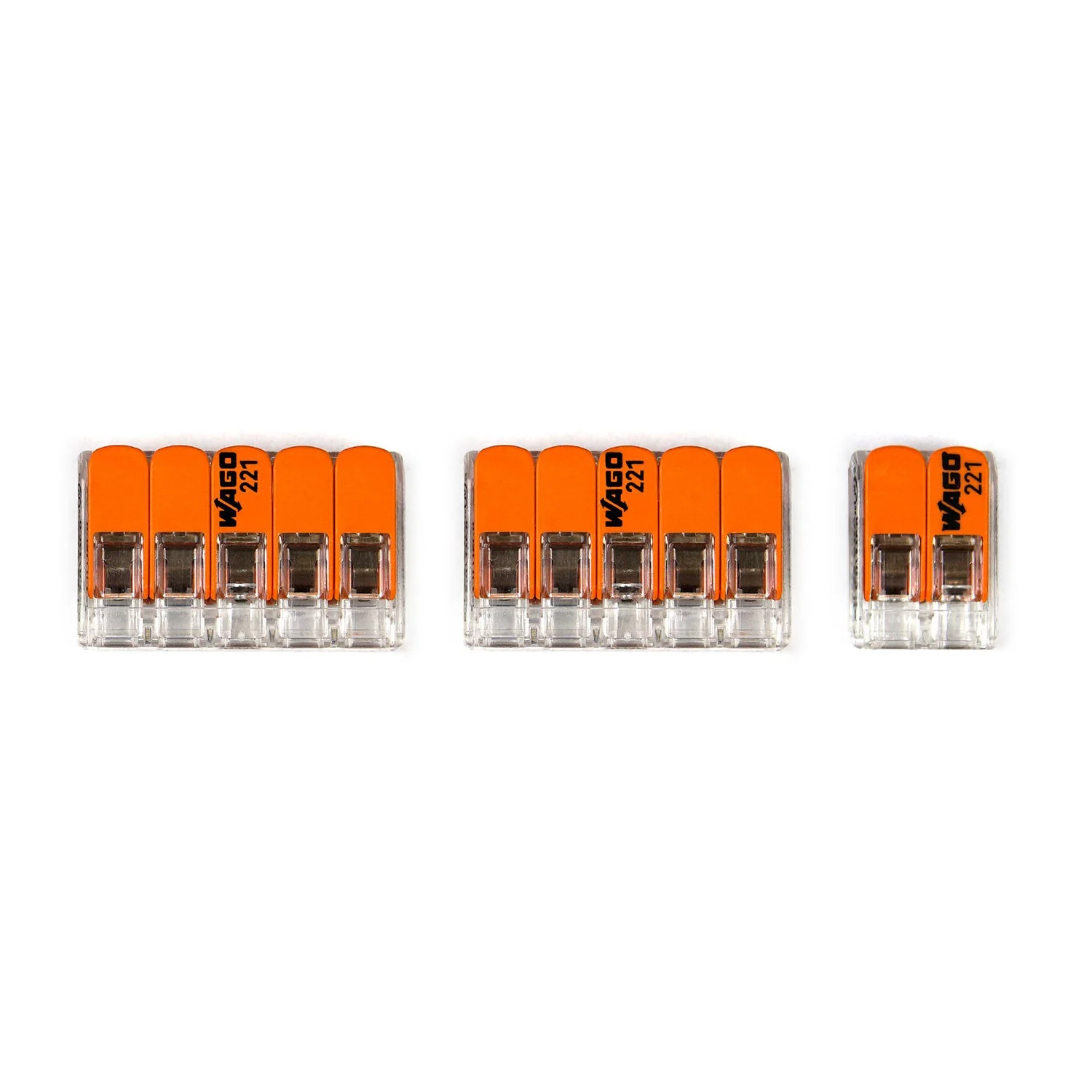

Accessory kit for 3-hole ceiling canopy cordset. The kit includes two transparent universal connectors with 5 entries and one transparent universal connector with 2 entries.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
Accessory kit for 3-hole ceiling canopy cordset. The kit includes two transparent universal connectors with 5 entries and one transparent universal connector with 2 entries.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
Description
Accessory kit for 3-hole ceiling canopy cordset. The kit includes two transparent universal connectors with 5 entries and one transparent universal connector with 2 entries.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cords
2 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85° C
