WAGO connection kit compatible with 2x cord for 15-hole ceiling canopy

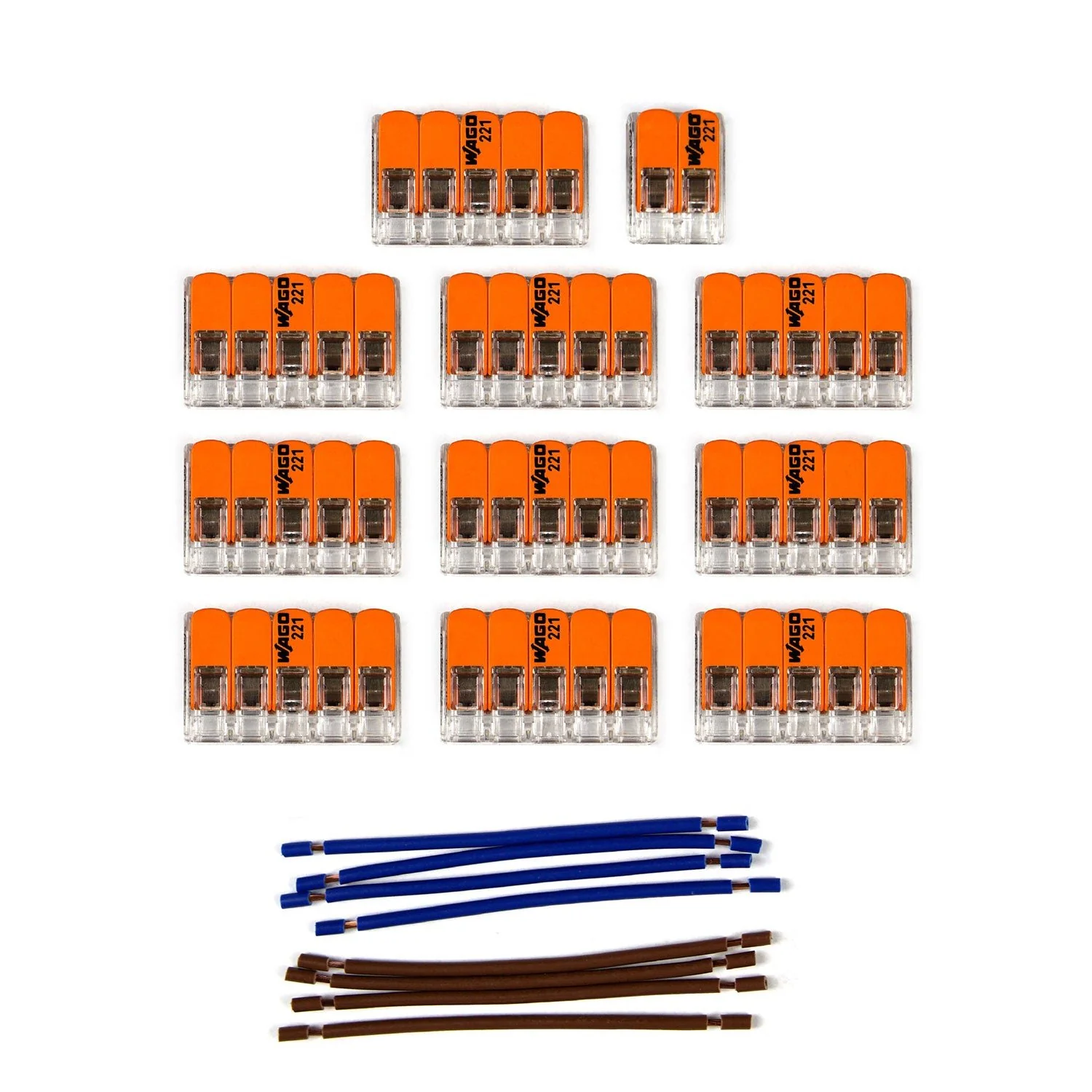

Accessory kit for 15-hole ceiling canopy cordset. The kit includes:
- 10 transparent universal 5-way connectors
- 1 transparent universal 2-way connector
- 8 single-core cord segments useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
10 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85°C
4 pieces of single-core brown cord: 7 cm
4 pieces of single-core blue cord: 7 cm
Accessory kit for 15-hole ceiling canopy cordset. The kit includes:
- 10 transparent universal 5-way connectors
- 1 transparent universal 2-way connector
- 8 single-core cord segments useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
10 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85°C
4 pieces of single-core brown cord: 7 cm
4 pieces of single-core blue cord: 7 cm
Original: $26.19
-70%$26.19
$7.86Description
Accessory kit for 15-hole ceiling canopy cordset. The kit includes:
- 10 transparent universal 5-way connectors
- 1 transparent universal 2-way connector
- 8 single-core cord segments useful as interconnection bridges
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
10 connectors - Number of inputs: 5
1 connector - Number of inputs: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum allowable ambient temperature according to EN 60998: 85°C
4 pieces of single-core brown cord: 7 cm
4 pieces of single-core blue cord: 7 cm
