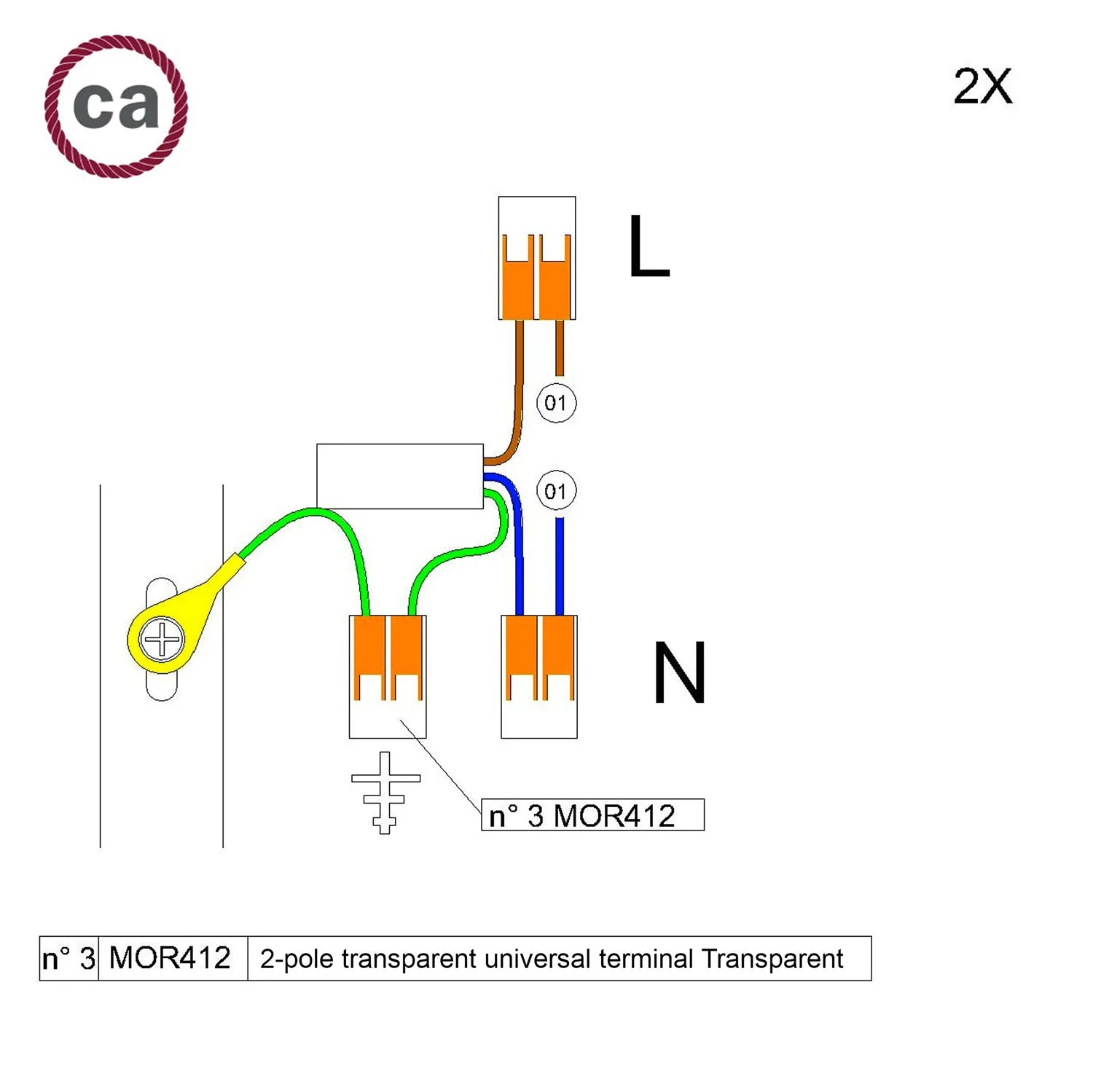

WAGO connection kit compatible with 2x cord for 1-hole ceiling canopy

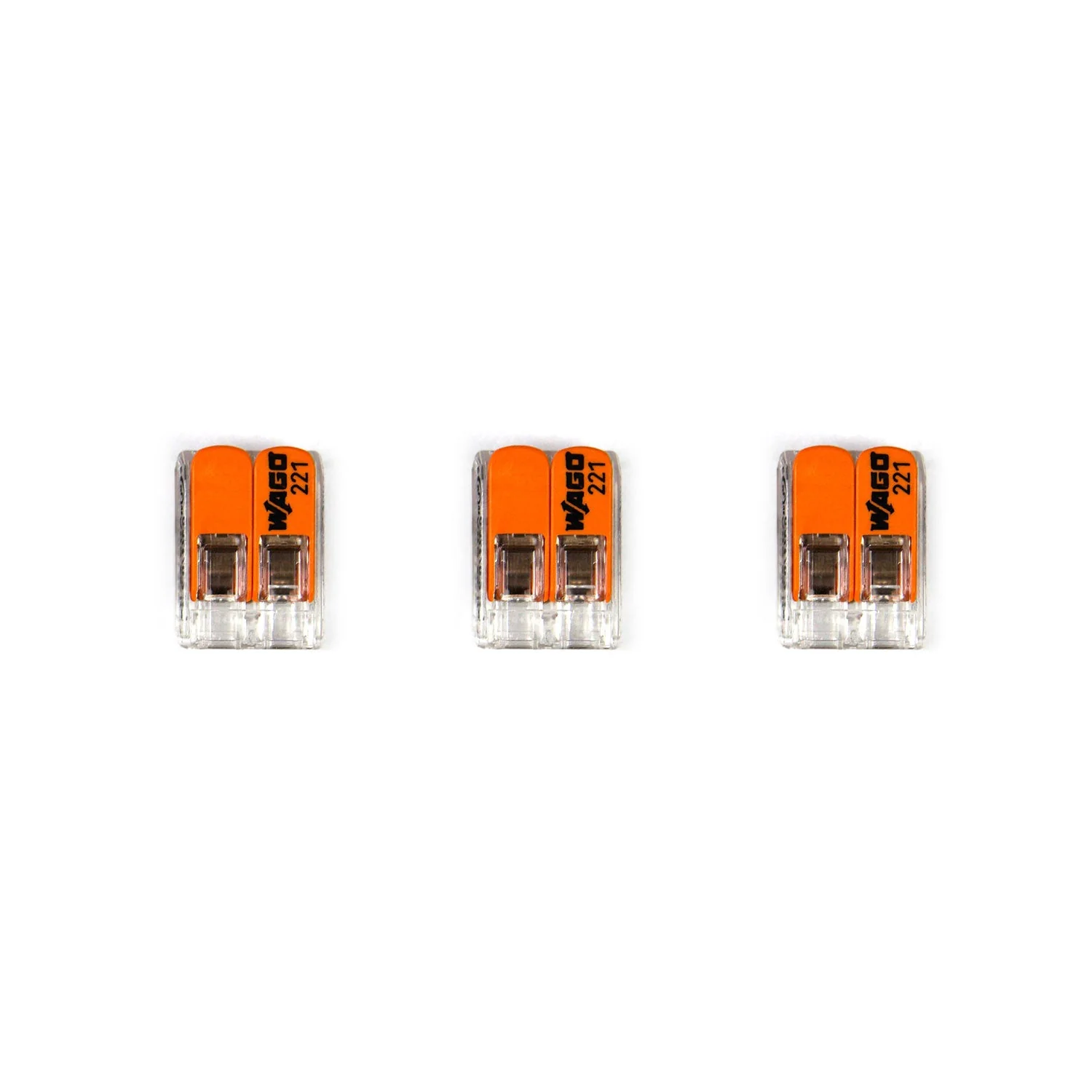

Accessory kit for wiring a ceiling canopy with 1 hole. The kit includes three universal transparent 2-way connectors.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
Accessory kit for wiring a ceiling canopy with 1 hole. The kit includes three universal transparent 2-way connectors.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
Description
Accessory kit for wiring a ceiling canopy with 1 hole. The kit includes three universal transparent 2-way connectors.
The transparent container allows you to clearly see if the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electrical wire with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cords
3 connectors - Number of entries: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
