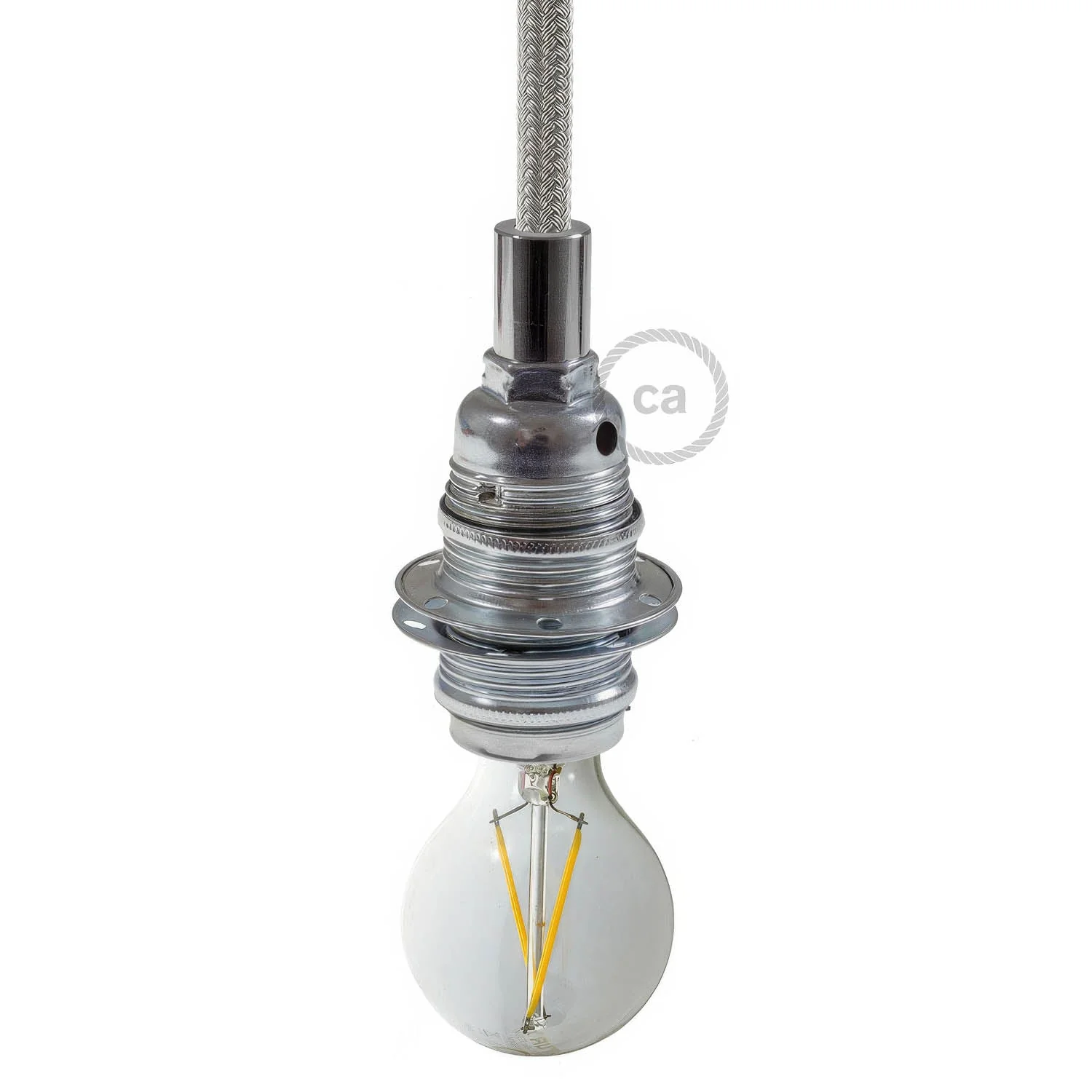

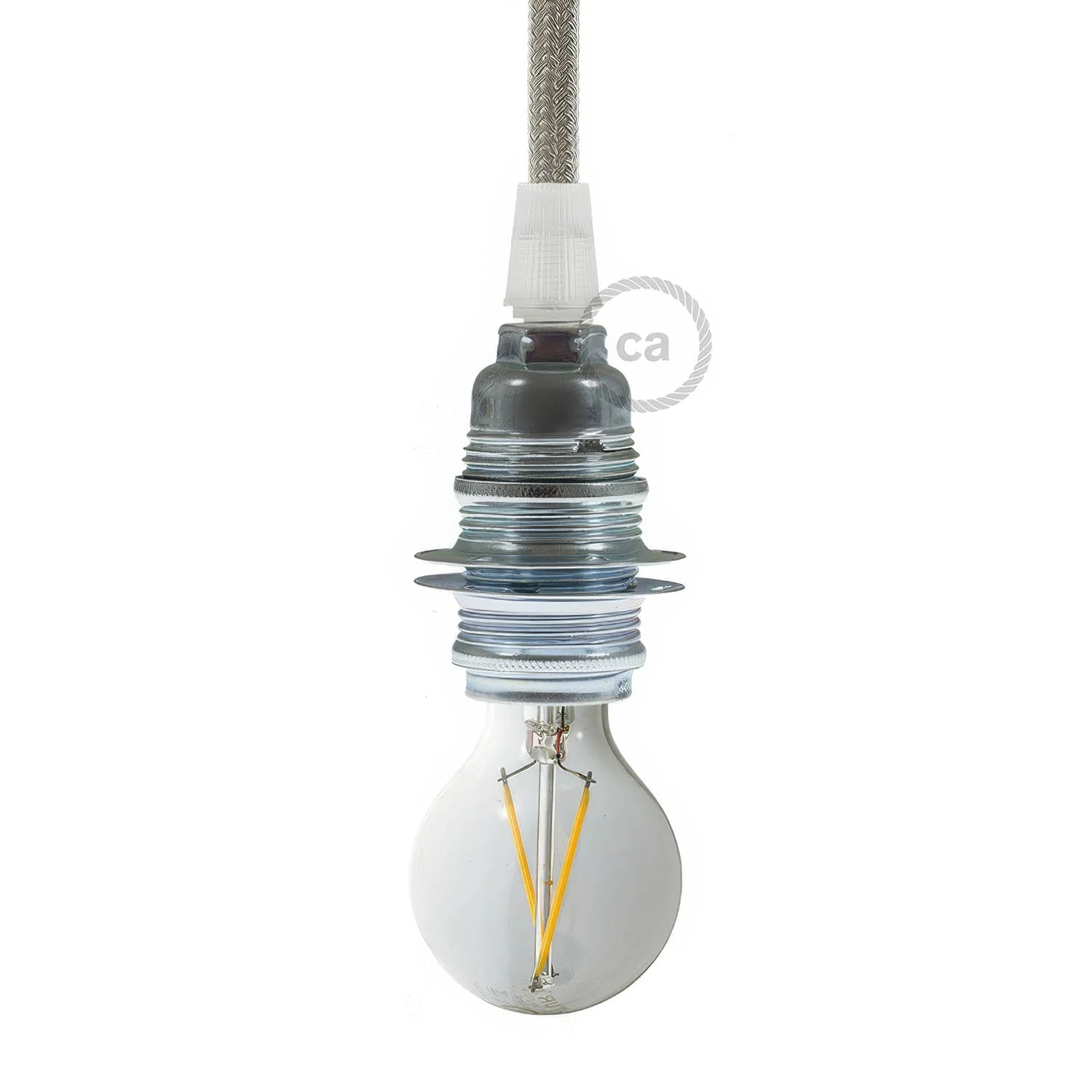

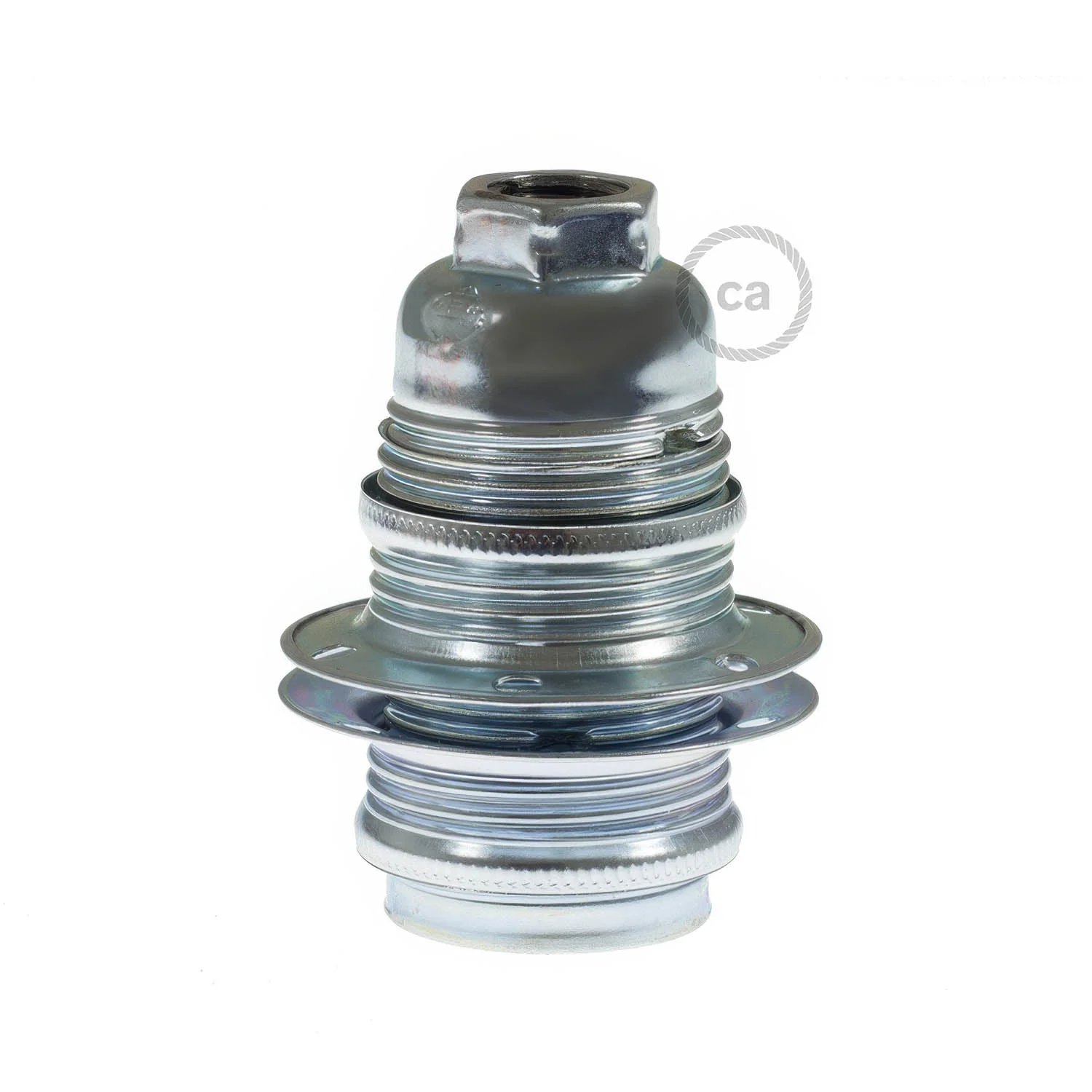

The E14 metal socket kit with double ring is used to assemble a wall, table, or ceiling lamp equipped with a lampshade. The shiny and versatile silver finish enhances the socket’s profile with contemporary reflections that easily match minimal, Scandinavian, industrial, or classic interiors.

The E14 metal socket kit with double ring for lampshade is right for you if:
- you want to use a shielding element
- you need to use a light bulb with E14 base
- you love a clean, modern metallic finish like silver.

To configure and complete the E14 metal threaded socket kit for lampshade:
- find out how to assemble the light socket with the dedicated tutorial
- complete your lighting installation with components, accessories, light bulbs, and fabric cables by Creative Cables.

Extra tip:
- match the E14 socket with a ceiling canopy in the same metallic finish.

The socket kit requires 3x0.75 cords.

Technical specifications:

Sheath: threaded.
Body: thermoset polyester T230 (Maximum operating temperature).
Rated voltage: 250 Vac.
Rated current: 2 A.
Terminals: screw type for solid or stranded wires from 0.5 ÷ 2.5 mm2.
Mounting: with M10x1 threaded hole.

Dimensions:
Diameter: 28 mm
Height: 58 mm
Ring diameter: 43 mm

Technical specifications for round strain relief:
Cap size: diameter 13 mm - height 17 mm.
Cap material: metal.
Threaded tube size: diameter M10x1 - height 15 mm.
Threaded tube material: metal.

Technical specifications for conical strain relief: Height: 43 mm Diameter: 14.8 mm Material: thermoplastic
