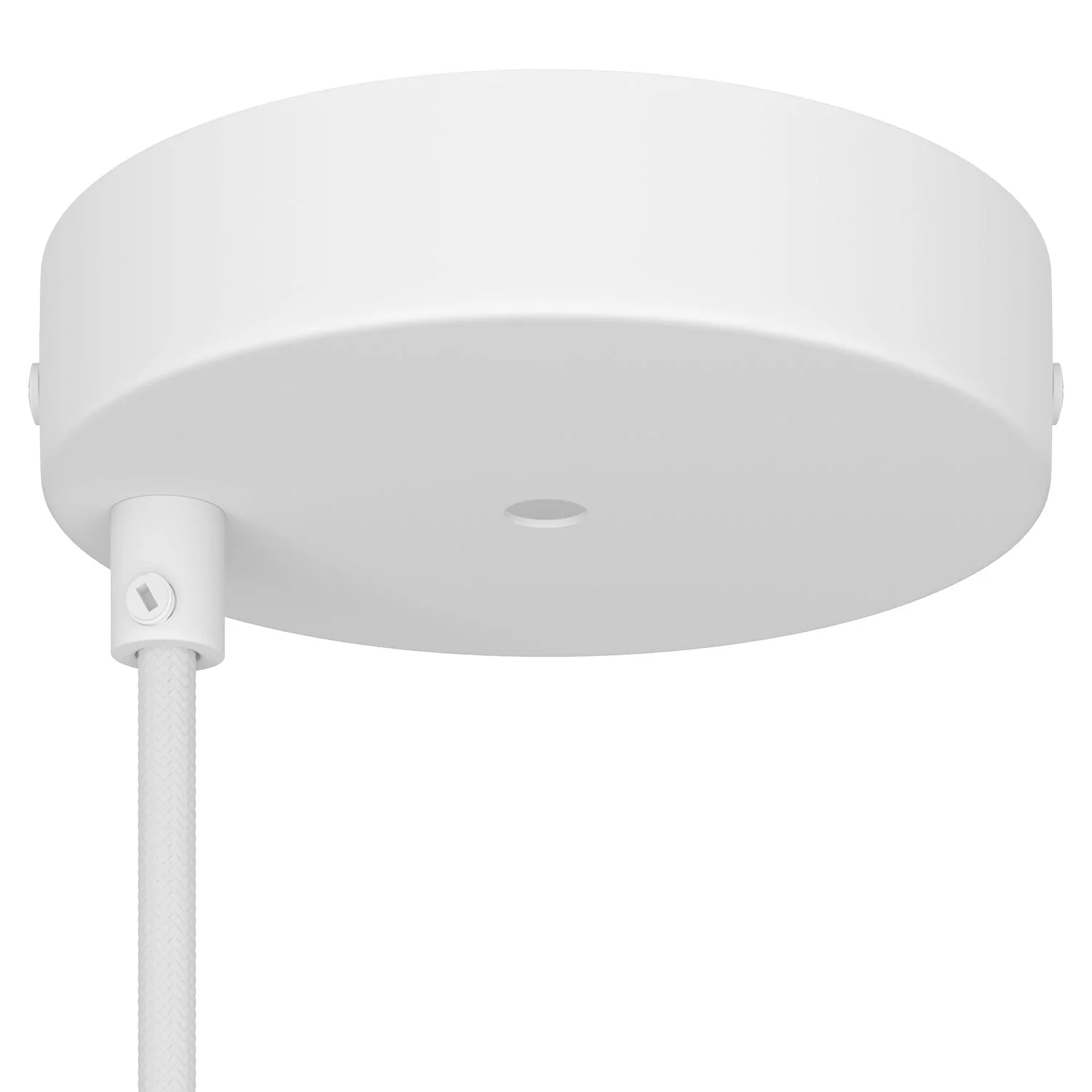

The ceiling canopy designed for complex suspensions

This matt white metal Ceiling canopy kit is designed for installations that require advanced structural management. It is not a simple cover for the power point, but a technical base designed to separate the load-bearing function from the electrical supply, ensuring visual order and mechanical stability even in demanding configurations.

Optimal configuration: strength and light

10 mm central hole: designed for inserting a tensioner with steel tie rod, it allows the weight to be symmetrically transferred to the ceiling bracket, making it ideal for large Lampshades and chandeliers.
10 mm offset hole: dedicated to the passage of the textile Cord, it allows a linear or slightly curved drop, enhancing the composition with a clean graphic line.

Minimalism and material quality

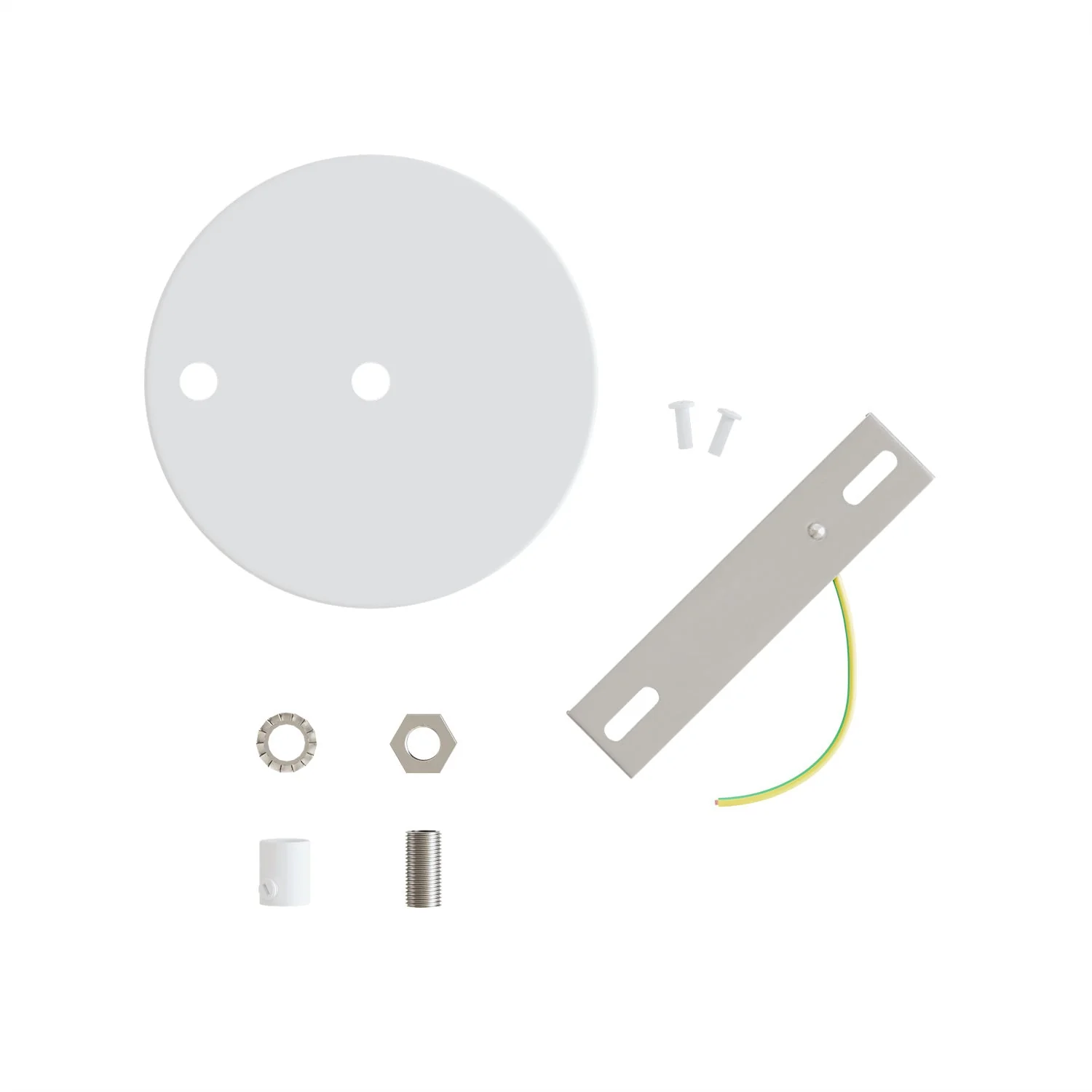

The matte white finish blends with light ceilings or creates a calibrated contrast on colored surfaces. The kit includes a matching round metal Strain relief for the side hole, ensuring aesthetic consistency and material continuity.

Important information

The central hole requires the separate purchase of an M10x1 tensioner and the related steel Cord.
Terminal blocks for the electrical connection and any additional threaded tube for the Strain relief are not included.

Shopping tips

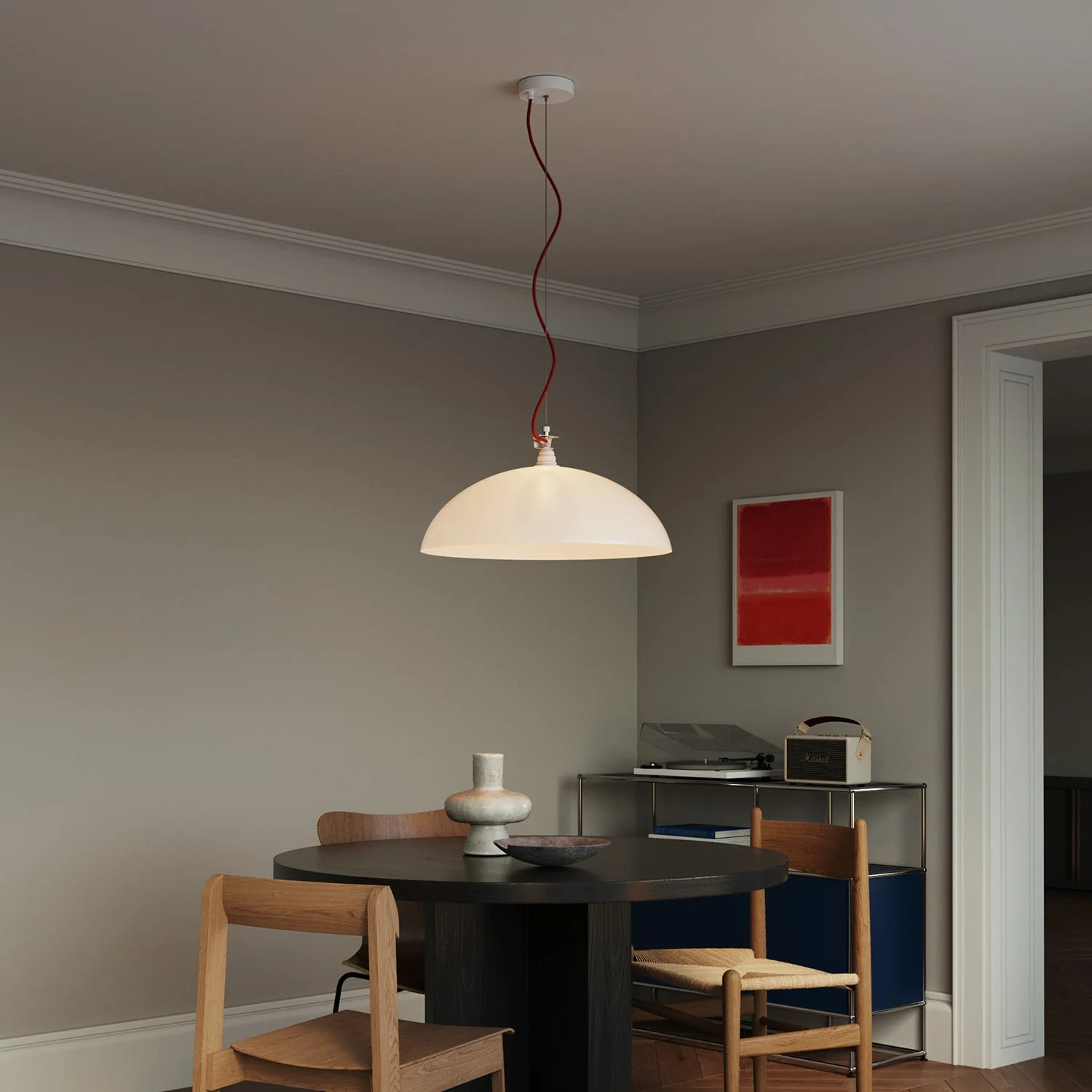

For a professional suspension, pair the Ceiling canopy with a millimetric balancing system and a contrasting textile Cord. It is the ideal solution to offset the light body or to achieve superior stability in more structured installations.

Technical specifications:

Caratteristiche rosone

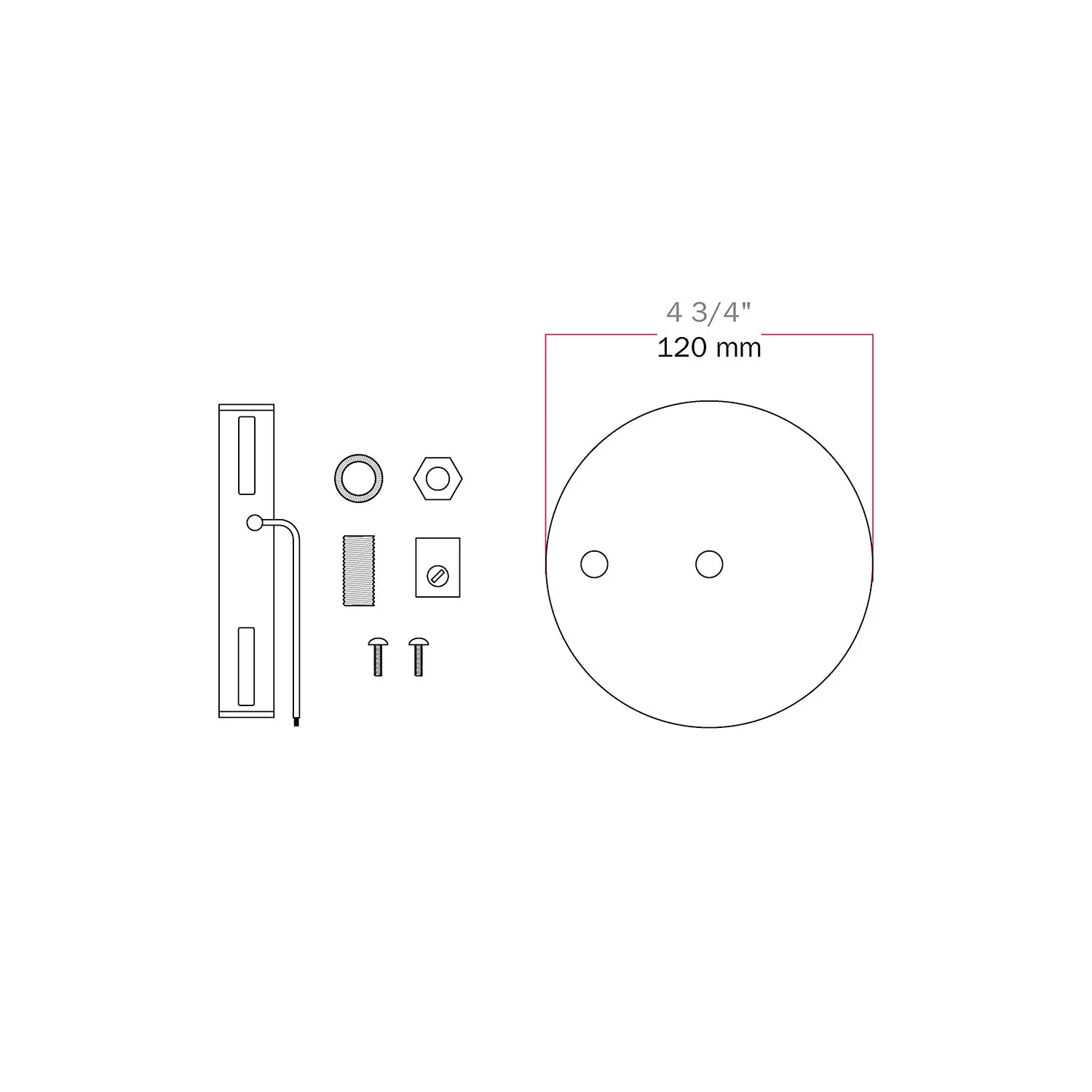

Diameter: 120 mm.

Height: 25 mm.

Material: High-quality metal.

Finish: Matte white.

Holes: 2 holes of 10 mm, 1 central and 1 offset.

Fixing: Ceiling closure via metal bracket.

Specific Strain relief included for side hole

Cap diameter: 13 mm.

Cap height: 17 mm.

Material: Matte white metal.

Threaded tube: M10x1 with 15 mm height.
