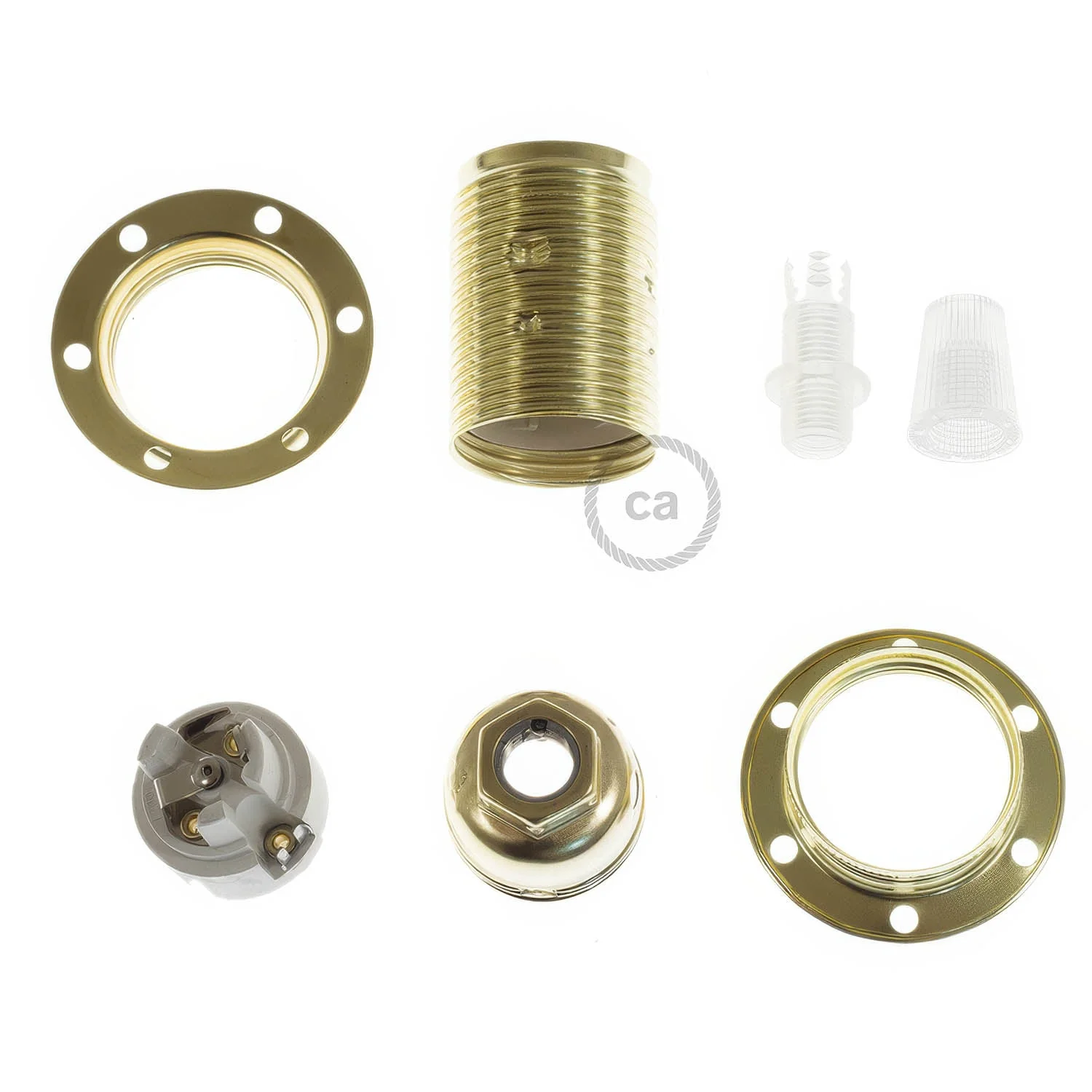

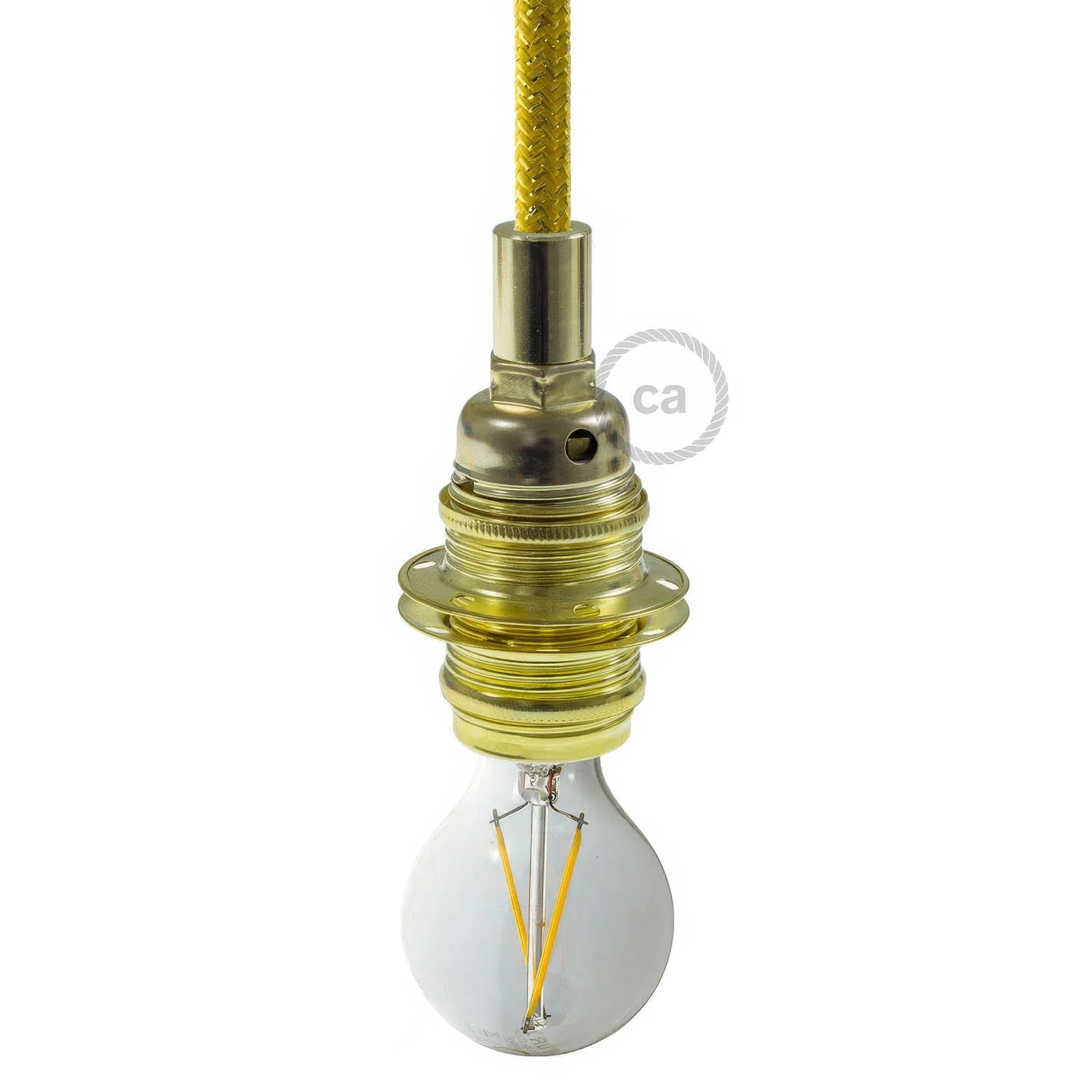

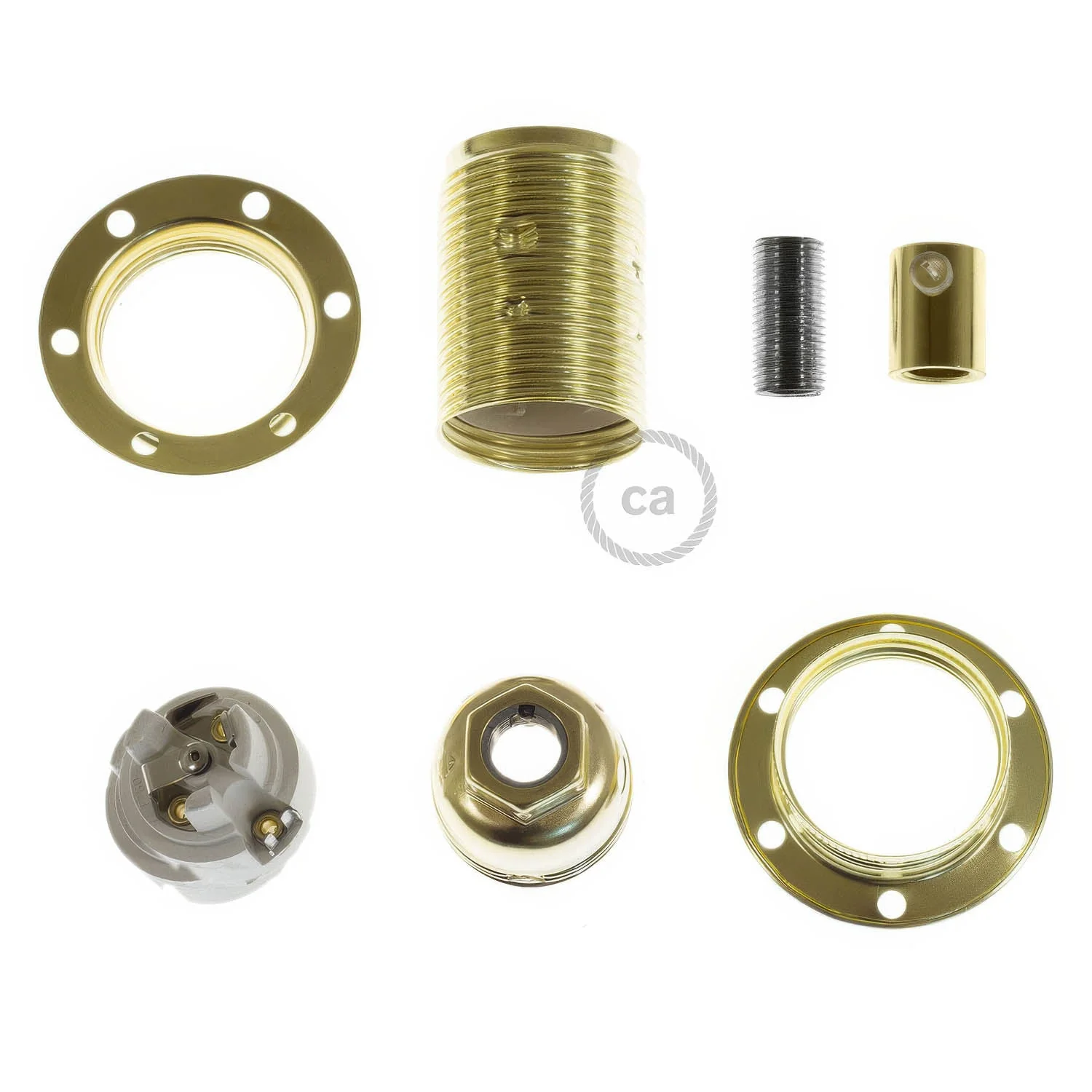

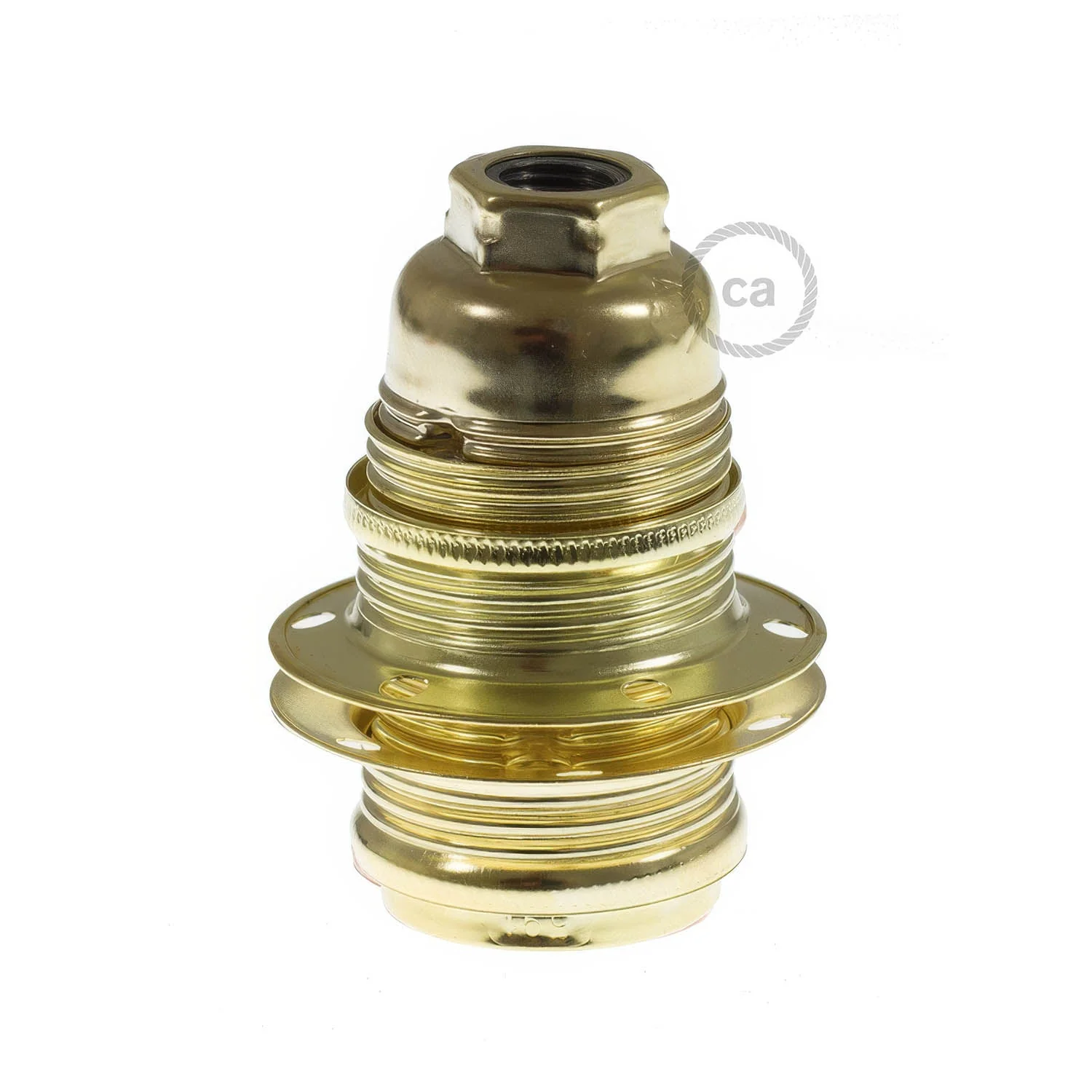

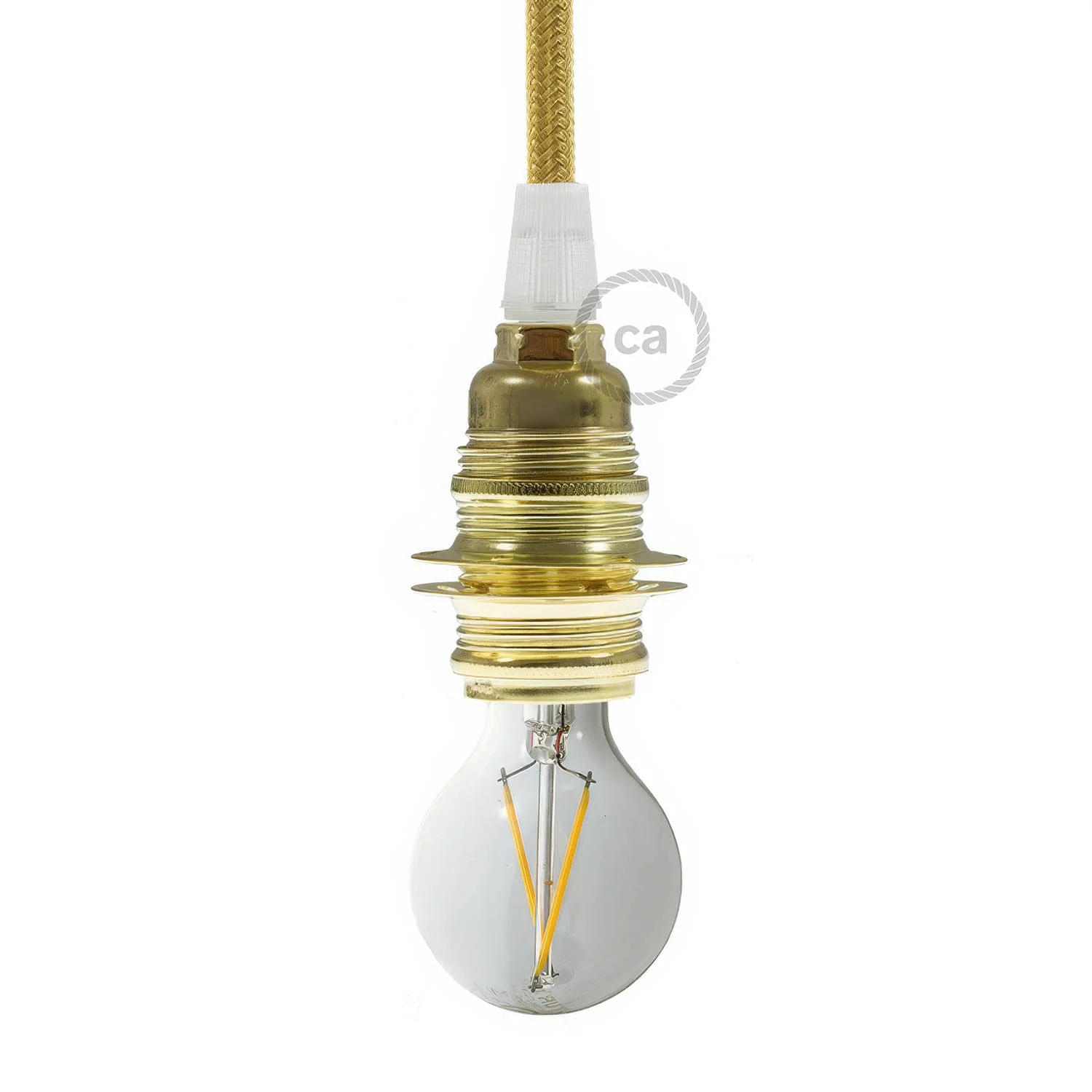

The E14 metal socket kit with double ring is used to assemble a wall, table, or ceiling lamp with a lampshade. The brass finish gives it a sophisticated, timeless allure: the golden tone enhances the lines of the socket and creates elegant accents in eclectic, classic, or modern settings.

The E14 metal socket kit with double ring for lampshade is perfect for you if:
- you want to use a shielding element
- you need to use a light bulb with E14 fitting
- you love a warm and refined metallic finish like brass.

To configure and complete the E14 metal threaded socket kit for lampshade:
- find out how to assemble the light socket with the dedicated tutorial
- complete your lighting installation with components, accessories, light bulbs, and fabric cables by Creative Cables.

Extra tip:
- match the E14 socket with a ceiling canopy in the same metallic finish.

The socket kit requires 3x0.75 cords.

Technical specifications:

Sheath: threaded.
Body: thermoset polyester T230 (Maximum operating temperature).
Rated voltage: 250 Vac.
Rated current: 2 A.
Terminals: screw type for solid or stranded wires from 0.5 ÷ 2.5 mm2.
Mounting: with M10x1 threaded hole.

Dimensions:
Diameter: 28 mm
Height: 58 mm
Ring diameter: 43 mm

Technical specifications for round strain relief:
Cap size: diameter 13 mm - height 17 mm.
Cap material: metal.
Threaded tube size: diameter M10x1 - height 15 mm.
Threaded tube material: metal.

Technical specifications for conical strain relief: Height: 43 mm Diameter: 14.8 mm Material: thermoplastic
