Connection kit with protective box for cords and double strain relief

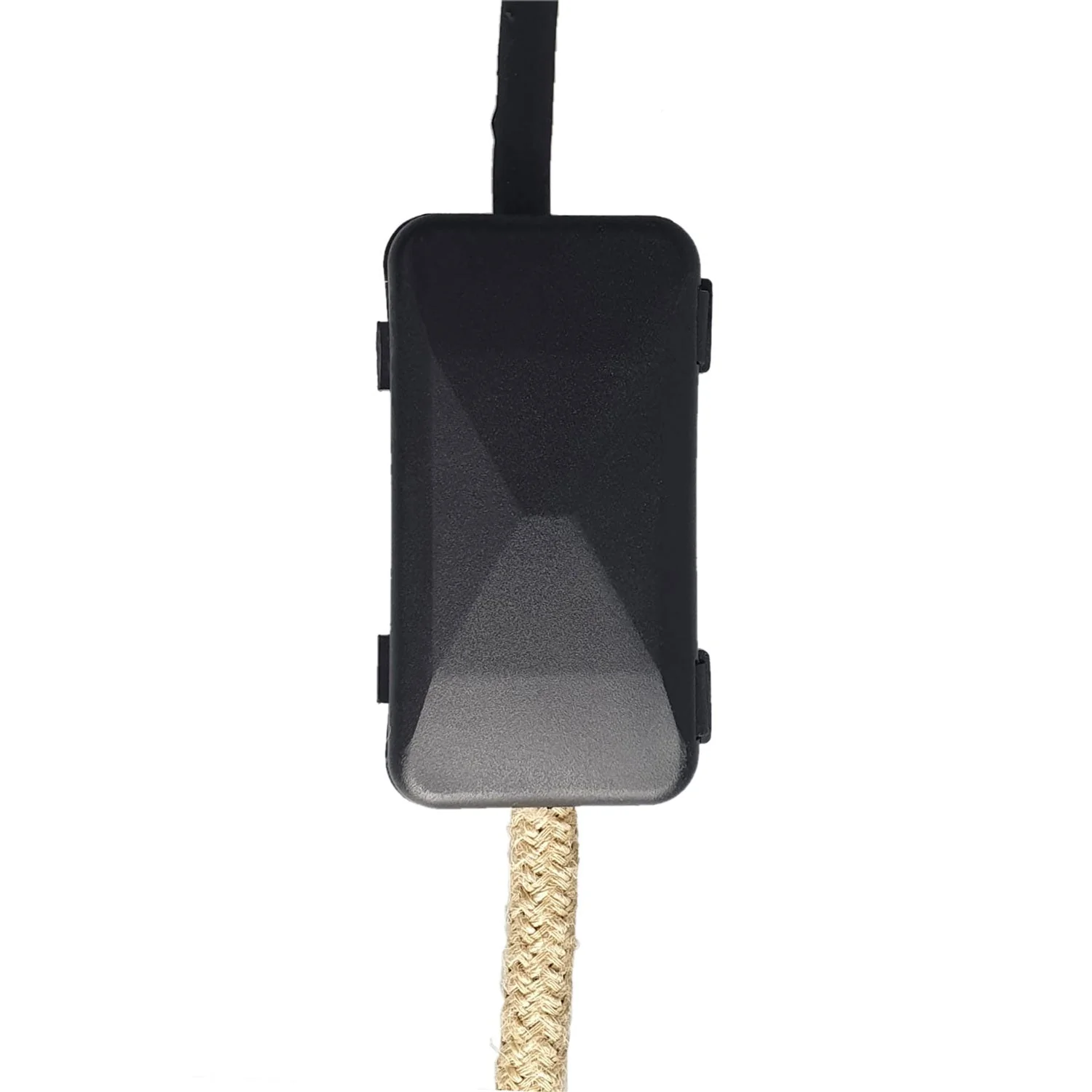

The suspension connection kit with flush-mount ceiling canopy allows for quick and safe connections.

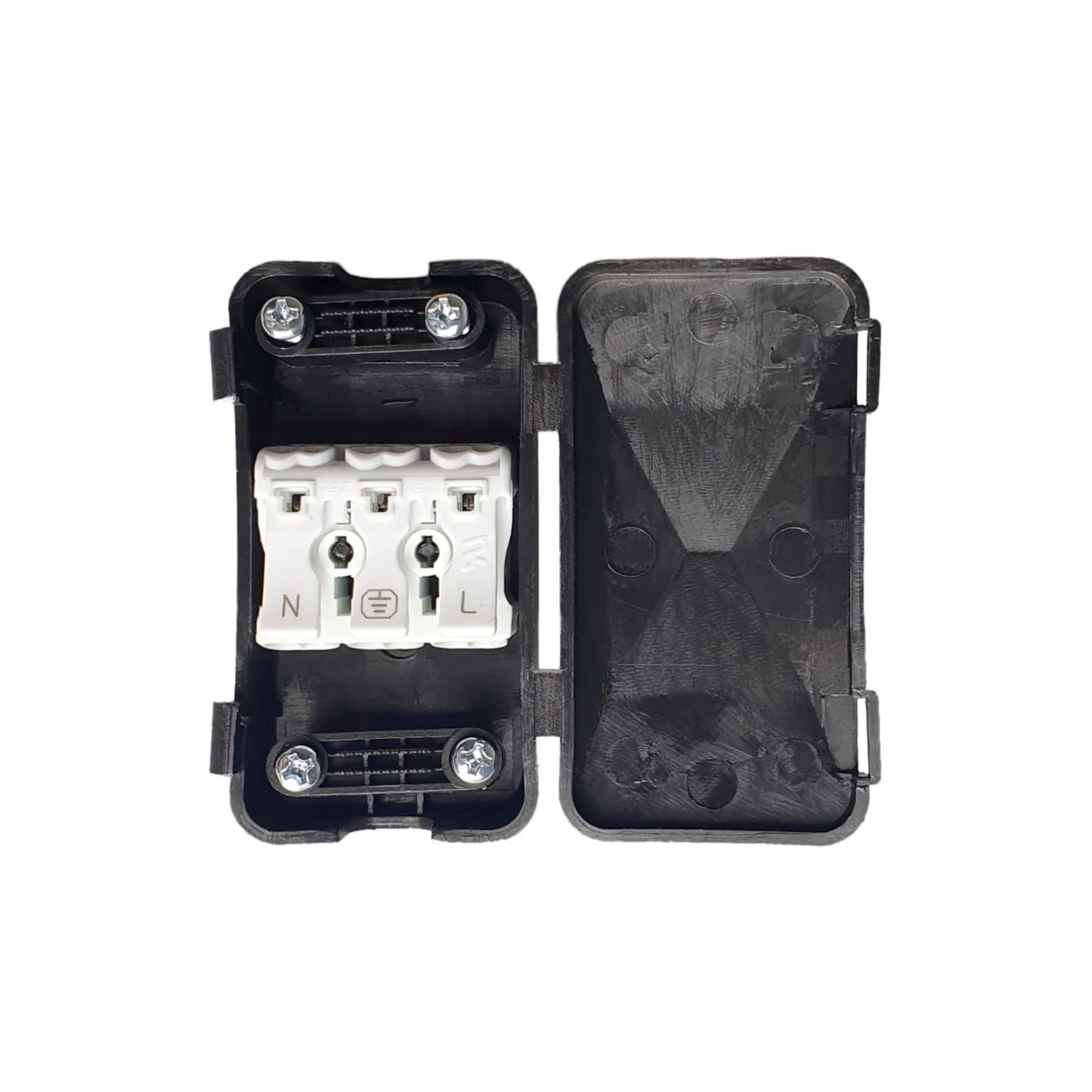

The plastic box serves as insulation, protecting the connectors inside. It is also equipped with two strain reliefs, one on each side, ensuring the cables’ safety and stability in case of external stress.
By hiding the connection inside the plasterboard false ceiling, you can replace a classic ceiling canopy with the recessed ceiling canopy for a simple and minimal attachment.
Technical specifications:
Connection kit with protective box and double strain relief:
Length: 62 mm
Width: 34 mm
Height: 21 mm
1 connector - 2 inputs for each pole Number of inputs per side: 6 Accepted cord cross-section: from 0.75 mm2 to 2.5 mm2 Rated voltage: 450 V Rated current: 24 A Maximum ambient temperature according to EN 60998: 85° C Suitable for class 1 devices
The suspension connection kit with flush-mount ceiling canopy allows for quick and safe connections.
The plastic box serves as insulation, protecting the connectors inside. It is also equipped with two strain reliefs, one on each side, ensuring the cables’ safety and stability in case of external stress.
By hiding the connection inside the plasterboard false ceiling, you can replace a classic ceiling canopy with the recessed ceiling canopy for a simple and minimal attachment.
Technical specifications:
Connection kit with protective box and double strain relief:
Length: 62 mm
Width: 34 mm
Height: 21 mm
1 connector - 2 inputs for each pole Number of inputs per side: 6 Accepted cord cross-section: from 0.75 mm2 to 2.5 mm2 Rated voltage: 450 V Rated current: 24 A Maximum ambient temperature according to EN 60998: 85° C Suitable for class 1 devices
Original: $4.37
-70%$4.37
$1.31Description
The suspension connection kit with flush-mount ceiling canopy allows for quick and safe connections.
The plastic box serves as insulation, protecting the connectors inside. It is also equipped with two strain reliefs, one on each side, ensuring the cables’ safety and stability in case of external stress.
By hiding the connection inside the plasterboard false ceiling, you can replace a classic ceiling canopy with the recessed ceiling canopy for a simple and minimal attachment.
Technical specifications:
Connection kit with protective box and double strain relief:
Length: 62 mm
Width: 34 mm
Height: 21 mm
1 connector - 2 inputs for each pole Number of inputs per side: 6 Accepted cord cross-section: from 0.75 mm2 to 2.5 mm2 Rated voltage: 450 V Rated current: 24 A Maximum ambient temperature according to EN 60998: 85° C Suitable for class 1 devices
