Electronic kit for 5V USB-C battery-powered lamps with smooth E27 socket - Black
5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A solution intended for those who create bespoke lamp bodies, functional prototypes or 3D-printed projects, with a modular and technical approach.
At the heart of the system is a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronics to be separated from the Light bulb and the components to be arranged freely within the project.
The kit includes a smooth black E27 Socket in thermoplastic, designed to be integrated or completely hidden inside the lamp body. This configuration makes it particularly suitable for artisanal creations, 3D-printed lamps or custom structures.
Light control is managed by a button with integrated dimmer, offering three brightness levels plus OFF function. The system is compatible with 5V E27 Light bulbs and makes it possible to create battery-powered lamps that are practical, repairable and designed for easy long-term maintenance.
Assembly is intuitive and requires no soldering or special tools. All connections are designed to be secured with a standard screwdriver, making the kit suitable both for prototyping and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:

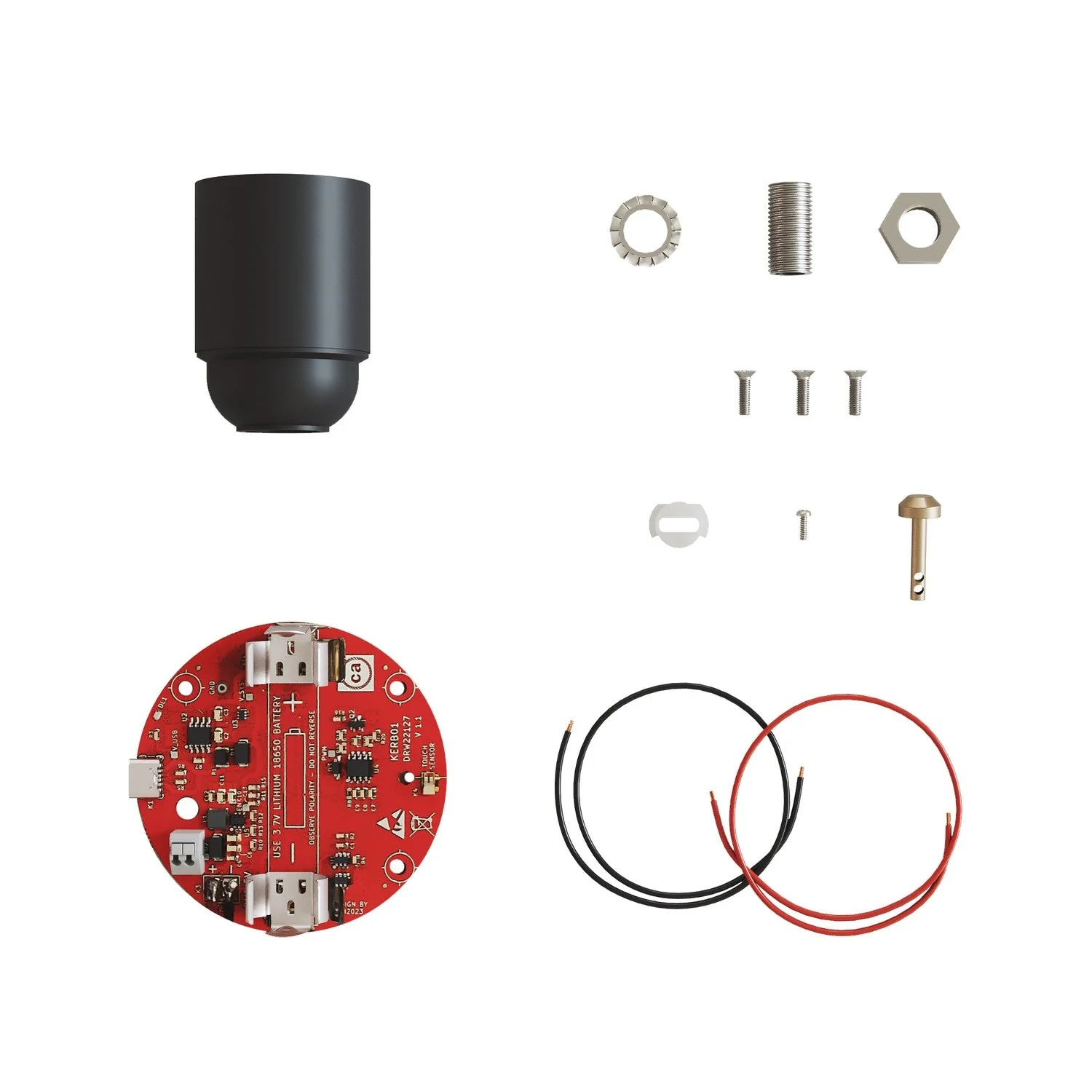

Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Smooth E27 Socket in thermoplastic
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A solution intended for those who create bespoke lamp bodies, functional prototypes or 3D-printed projects, with a modular and technical approach.
At the heart of the system is a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronics to be separated from the Light bulb and the components to be arranged freely within the project.
The kit includes a smooth black E27 Socket in thermoplastic, designed to be integrated or completely hidden inside the lamp body. This configuration makes it particularly suitable for artisanal creations, 3D-printed lamps or custom structures.
Light control is managed by a button with integrated dimmer, offering three brightness levels plus OFF function. The system is compatible with 5V E27 Light bulbs and makes it possible to create battery-powered lamps that are practical, repairable and designed for easy long-term maintenance.
Assembly is intuitive and requires no soldering or special tools. All connections are designed to be secured with a standard screwdriver, making the kit suitable both for prototyping and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:
Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Smooth E27 Socket in thermoplastic
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
Original: $30.33
-70%$30.33
$9.10Description
5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A solution intended for those who create bespoke lamp bodies, functional prototypes or 3D-printed projects, with a modular and technical approach.
At the heart of the system is a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronics to be separated from the Light bulb and the components to be arranged freely within the project.
The kit includes a smooth black E27 Socket in thermoplastic, designed to be integrated or completely hidden inside the lamp body. This configuration makes it particularly suitable for artisanal creations, 3D-printed lamps or custom structures.
Light control is managed by a button with integrated dimmer, offering three brightness levels plus OFF function. The system is compatible with 5V E27 Light bulbs and makes it possible to create battery-powered lamps that are practical, repairable and designed for easy long-term maintenance.
Assembly is intuitive and requires no soldering or special tools. All connections are designed to be secured with a standard screwdriver, making the kit suitable both for prototyping and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:
Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Smooth E27 Socket in thermoplastic
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
