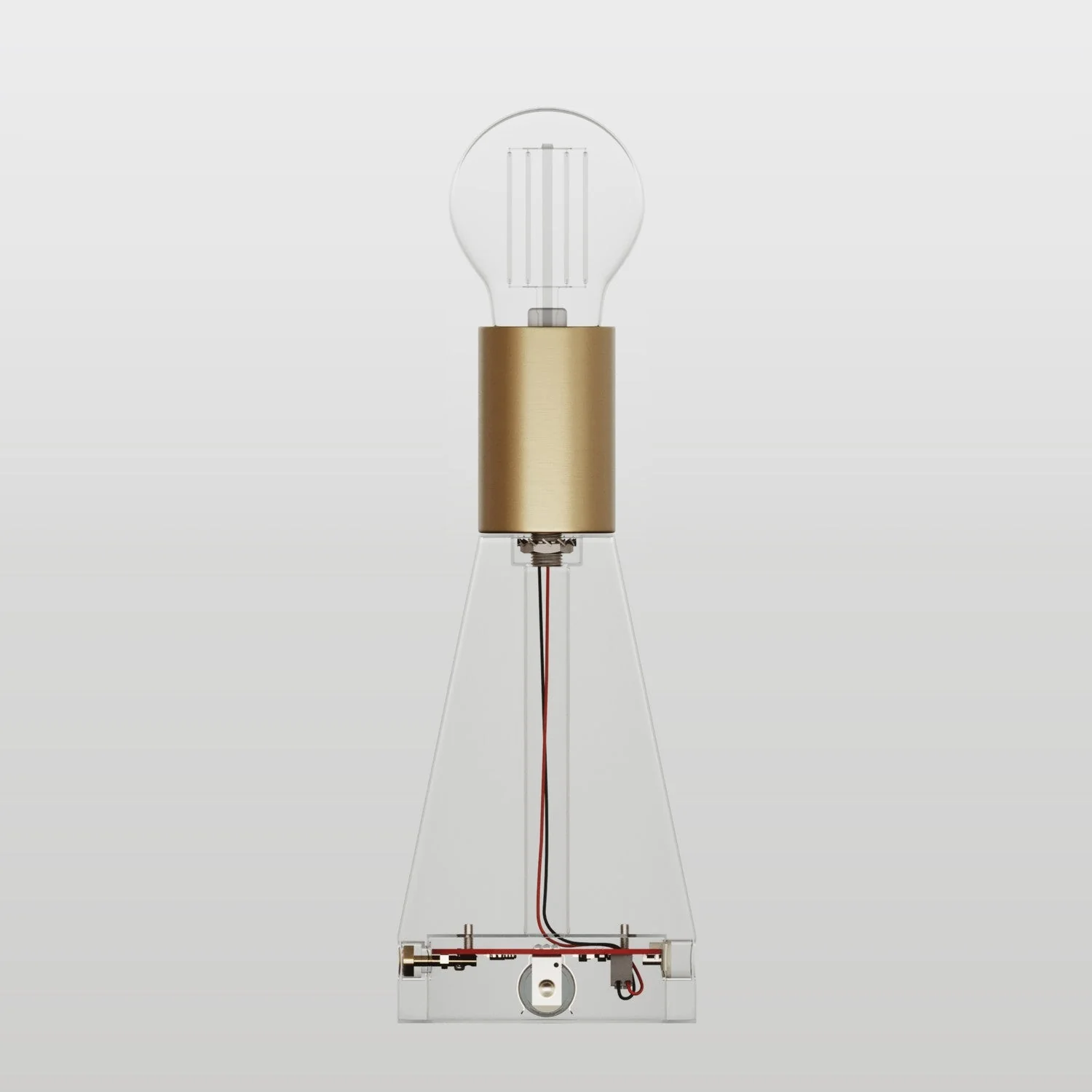

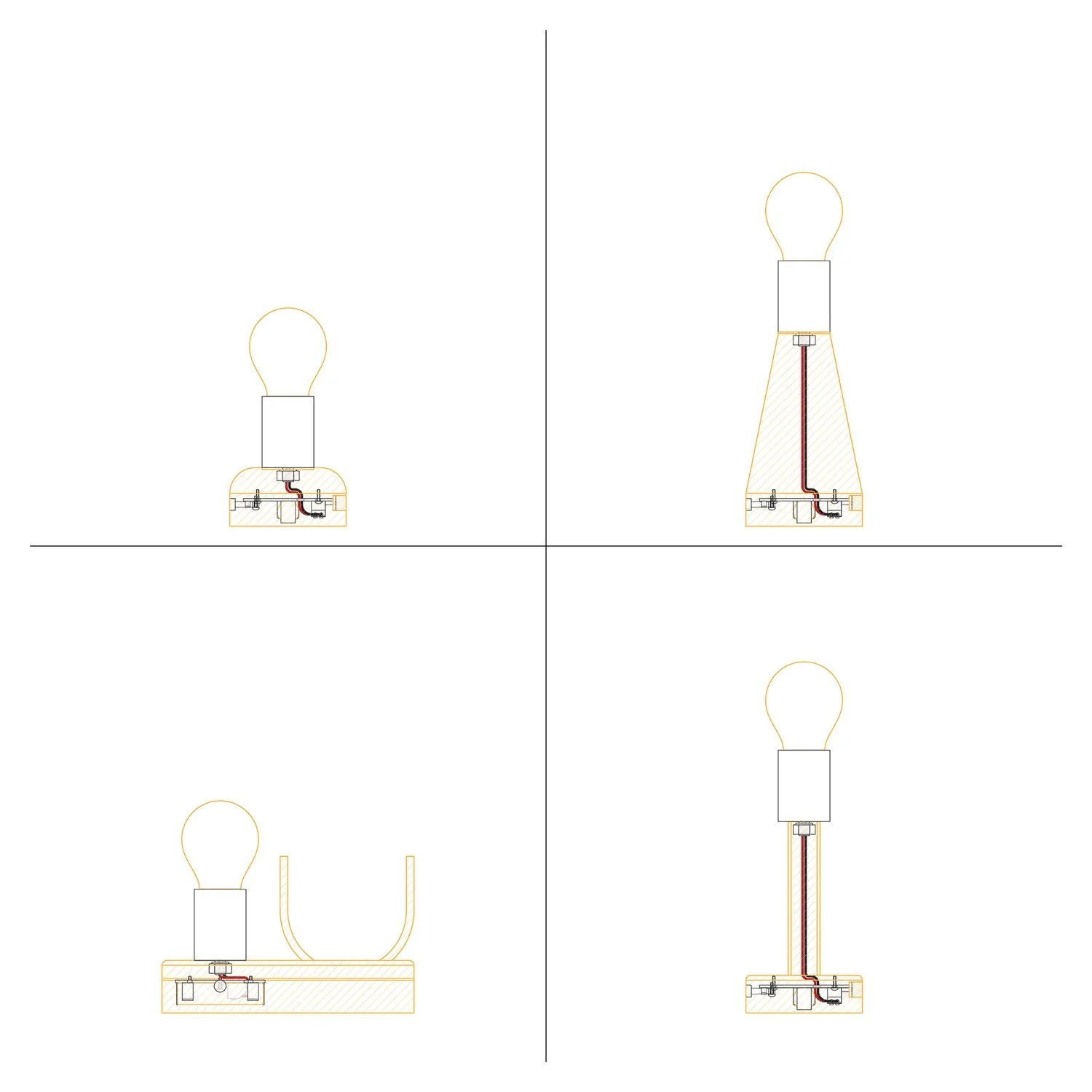

5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. It is a technical solution dedicated to makers and designers who develop bespoke lamps, prototypes, or lamp bodies made with 3D printing.

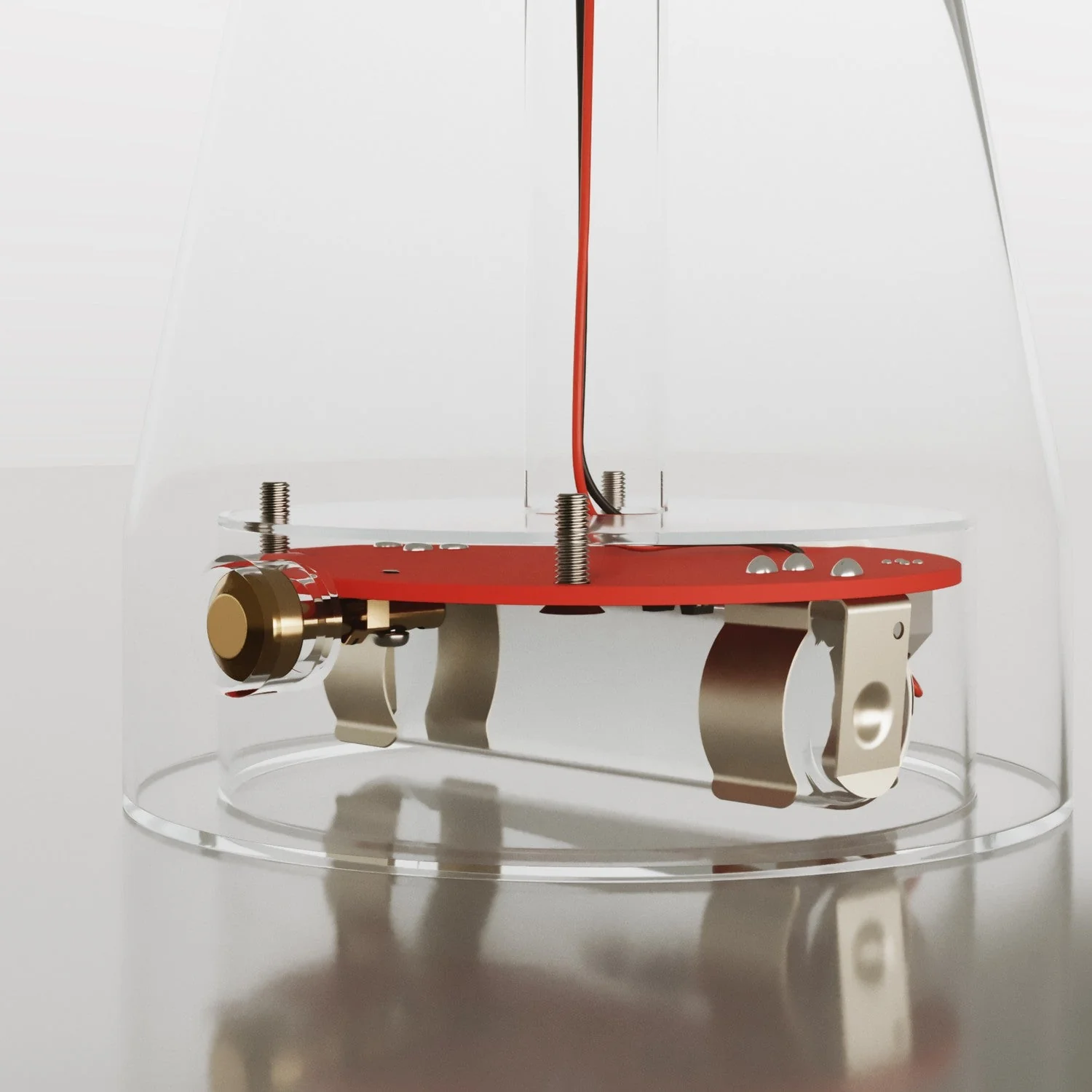

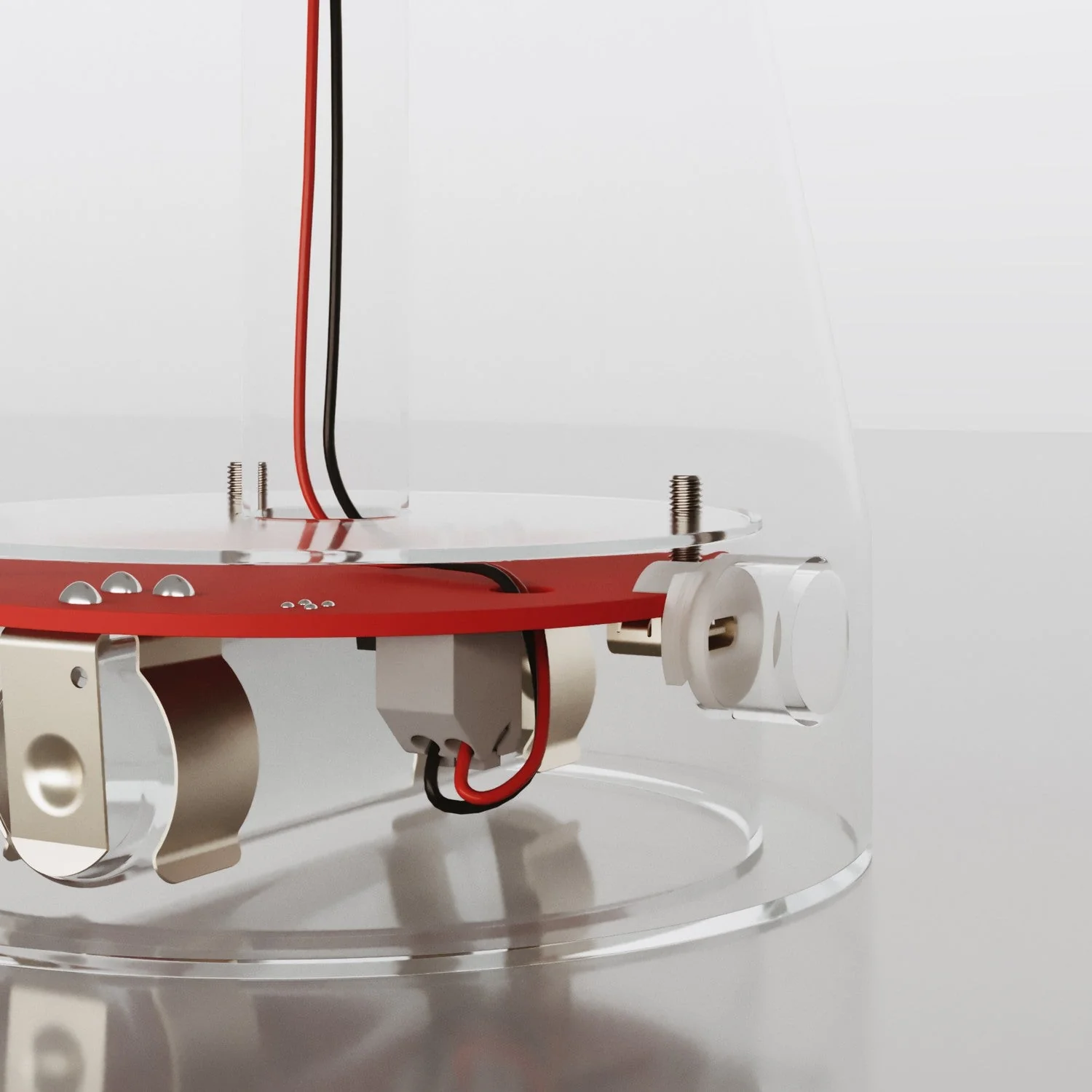

The system consists of a round electronic board with 5V power supply via USB C and 5V output for the light source. The connection to the Socket is made using low-voltage cables, allowing the electronics to be separated from the Light bulb and the components to be arranged freely within the project.

The kit includes a smooth E27 Socket with satin bronze finish, designed to remain visible as part of the lamp configuration.

Brightness is managed via a push button with integrated dimmer, with three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is suitable for creating battery-powered lamps designed to be repairable and maintainable.

Assembly requires neither soldering nor special tools. All connections are designed to be secured with a standard screwdriver, making the kit suitable both for the development phase and for small-scale production.

The system is compatible with 18650-format rechargeable Li-ion batteries, which are easy to find and replace when needed. The battery is not included.

Technical specifications:

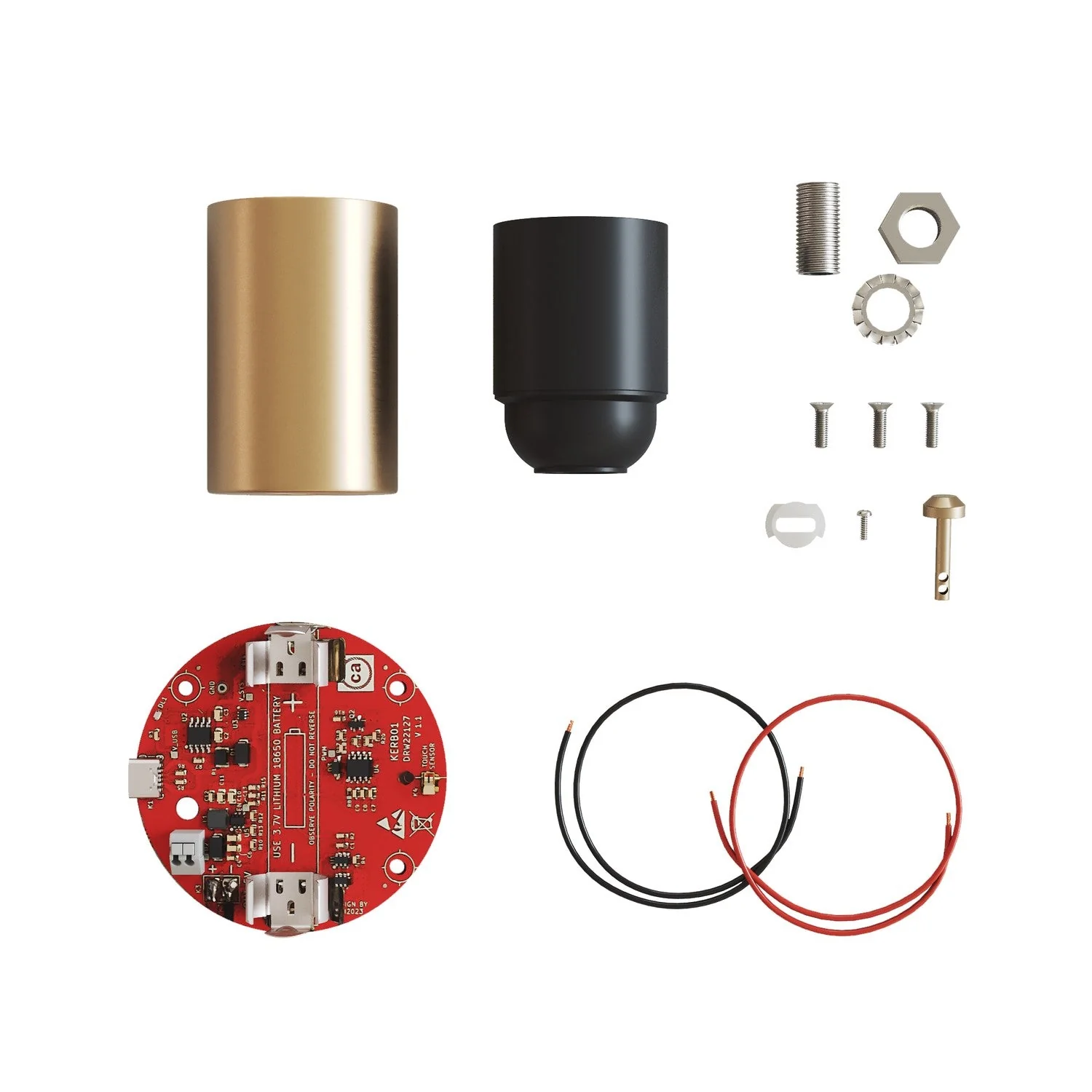

Kit composed of:

• Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
• Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
• Transparent silicone adapter Ø 12 mm
• Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
• Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
• M2.5x11 fixing screws for mounting the board onto the base
• Metal fixing rod M10x1 length 25 mm complete with nut and washer
• Cylindrical E27 Socket in metal

The system works exclusively with 5 Volt Light bulbs.

Li-ion battery in 18650 format, charging accessories and light bulb not included.
