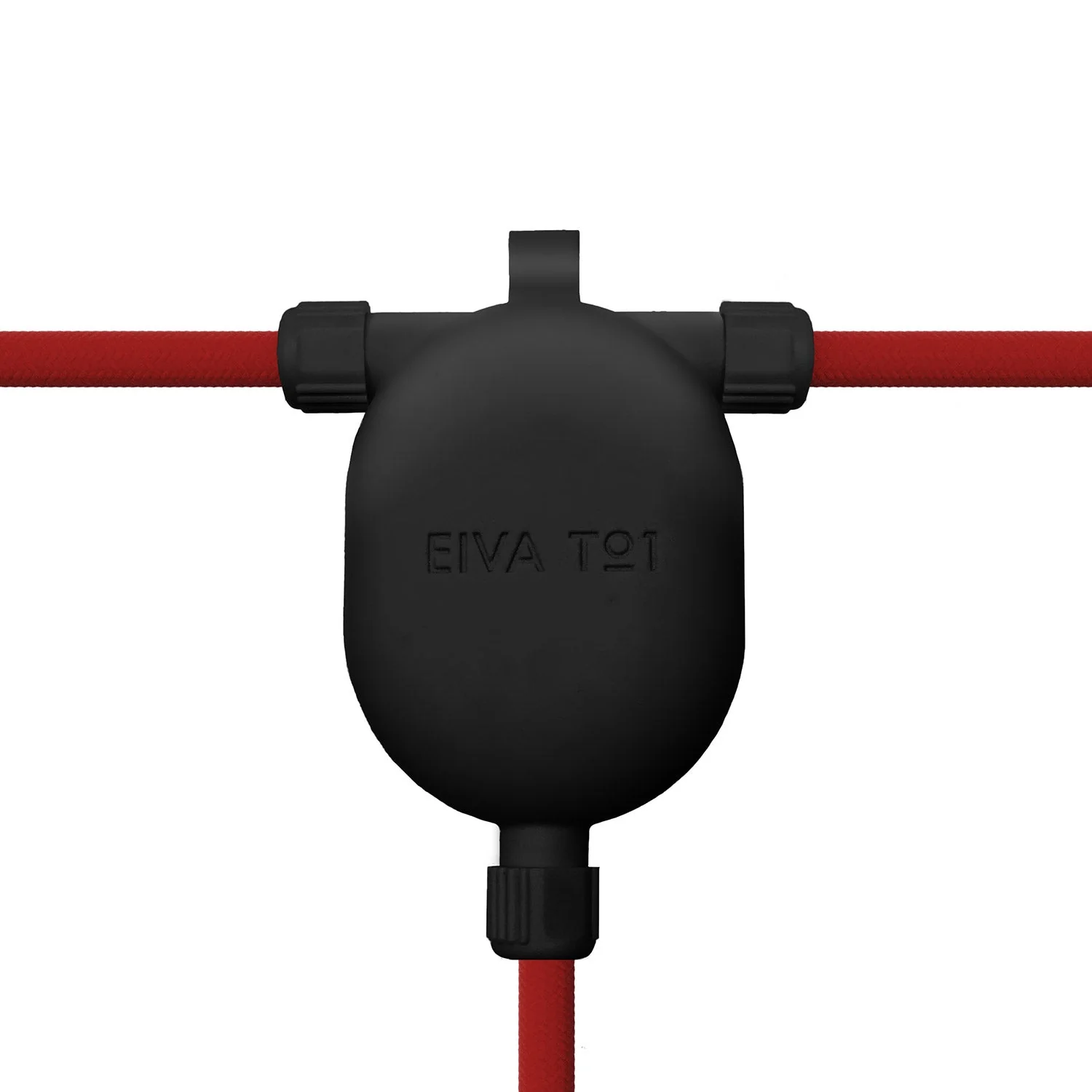

EIVA-3 3-way IP65 joint for outdoor use - Modulair System - Black
EIVA-3 Black is the "T" connector with IP65 protection rating from the Modulair outdoor line: the world’s first IP65 outdoor lighting system that can be wired, perfect for creating custom installations with bold design. The special insulating gel inside ensures total resistance to rain and storms, with an elegant and modern touch.

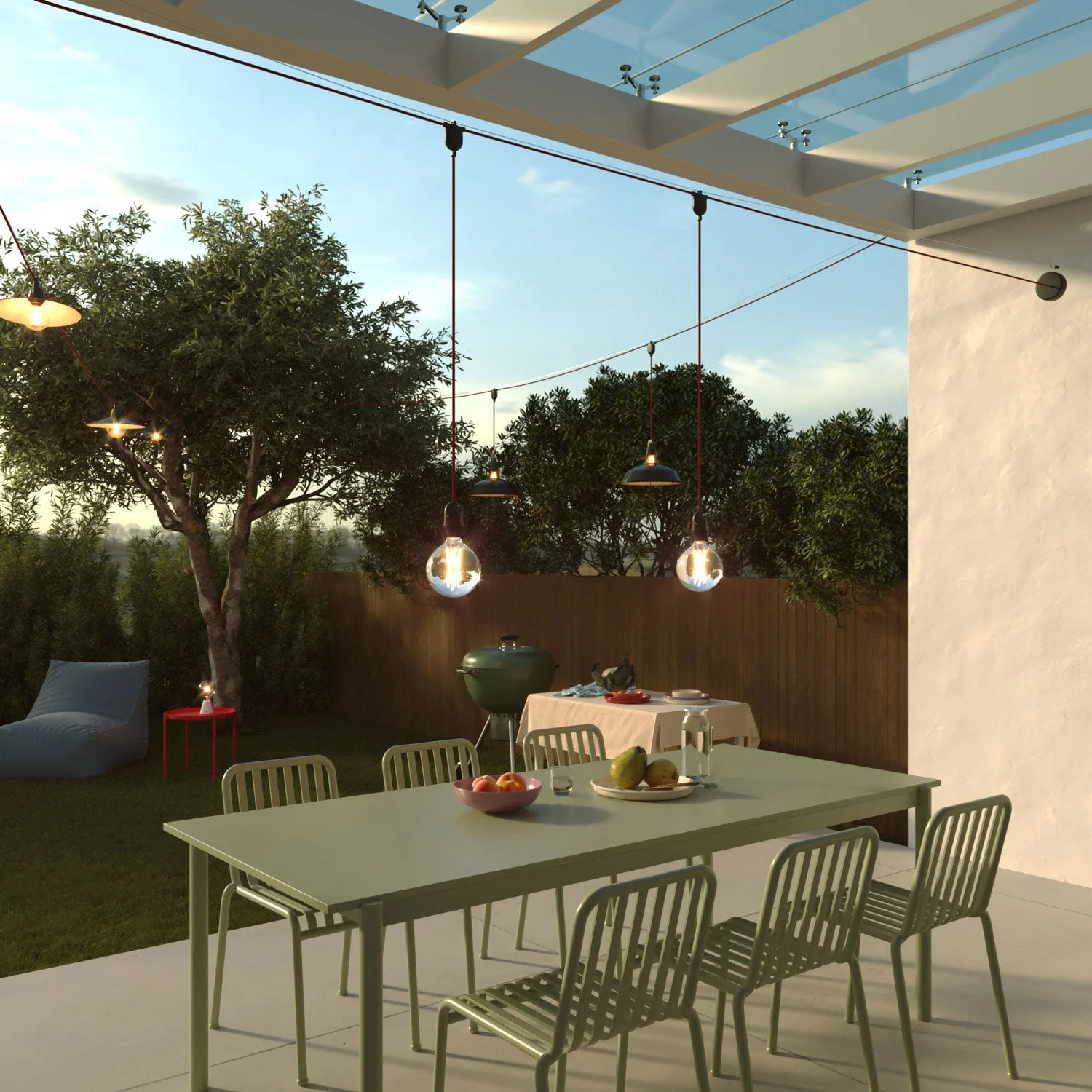

Practical and quick to assemble, EIVA-3 Black allows you to create numerous outdoor lighting configurations using existing connections. Assembly is snap-fit, with no tools required: you can create pendants with exposed light bulbs or with lampshades, or arrange garland crossings that form a dramatic lattice of lights.
With EIVA-3 Black you have the freedom to choose the number, distance, and length of the light drops, bringing light wherever you want. The upper ring allows you to attach the joint anywhere, from a pergola to a wall. In addition, the matching side cap included in the kit allows it to be used as an end piece, ensuring aesthetic consistency.
EIVA-3 Black is a product designed, engineered, and manufactured by EIVA in Italy.
Technical specifications:
EIVA-3, 3-way outdoor connector:
Connection device for lighting fixtures CE 60598-1
Material: thermoplastic, pre-filled with insulating gel
Height: 115mm
Width: 75mm
Thickness: 26mm
Rated voltage: 110/250 V ac
Compatible with H05RN-F 2x1mm2 cords
Class: II
Protection rating: IP65
Includes strain relief, a silicone cap for side holes, and a hook for ceiling mounting.
The maximum load supported by the wired cords is 1.5 kg.
EIVA-3 Black is the "T" connector with IP65 protection rating from the Modulair outdoor line: the world’s first IP65 outdoor lighting system that can be wired, perfect for creating custom installations with bold design. The special insulating gel inside ensures total resistance to rain and storms, with an elegant and modern touch.
Practical and quick to assemble, EIVA-3 Black allows you to create numerous outdoor lighting configurations using existing connections. Assembly is snap-fit, with no tools required: you can create pendants with exposed light bulbs or with lampshades, or arrange garland crossings that form a dramatic lattice of lights.
With EIVA-3 Black you have the freedom to choose the number, distance, and length of the light drops, bringing light wherever you want. The upper ring allows you to attach the joint anywhere, from a pergola to a wall. In addition, the matching side cap included in the kit allows it to be used as an end piece, ensuring aesthetic consistency.
EIVA-3 Black is a product designed, engineered, and manufactured by EIVA in Italy.
Technical specifications:
EIVA-3, 3-way outdoor connector:
Connection device for lighting fixtures CE 60598-1
Material: thermoplastic, pre-filled with insulating gel
Height: 115mm
Width: 75mm
Thickness: 26mm
Rated voltage: 110/250 V ac
Compatible with H05RN-F 2x1mm2 cords
Class: II
Protection rating: IP65
Includes strain relief, a silicone cap for side holes, and a hook for ceiling mounting.
The maximum load supported by the wired cords is 1.5 kg.
