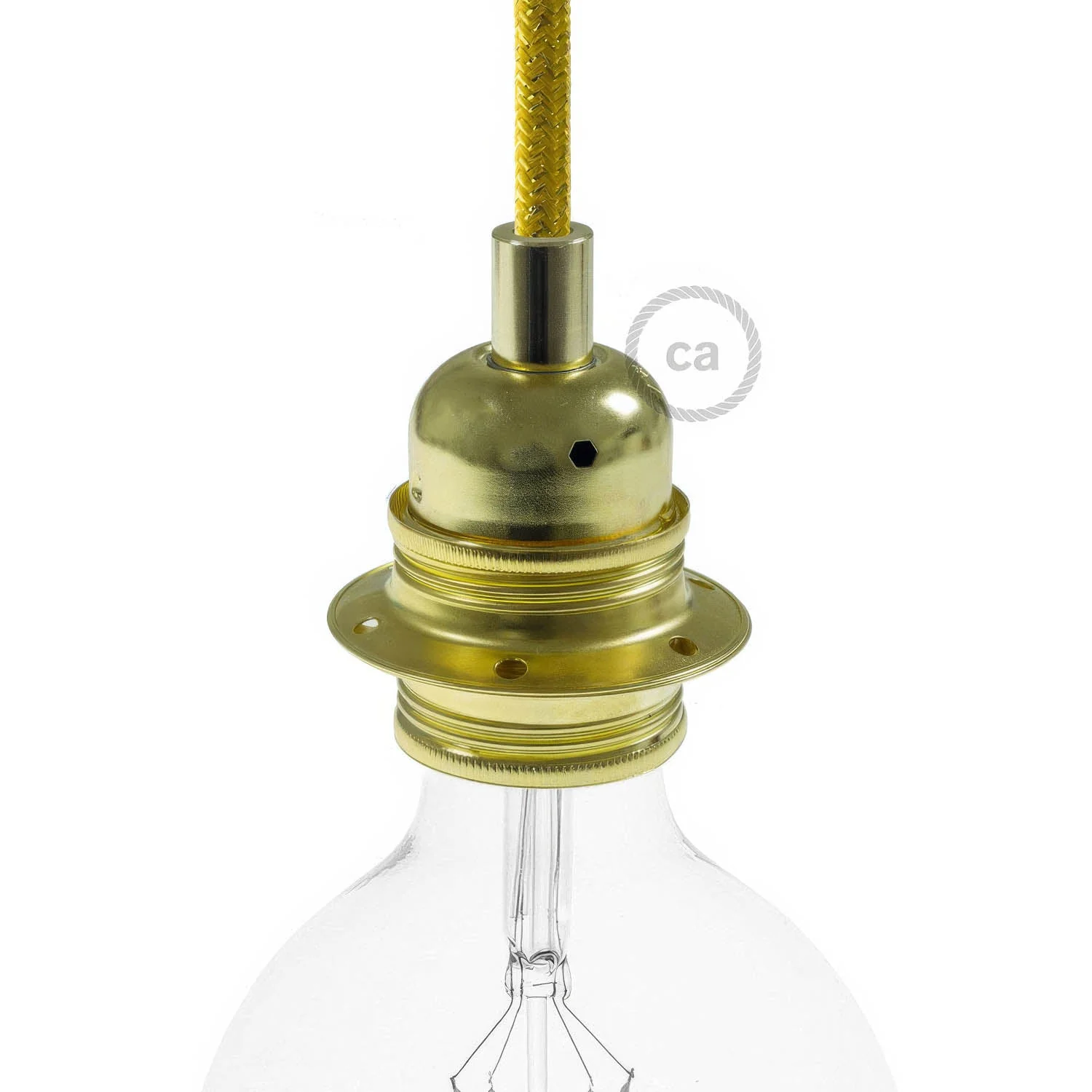

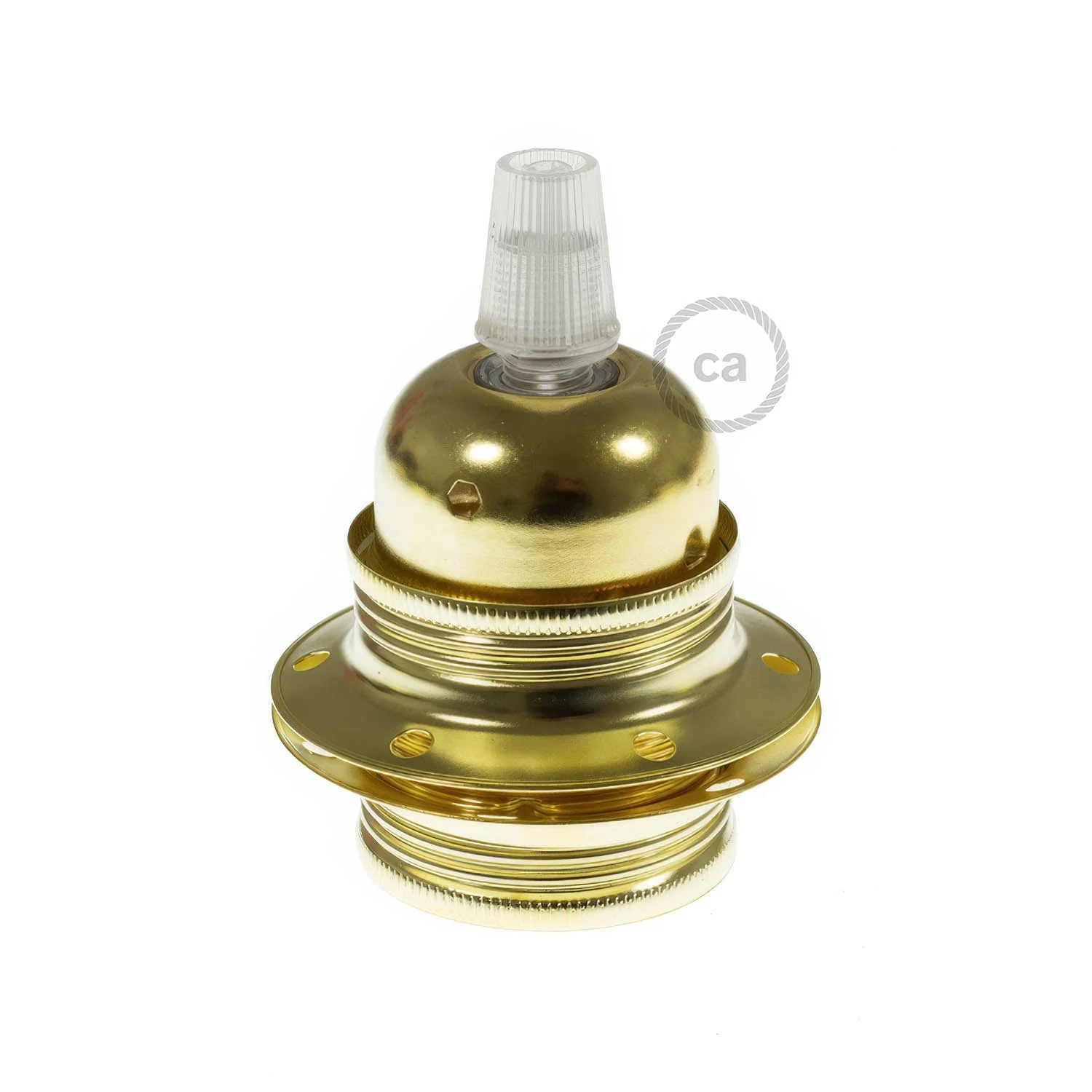

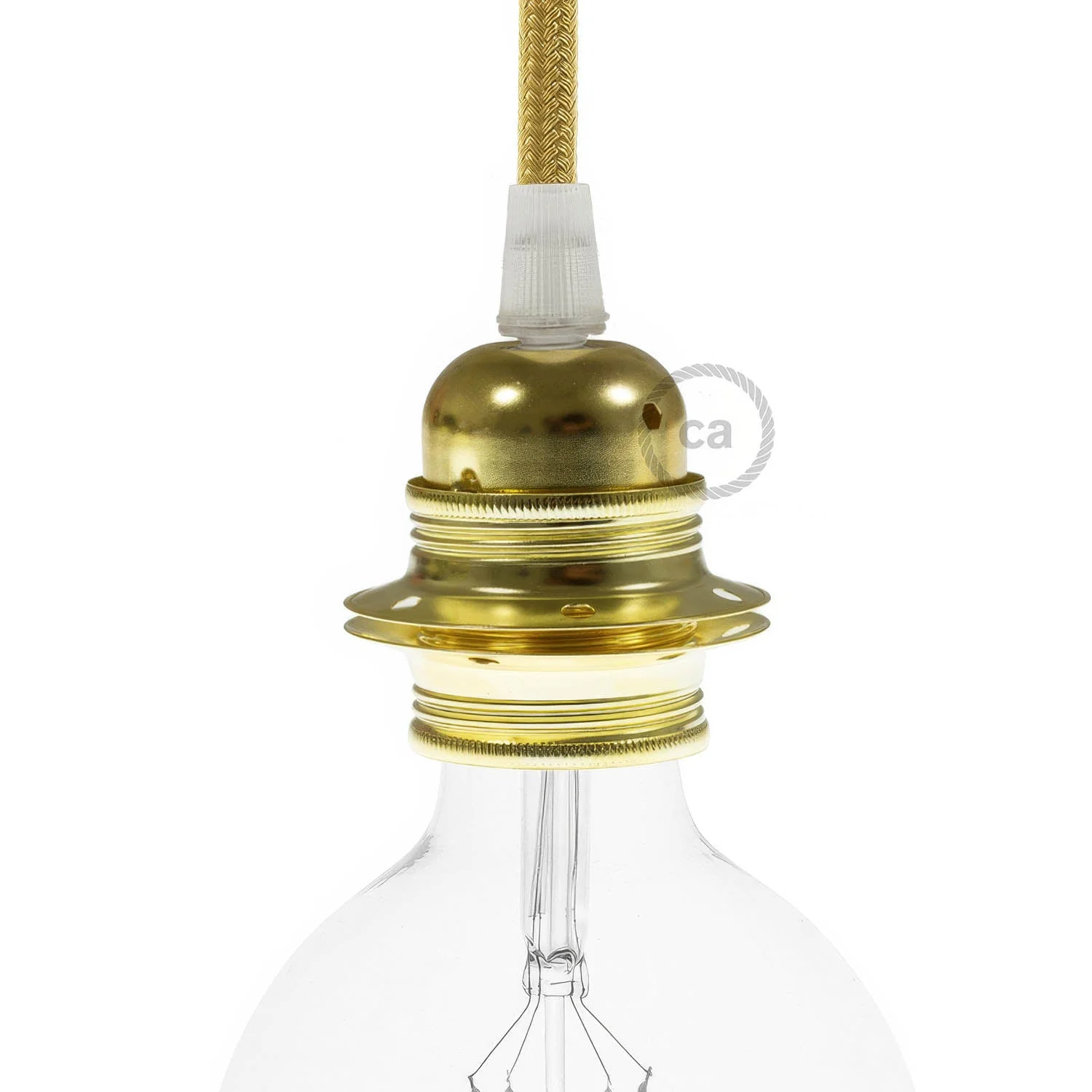

E27 metal socket kit with double ring for lampshade - Brass
The E27 metal socket kit with double ring is used to assemble a wall, table, or ceiling lamp equipped with a lampshade.
The brass finish lends a sophisticated, timeless allure: the golden tone illuminates the lines with a precious accent that pairs beautifully with refined woods and fabrics.
A complete range of finishes helps you find the perfect match: glossy metal surfaces like brass, silver, and copper are ideal for elegant spaces; if you prefer a pop of color, Lemon offers a contemporary accent.
An extra idea:
- pair it with a flat lampshade like Ellepi or a cage lampshade like Diamond, which leave the light socket E27 partially visible!
The socket kit requires 3x0.75 cords.
Technical specifications:

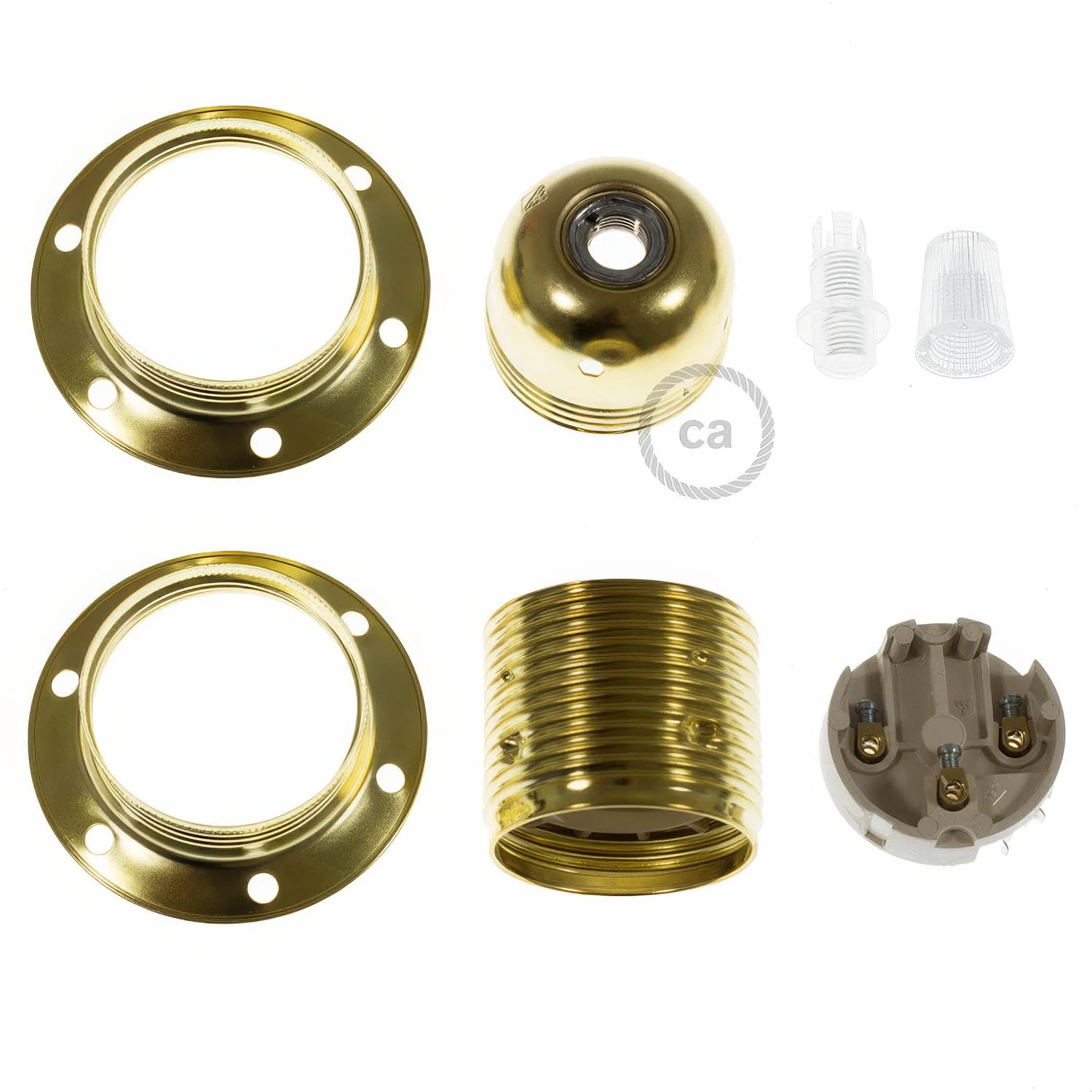

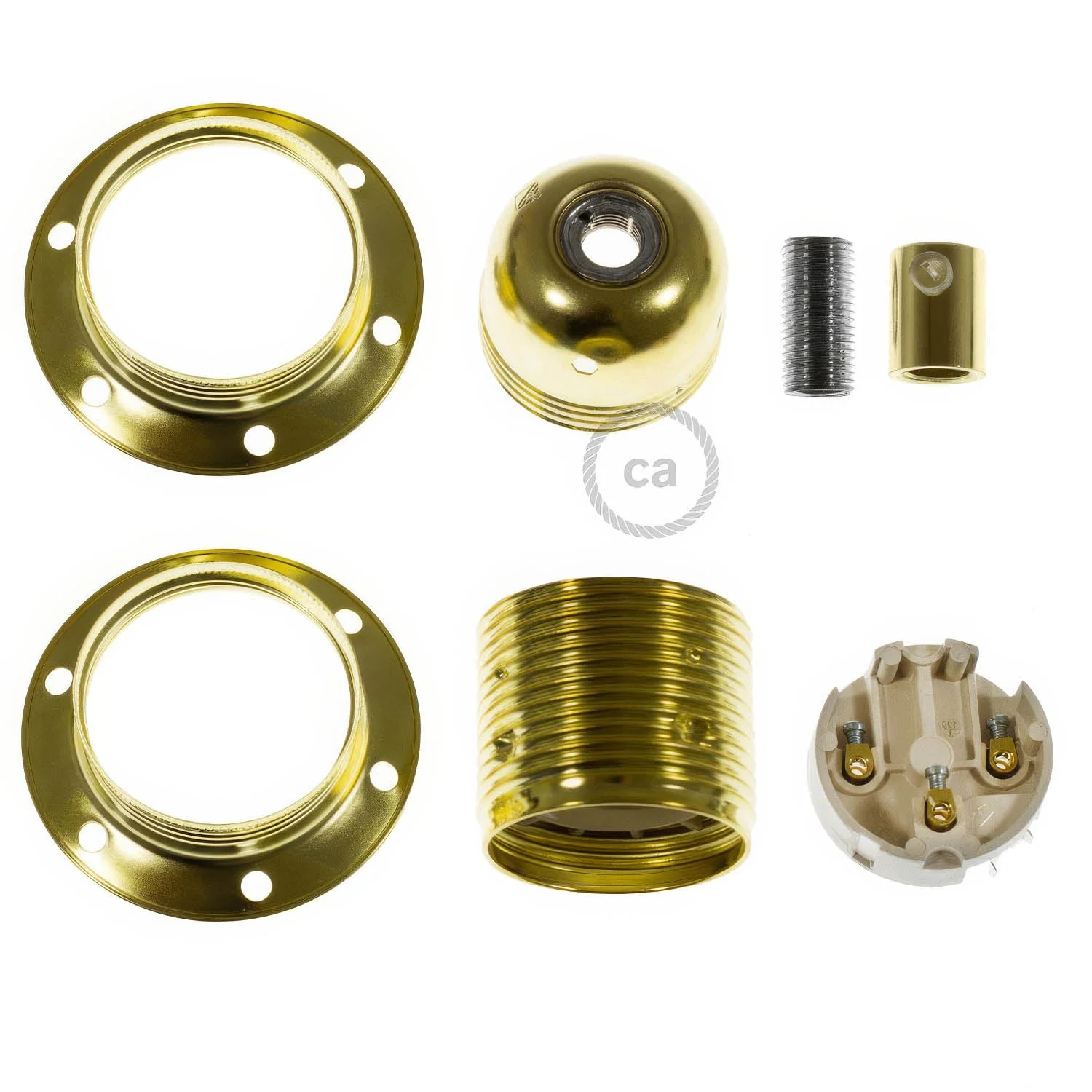

E27 metal socket kit with double ring:
Sleeve: threaded
Dimensions:
Diameter: 40 mm
Height: 55 mm
Ring diameter: 60 mm
Core: thermoset polyester T230 (Maximum operating temperature)
Rated voltage: 250 Vac
Rated current: 4 A
Terminals: screw terminals for solid or flexible wires from 0.5 ÷ 2.5 mm2
Mounting: with M10x1 threaded hole
Technical specifications for cylindrical strain relief cord:
Cap size: diameter 13 mm - height 17 mm
Cap material: metal
Threaded tube size: diameter M10x1 - height 15 mm
Threaded tube material: metal
Technical specifications for conical strain relief:
Height: 43mm
Diameter: 14.8 mm
Material: thermoplastic
