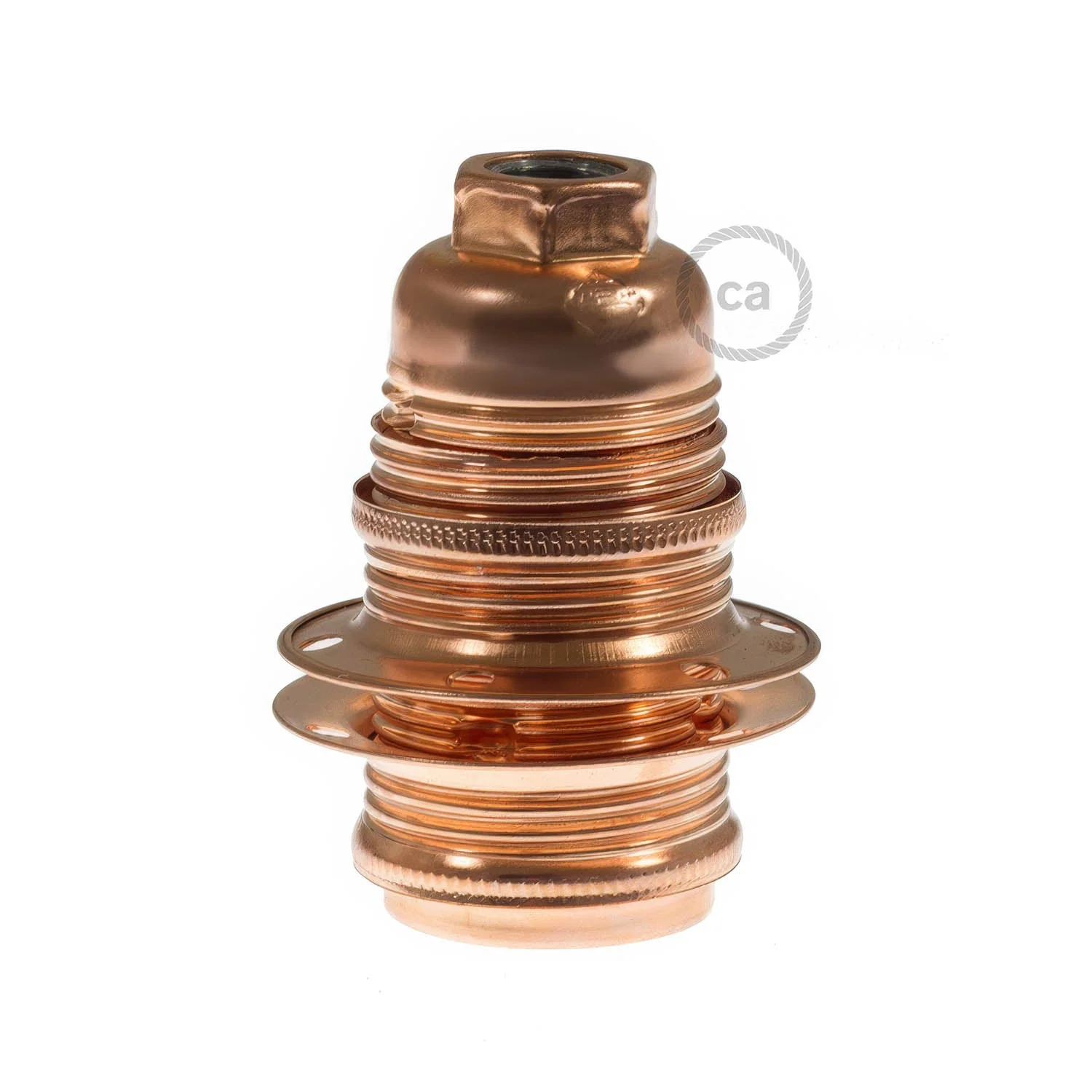

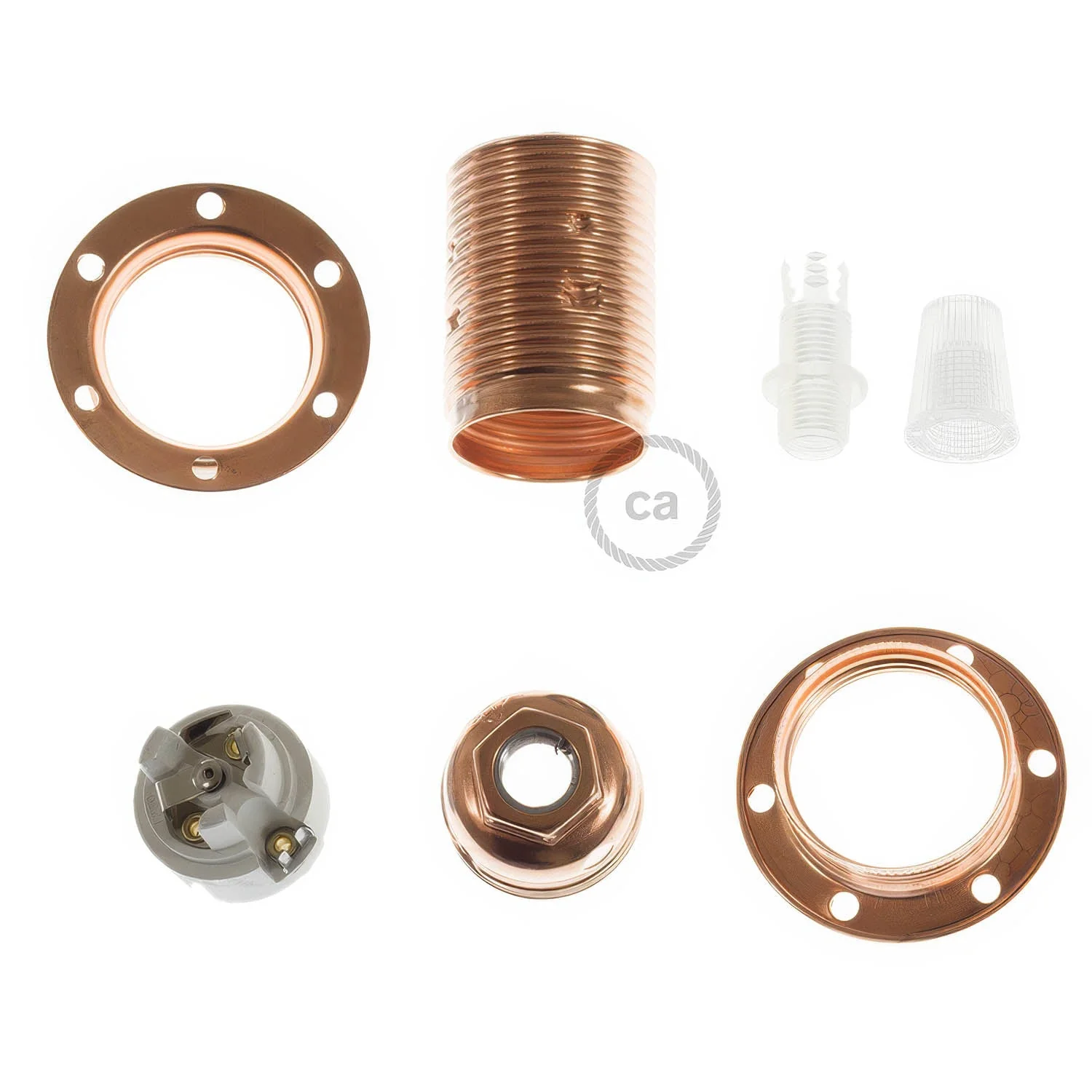

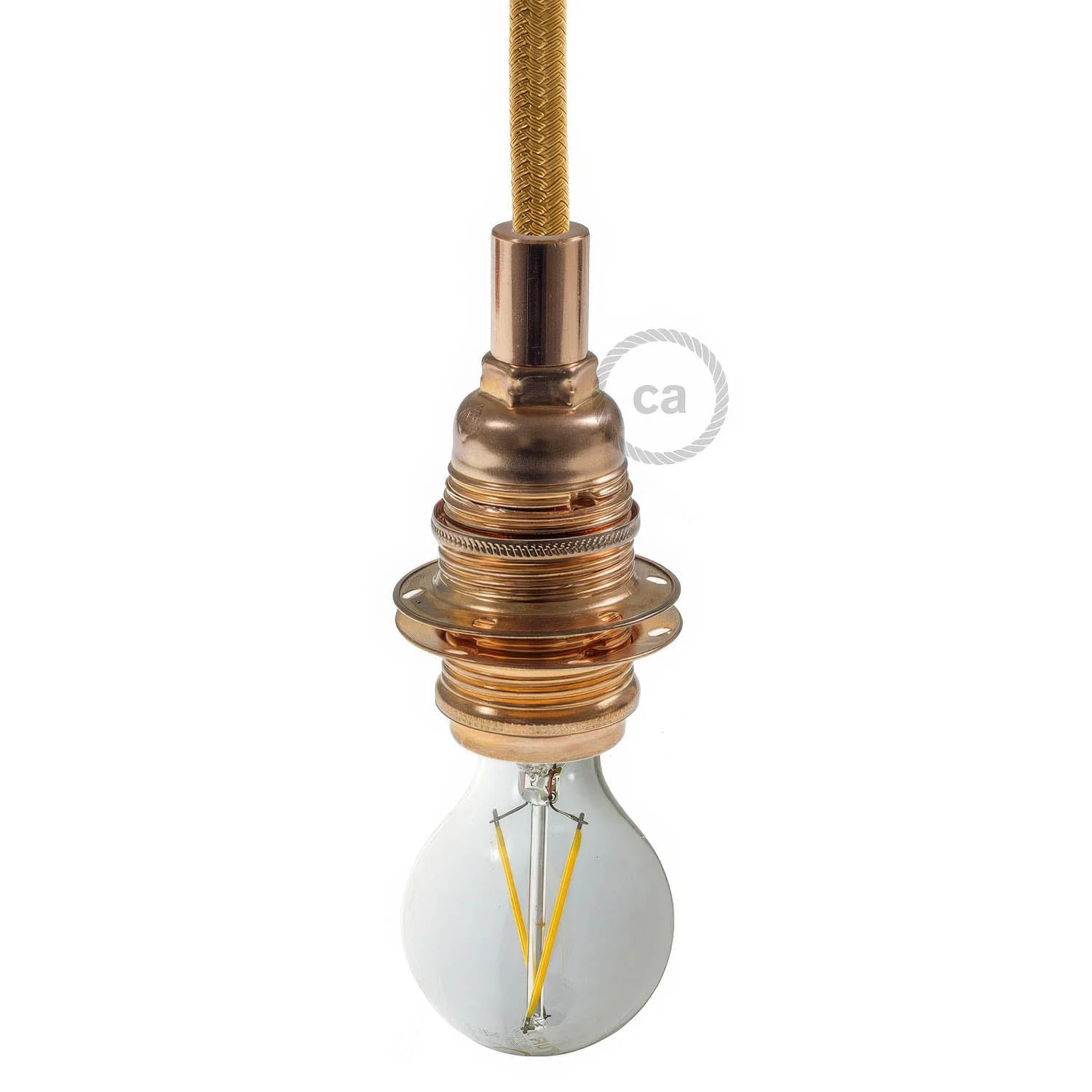

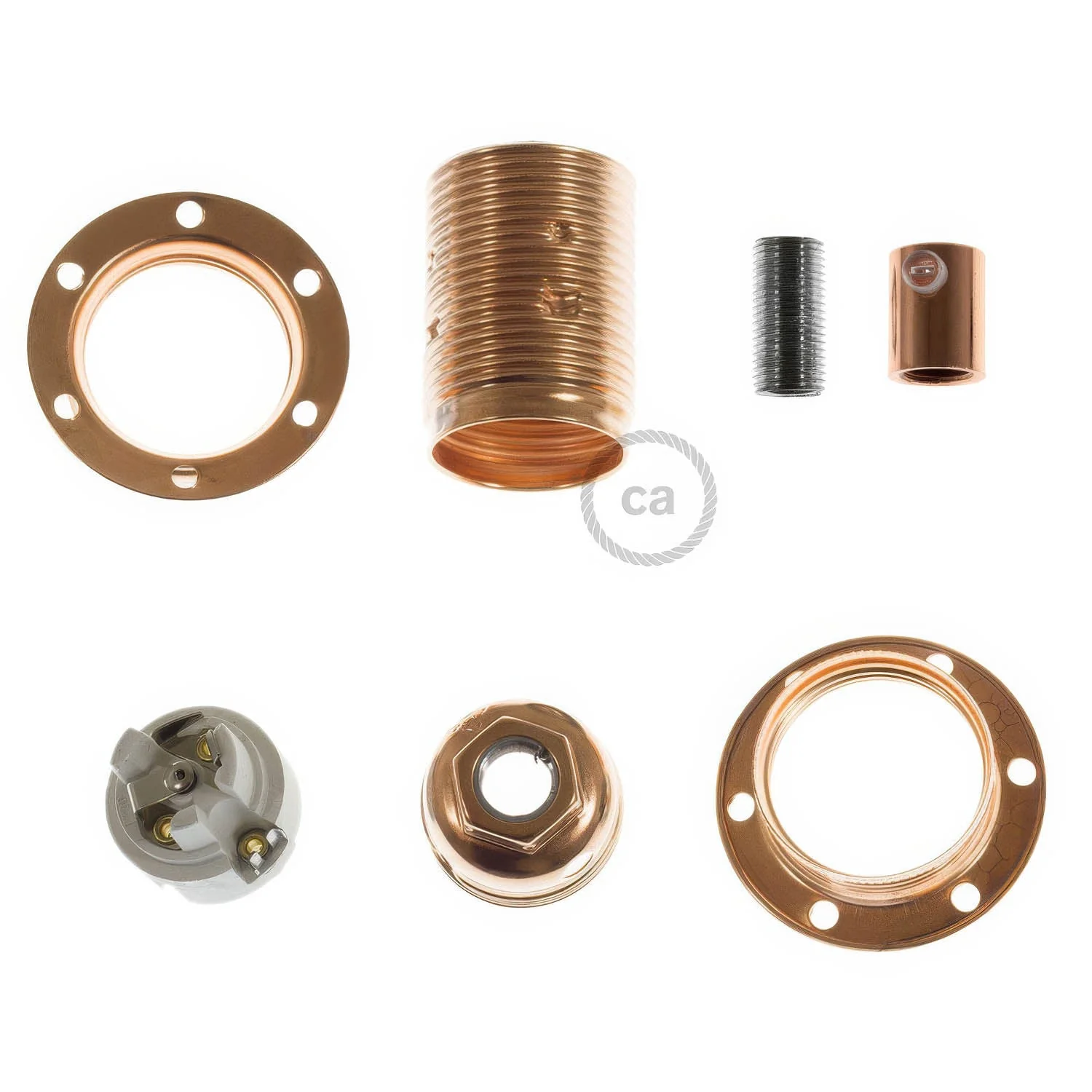

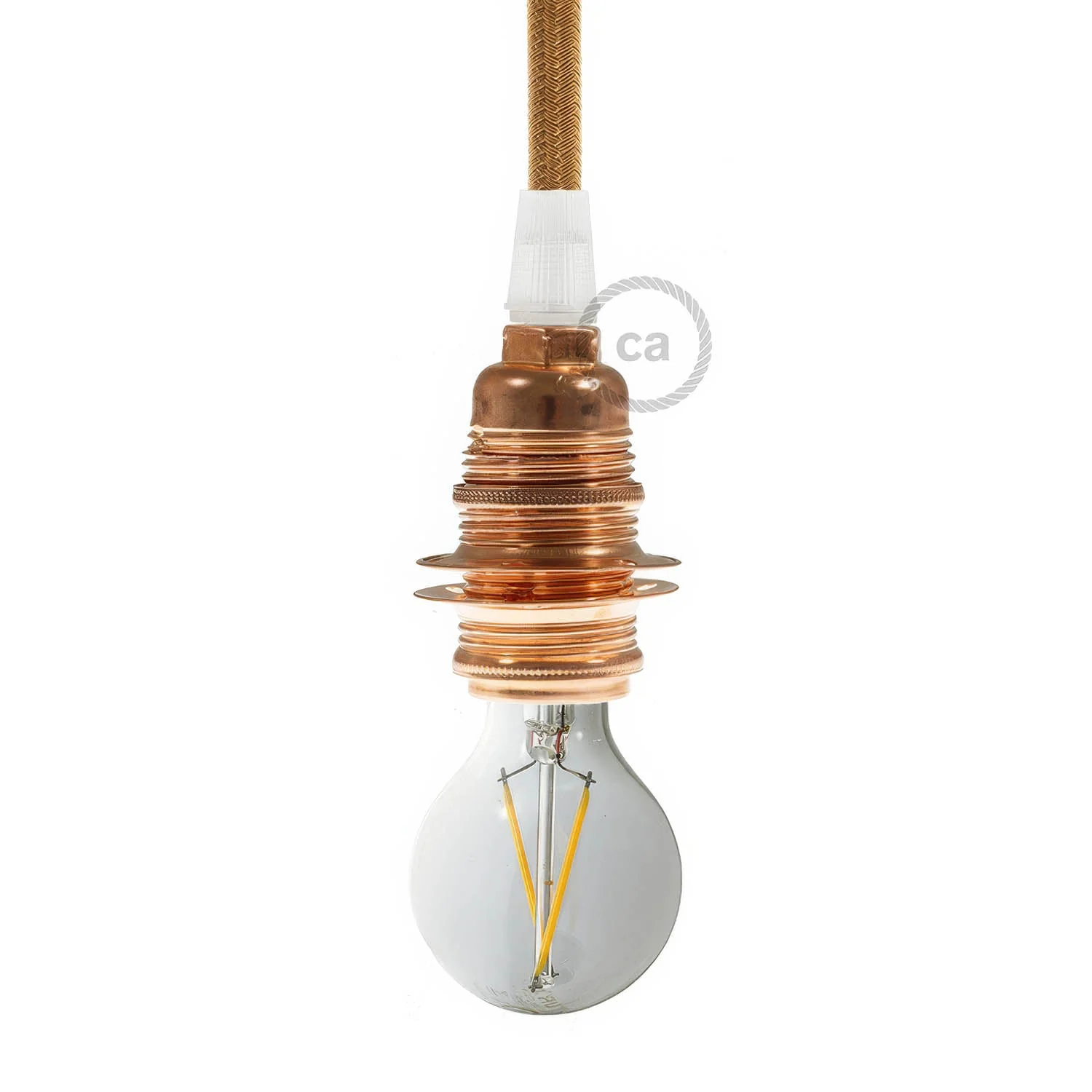

The E14 metal socket kit with double ring is used to assemble a wall, table, or ceiling lamp with a lampshade. The copper finish adds warmth and personality: the rich, textured copper tones soften the metal and evoke a retro elegance that’s perfect for both contemporary and classic interiors.

The E14 metal socket kit with double ring for lampshade is perfect for you if:
- you want to use a shielding element
- you need to use a light bulb with E14 base
- you love a warm and refined metallic finish like copper.

To configure and complete the E14 metal threaded socket kit for lampshade:
- find out how to assemble the light socket with the dedicated tutorial
- complete your lighting installation with components, accessories, light bulbs, and fabric cables by Creative Cables.

Extra tip:
- match the E14 socket with a ceiling canopy in the same metallic finish.

The socket kit requires 3x0.75 cords.

Technical specifications:

Sheath: threaded.
Body: thermoset polyester T230 (Maximum operating temperature).
Rated voltage: 250 Vac.
Rated current: 2 A.
Terminals: screw type for solid or stranded wires from 0.5 ÷ 2.5 mm2.
Mounting: with M10x1 threaded hole.

Dimensions:
Diameter: 28 mm
Height: 58 mm
Ring diameter: 43 mm

Technical specifications for round strain relief:
Cap size: diameter 13 mm - height 17 mm.
Cap material: metal.
Threaded tube size: diameter M10x1 - height 15 mm.
Threaded tube material: metal.

Technical specifications for conical strain relief: Height: 43 mm Diameter: 14.8 mm Material: thermoplastic
