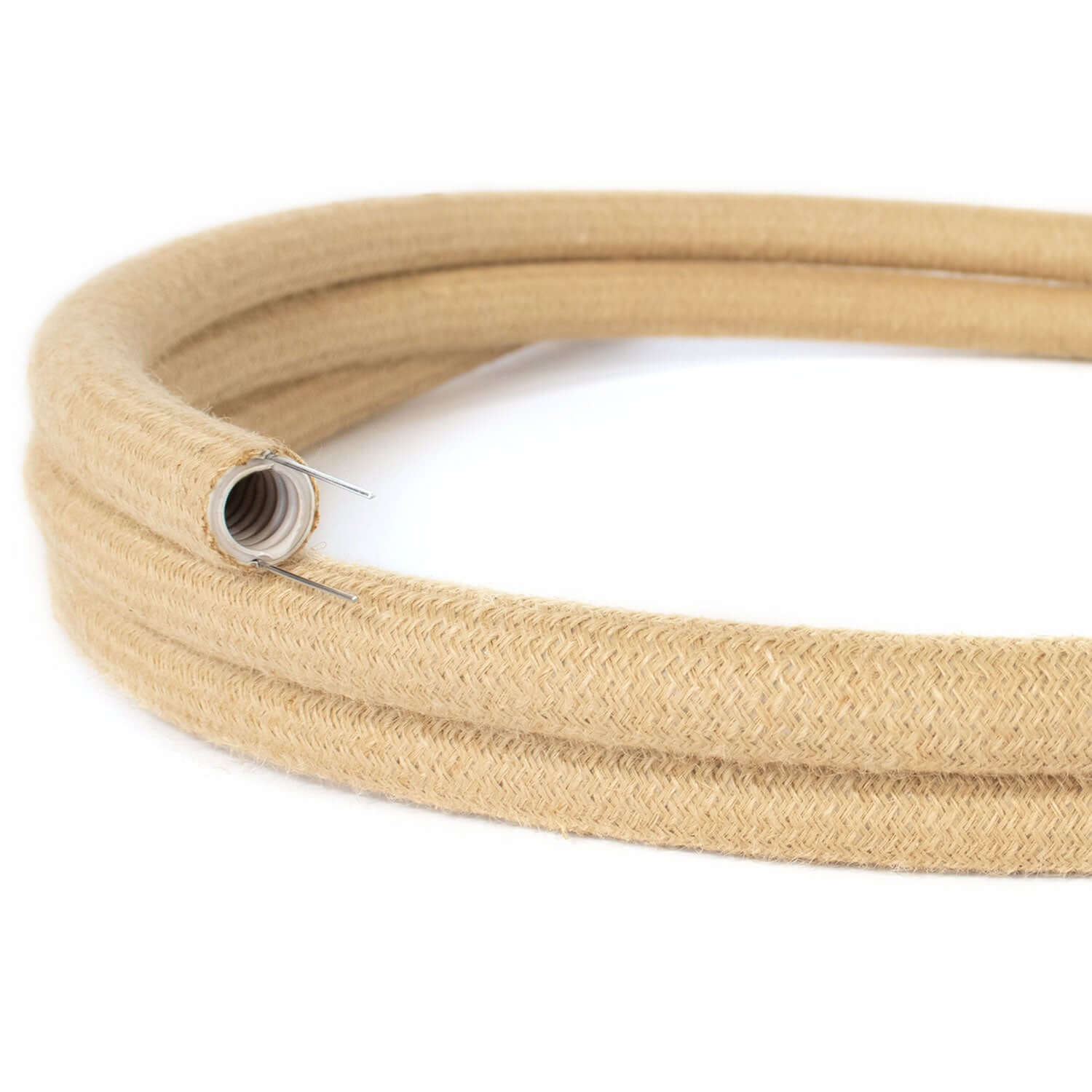

Creative-Tube, 20 mm diameter, covered in RN06 Jute fabric, moldable raceway
Creative-Tube is much more than just a fabric-covered raceway!
In fact, thanks to the metal filaments running its entire length, Creative-Tube can take and hold any shape. The only limit to the applications and uses of Creative-Tube is your imagination!

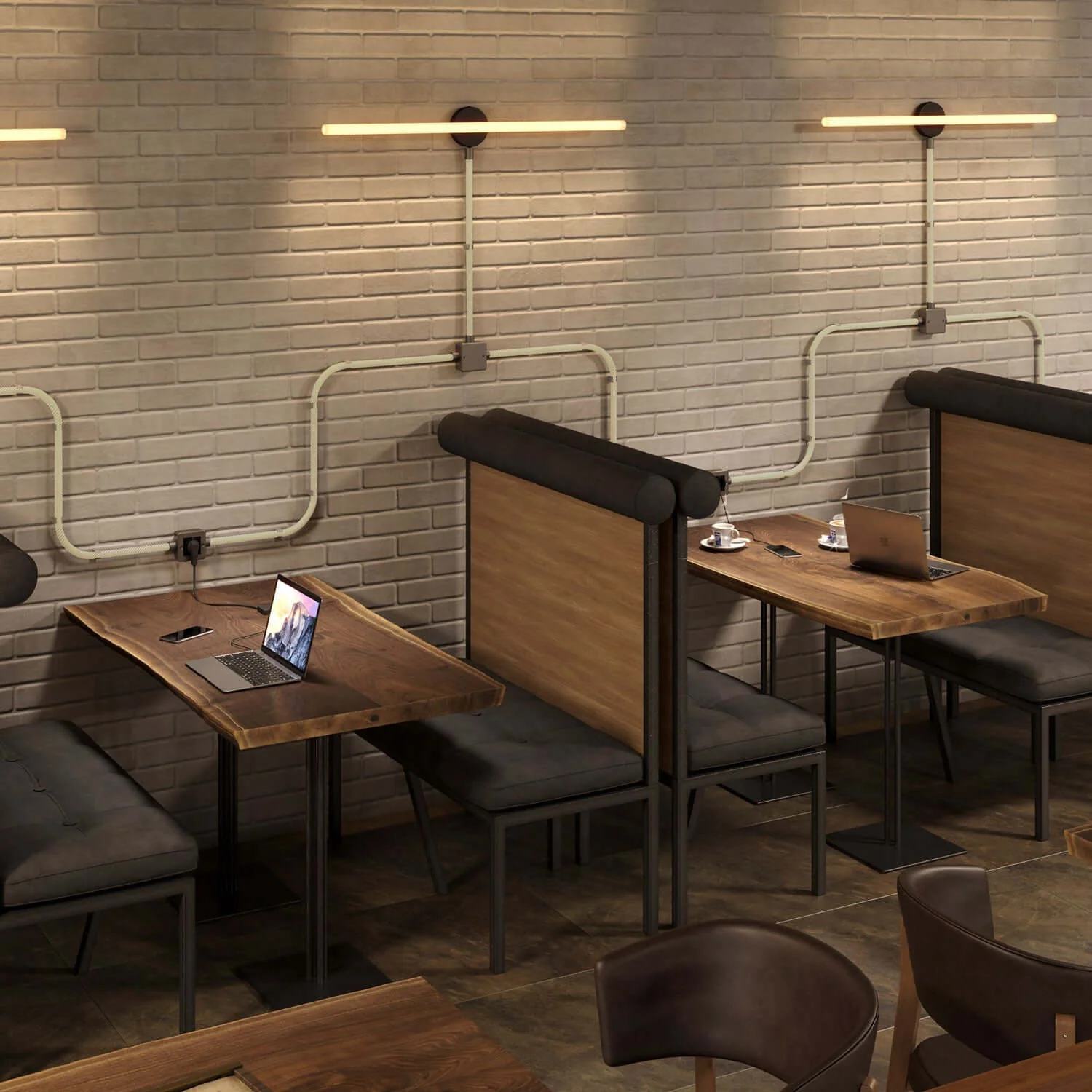

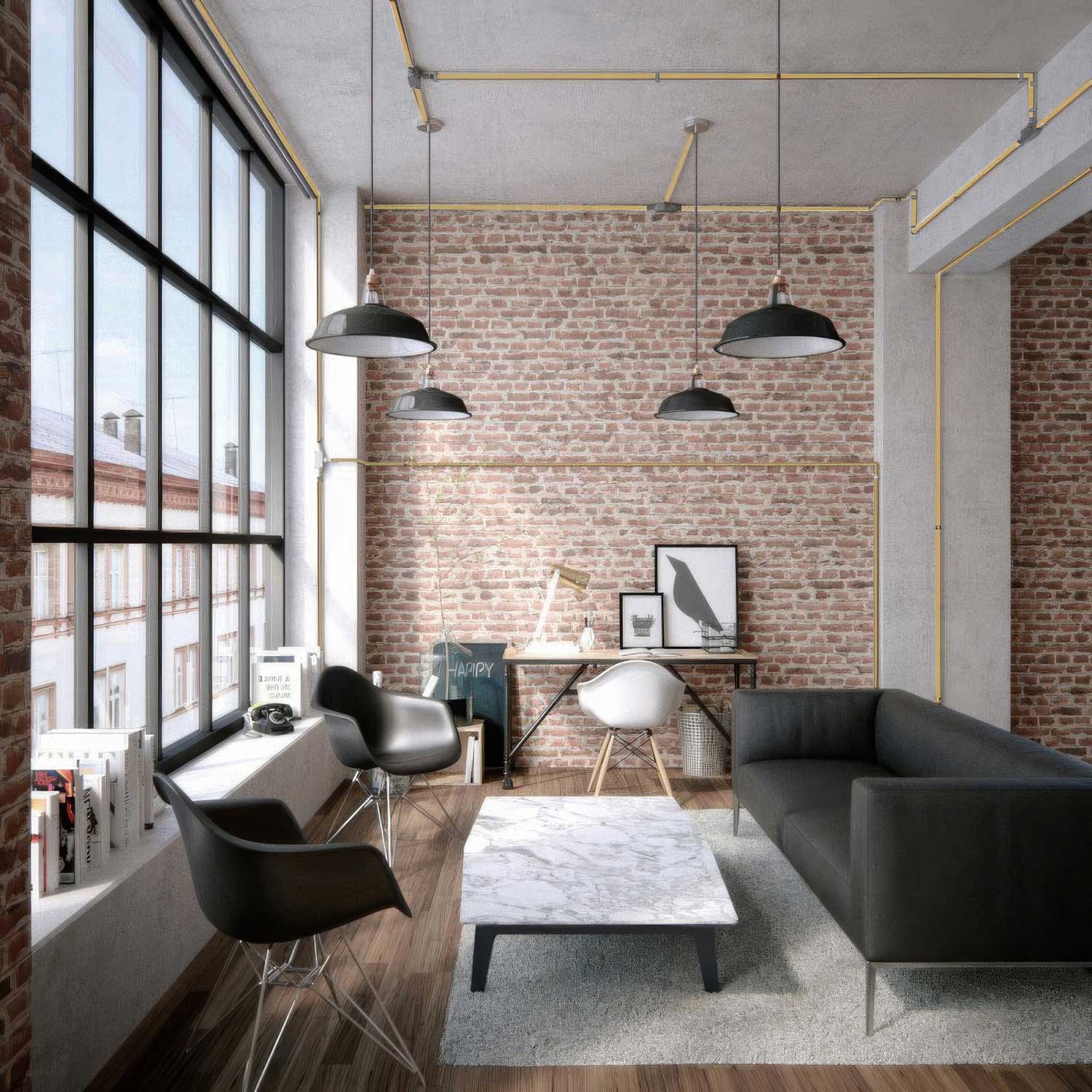

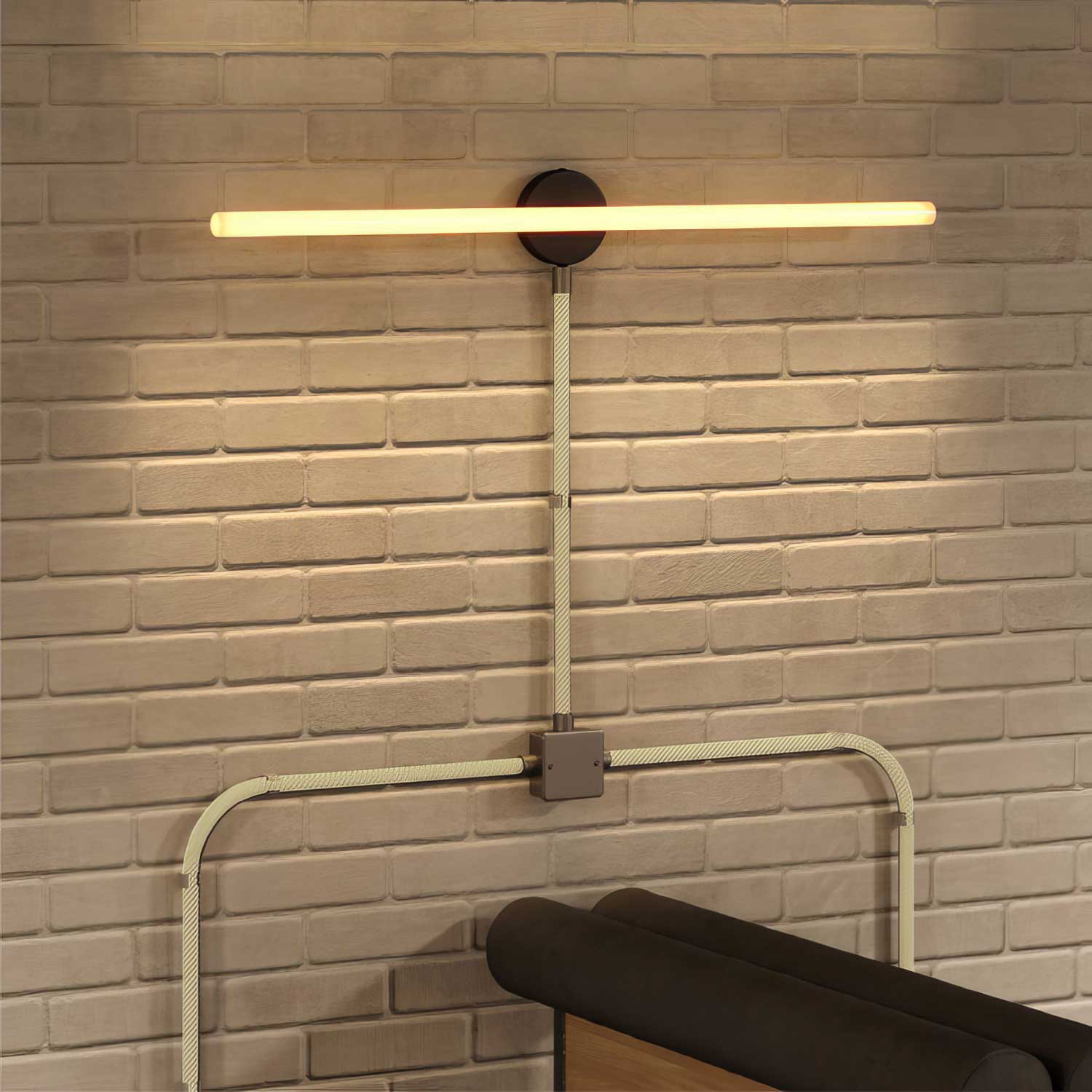

The 20-millimeter diameter Creative-Tube in Jute Effect fabric frees you from unsightly plastic raceways running across your walls, and unleashes your creativity by allowing you to draw traces of color and shape on your walls and ceilings, without the rigid forms of metal tubes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling canopies for wall or ceiling lamps directly
- create a complete electrical system with outlets and switches that’s meant to be shown off, not hidden inside your walls!
Creative-Tubes can be used on exterior walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 standards.
Creative-Tube is sold by the meter; multiple orders will be delivered as a single piece up to a maximum of 30 meters.
Can’t find the Creative-Tube in the color you want? Contact us: we can make it just for you!
Technical specifications:
Classification: 3321
Crush resistance: >750N over 5 cm at 20°C
Impact resistance: (-15°C) after conditioning. 2kg mass hammer
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohms

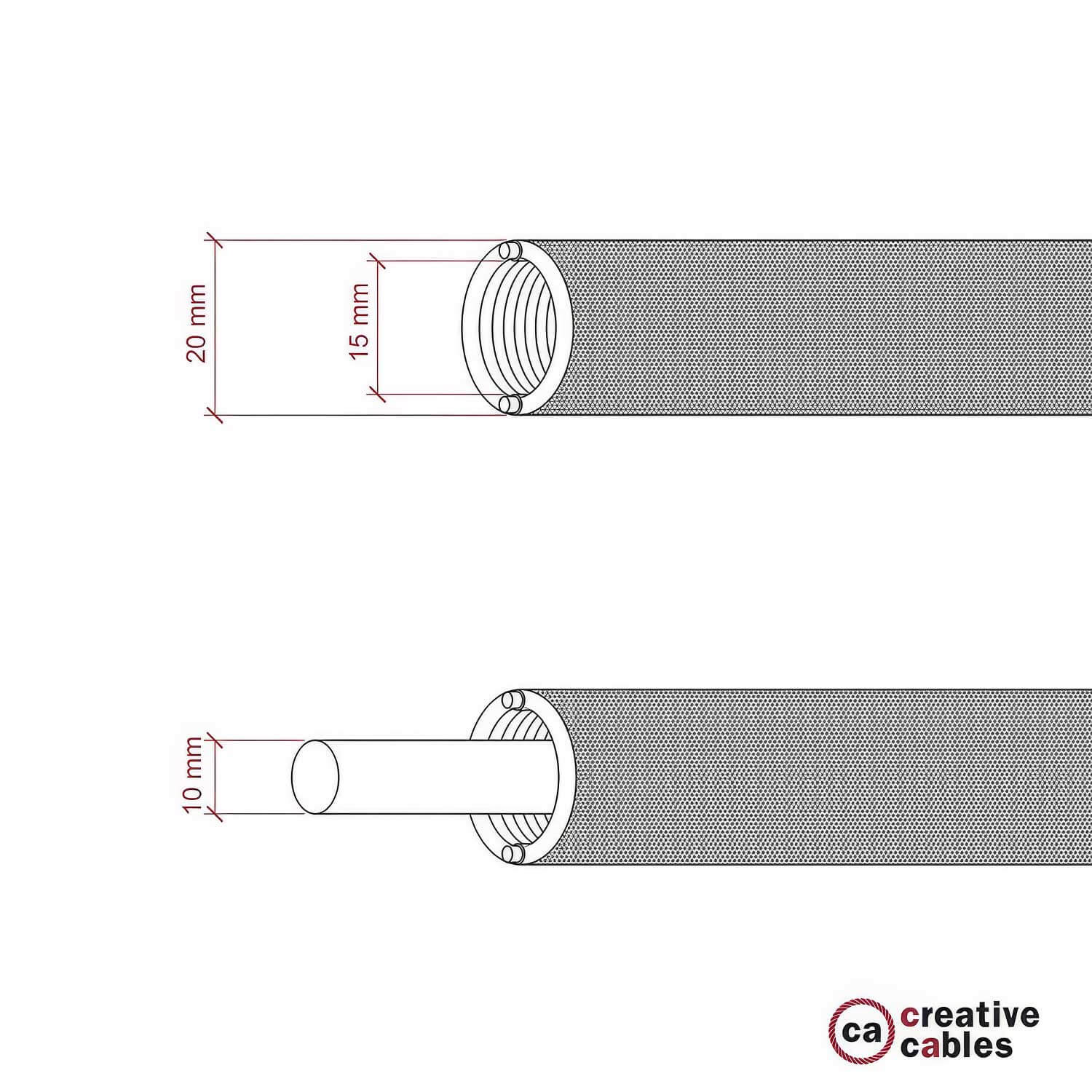

Diameter: 20 millimeters
Color: RN06 Jute
According to CEI 64-8 standards, the maximum usable cross-section of the internal cords in the Creative-Tube can be 10 millimeters, to ensure the cords can be pulled out, for a Tube up to 10 meters long. Up to 20 meters, the maximum thickness will be 9 millimeters.
Due to the very structure of Creative-Tube, once positioned, it is necessary to cut any pieces of metal filament protruding from the edge of the tubing before installing accessories or connecting it to the junction box.
