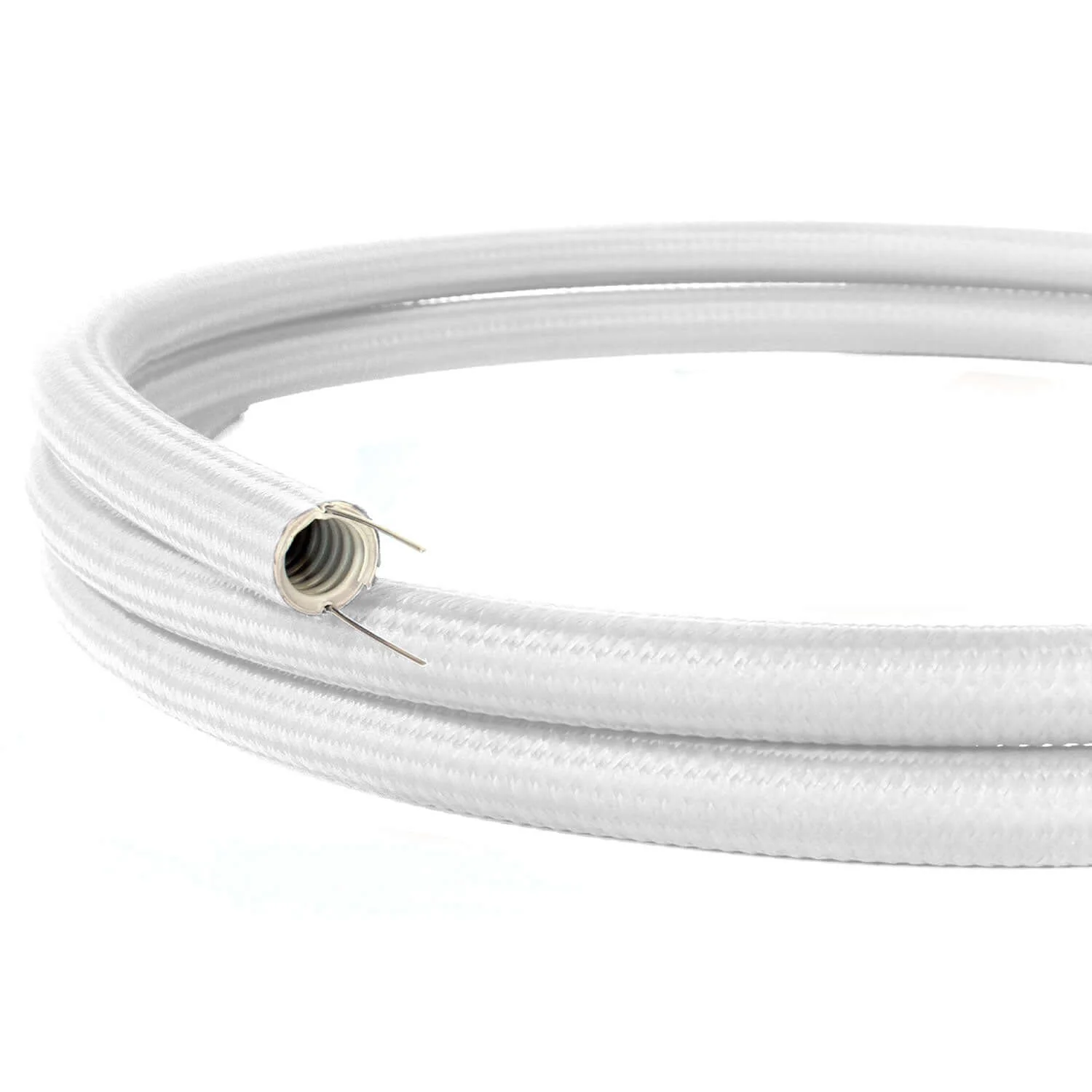

Creative-Tube, 20 mm diameter, covered in Silk-effect RM01 White fabric, moldable raceway
Creative-Tube is much more than a simple fabric-covered raceway: thanks to the metal filaments running its entire length, Creative-Tube can take and hold any shape.
Creative-Tube with a 20 millimeter diameter in glossy White RM01 frees you from ordinary plastic raceways and lets you draw a path on walls and ceilings in any color or shape you want, without the rigidity of classic metal tubes.
Thanks to the unique range of accessories developed by Creative-Cables, you can:
- connect Creative-Tubes to standard junction boxes
- attach ceiling canopies for wall or ceiling lamps directly
- create a complete electrical system with outlets and switches that's perfect to show off, instead of hiding inside the walls!
Creative-Tubes can be used on external walls. The internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the meter; multiple orders will be delivered in a single piece up to a maximum of 30 meters.
Can’t find the Creative-Tube in the color you want? Contact us: we can make it just for you!
Technical specifications:
Classification: 3321
Crush resistance: >750N over 5 cm at 20°C
Impact resistance: (-15°C) after conditioning, 2kg mass hammer
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohms
Diameter: 20 millimeters
Color: RM01 Silk Effect White

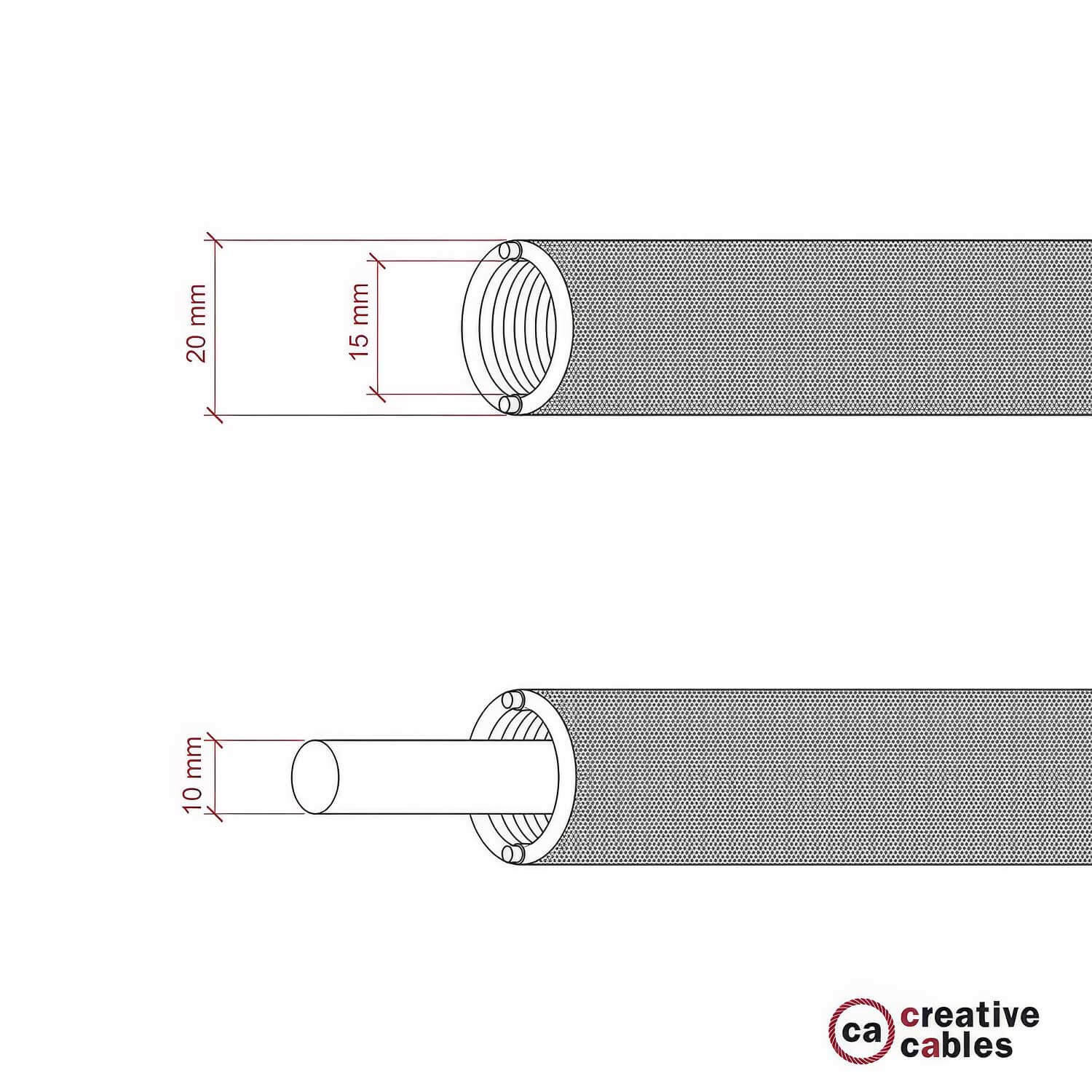

According to CEI 64-8 standards, the maximum usable cross-section of the internal cords in the Creative-Tube can be 10 millimeters, to ensure the cords can be pulled out, for a Tube up to 10 meters long. Up to 20 meters, the maximum thickness will be 9 millimeters.
Due to the very structure of Creative-Tube, once positioned, it is necessary to cut any pieces of metal filament protruding from the edge of the tubing before installing accessories or connecting it to the junction box.
